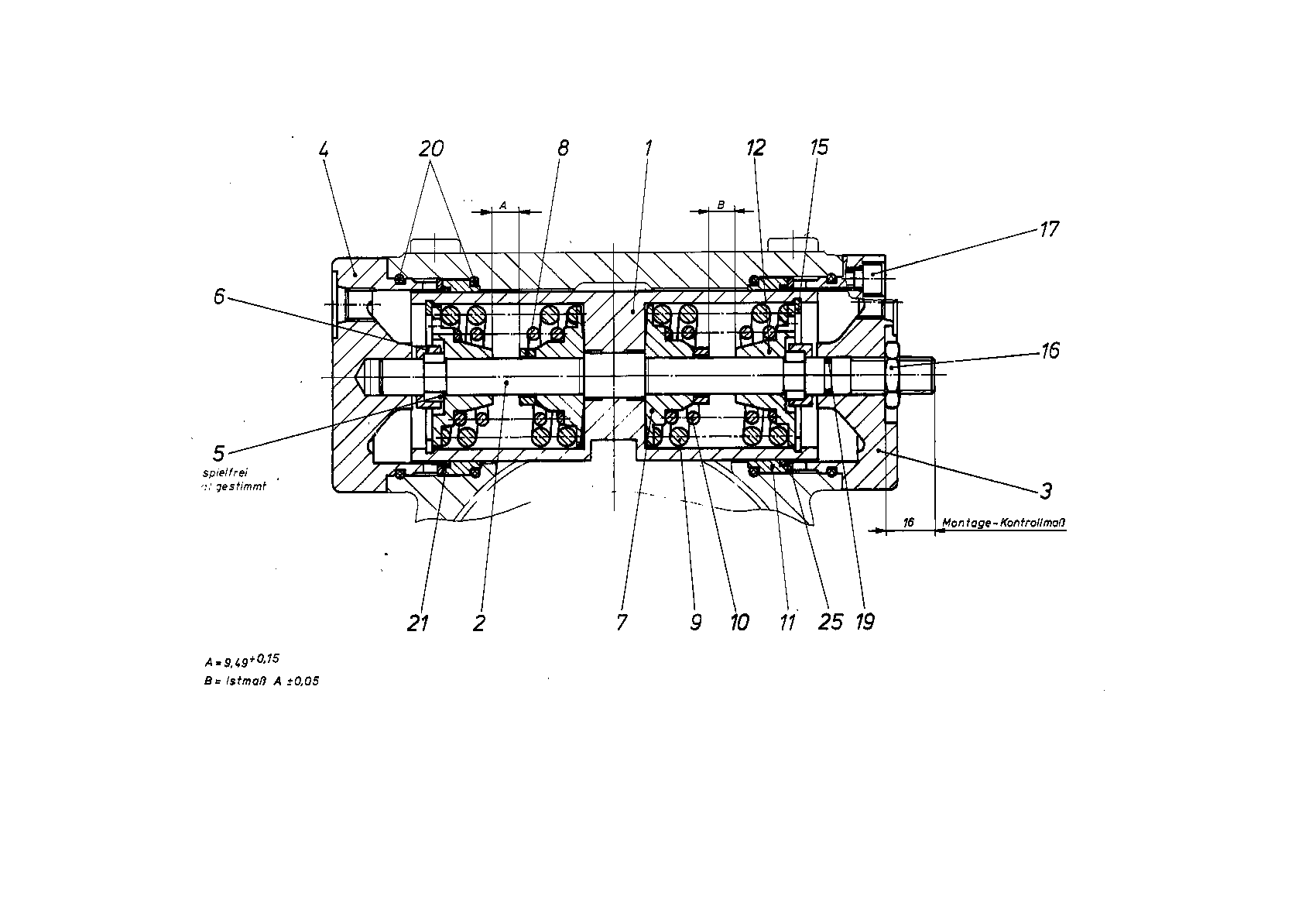

Baugruppe
CONTROLR909613492
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909652074 | POSITIONING PISTON | 1 | ||
| 2 | R909449237 | ROD | 1 | |
| R909652028 | COVER | 1 | ||
| R909652029 | COVER | 1 | ||
| R902015508 | RING | 2 | ||
| R902013493 | RING | 1 | ||
| R902015509 | RING | 1 | ||
| R902015510 | RING | 1 | ||
| R902015511 | RING | 1 | ||
| R902015512 | RING | 1 | ||
| R902015514 | RING | 1 | ||
| R902015513 | RING | 1 | ||
| 6 | R909400470 | SLEEVE | 2 | |
| R909449243 | SPRING DISK | 2 | ||
| R909435635 | SPACER RING | 2 | ||
| R909435636 | SPACER RING | 1 | ||
| R909445782 | SPACER RING | 1 | ||
| R909445783 | SPACER RING | 1 | ||
| R909445784 | SPACER RING | 1 | ||
| R909445785 | SPACER RING | 1 | ||
| R909436327 | COMPRESSION SPRING | 2 | ||
| R909436329 | COMPRESSION SPRING | 2 | ||
| 11 | R909449799 | BUSHING | 2 | |
| R909449244 | SPRING DISK | 2 | ||
| R909084556 | RETAINING RING | 2 | ||
| R909154918 | HEXAGON NUT | 1 | ||
| 17 | R909083019 | SOCKET HEAD CAP SCREW | 8 | |
| 19 | R909085709 | O-RINGD | 1 | |
| R902600658 | O-RINGD | 4 | ||
| R909831468 | ROD SEALD | 2 | ||
| 25 | R909652030 | BACKUP RING | 2 |
