Baugruppe

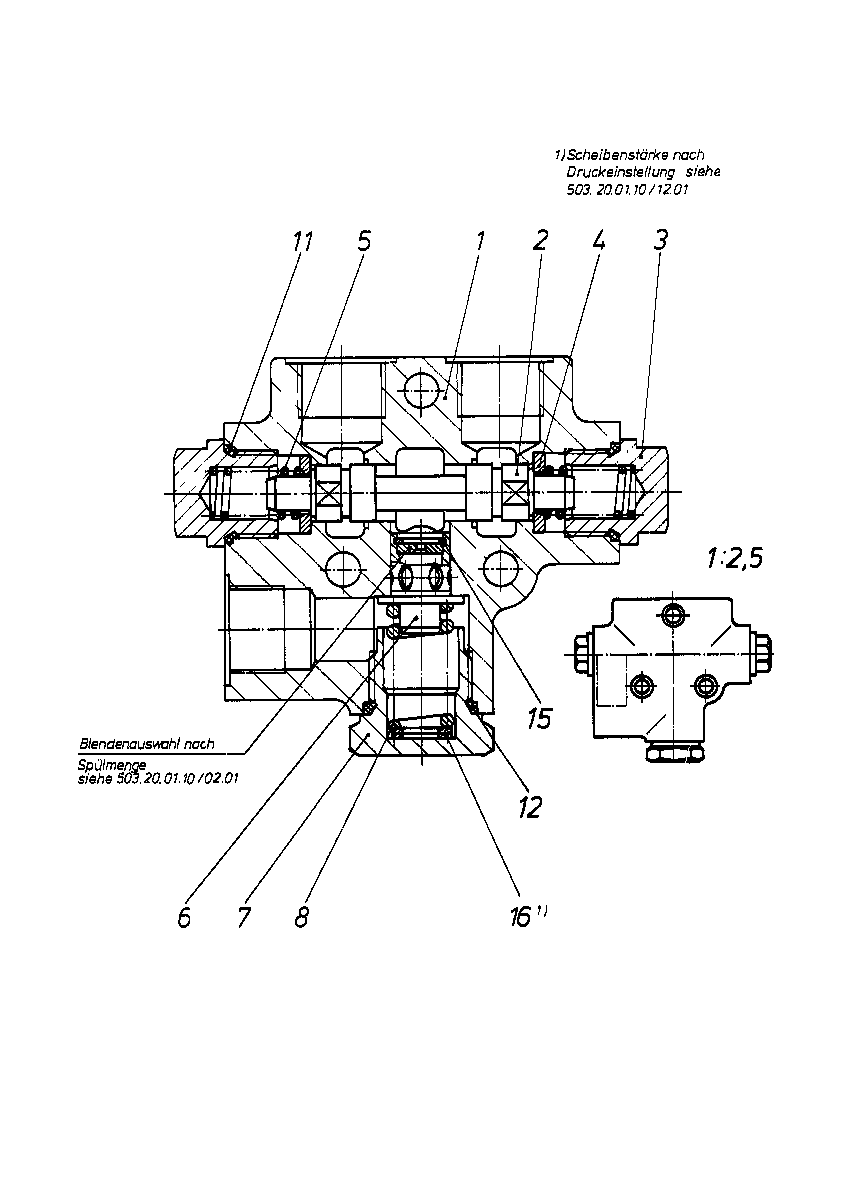

FLUSH/BOOST PRESSURE VALVER909613801
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909921498 | HOUSING | 1 | |
| 2 | R909436176 | FLUSHING PISTON | 1 | |
| 3 | R909402694 | SCREW PLUG | 2 | |
| R909431642 | WASHER | 2 | ||
| 5 | R909402696 | COMPRESSION SPRING | 2 | |
| 6 | R909431306 | VALVE SPOOL | 1 | |
| 7 | R909435052 | SCREW PLUG | 1 | |
| 8 | R909078142 | COMPRESSION SPRING | 1 | |
| 11 | R909083758 | O-RINGD | 2 | |
| R909083761 | O-RINGD | 1 | ||
| R909083379 | RETAINING RING | 1 | ||
| 16 | R909150369 | SHIM RING | 1 | |
| 16 | R909150370 | SHIM RING | 1 | |
| 16 | R909153402 | SHIM RING | 1 |
