Baugruppe

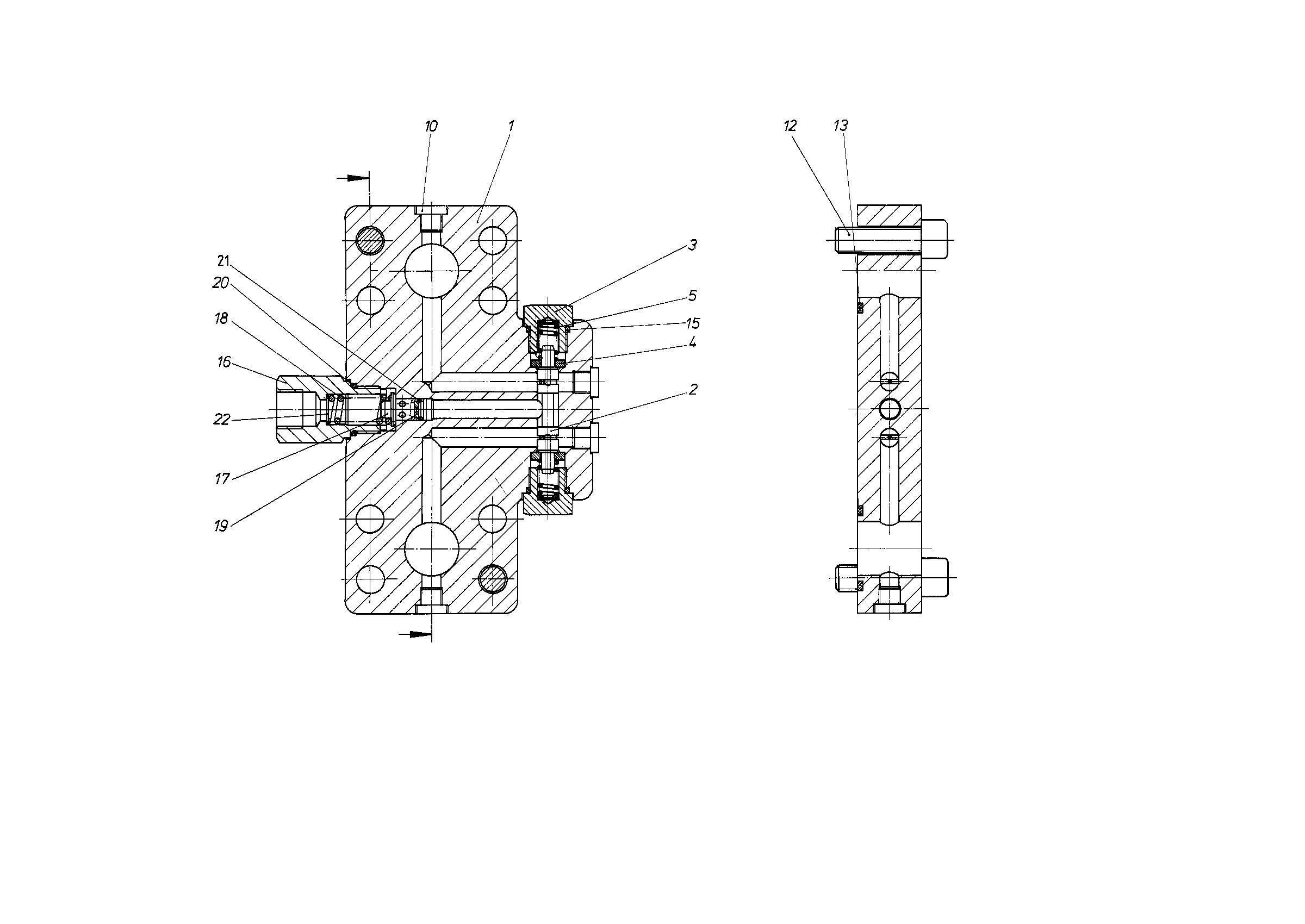

FLUSHING VALVER909613811
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909444067 | FLUSHING VALVE PLATE | 1 | ||
| 2 | R909432410 | FLUSHING PISTON | 1 | |
| 3 | R909417111 | SCREW PLUG | 2 | |
| R909417112 | WASHER | 2 | ||
| 5 | R909417113 | COMPRESSION SPRING | 2 | |
| R909153364 | SCREW PLUGD | 4 | ||
| R909083091 | SOCKET HEAD CAP SCREW | 2 | ||
| R909086659 | O-RINGD | 2 | ||
| 15 | R909086435 | O-RINGD | 2 | |
| 16 | R909444073 | SCREW PLUG | 1 | |
| R909430234 | VALVE SPOOL | 1 | ||
| R909416687 | COMPRESSION SPRING | 1 | ||
| R909444361 | ORIFICE | 1 | ||
| 20 | R909083758 | O-RINGD | 1 | |
| 21 | R909153012 | RETAINING RING | 1 | |
| 22 | R909157079 | SHIM RING | 1 | |
| 22 | R909157965 | SHIM RING | 1 | |
| 22 | R909157966 | SHIM RING | 1 |
