Baugruppe

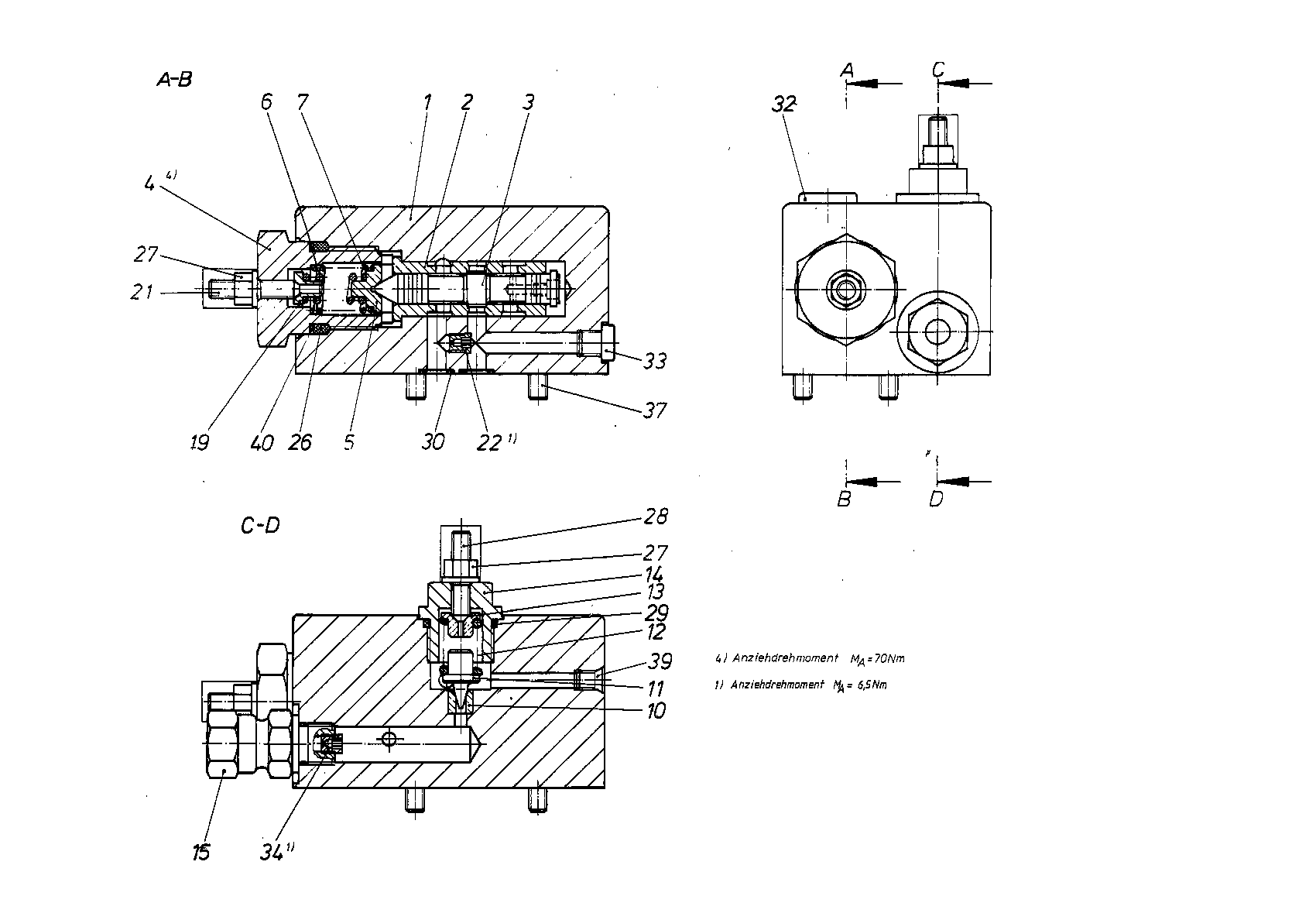

SEQUENCE VALVER909613815
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909445871 | HOUSING | 1 | ||
| 2 | R909431037 | CONTROL SLEEVE | 1 | |
| R909424353 | CONTROL PISTON | 1 | ||
| R909432852 | SCREW PLUG | 1 | ||
| 5 | R909418698 | SPRING DISK | 1 | |
| 6 | R909432906 | COMPRESSION SPRING | 1 | |
| 7 | R909410091 | COMPRESSION SPRING | 1 | |
| 10 | R909415904 | BUSHING | 1 | |
| 11 | R902011673 | VALVE CONE | 1 | |
| 12 | R909431771 | COMPRESSION SPRING | 1 | |
| R909449205 | SPRING DISK | 1 | ||
| 14 | R909443089 | SCREW PLUG | 1 | |
| 15 | R909415903 | THREADED FASTENER | 1 | |
| R909422325 | SPRING DISK | 1 | ||
| 21 | R909421402 | SETSCREW | 1 | |
| 22 | R909156493 | NOZZLE | 1 | |
| 26 | R909083797 | O-RINGD | 1 | |
| R909152425 | SEALING NUTD | 2 | ||
| 28 | R909154140 | SETSCREW | 1 | |
| 29 | R909083758 | O-RINGD | 1 | |
| R909086498 | O-RINGD | 3 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| 34 | R909156493 | NOZZLE | 1 | |
| R909083029 | SOCKET HEAD CAP SCREW | 4 | ||
| 39 | — | DOUBLE BREAK-OFF PLUG | 1 | |
| 40 | R909087626 | BACKUP RINGD | 1 |
