Baugruppe

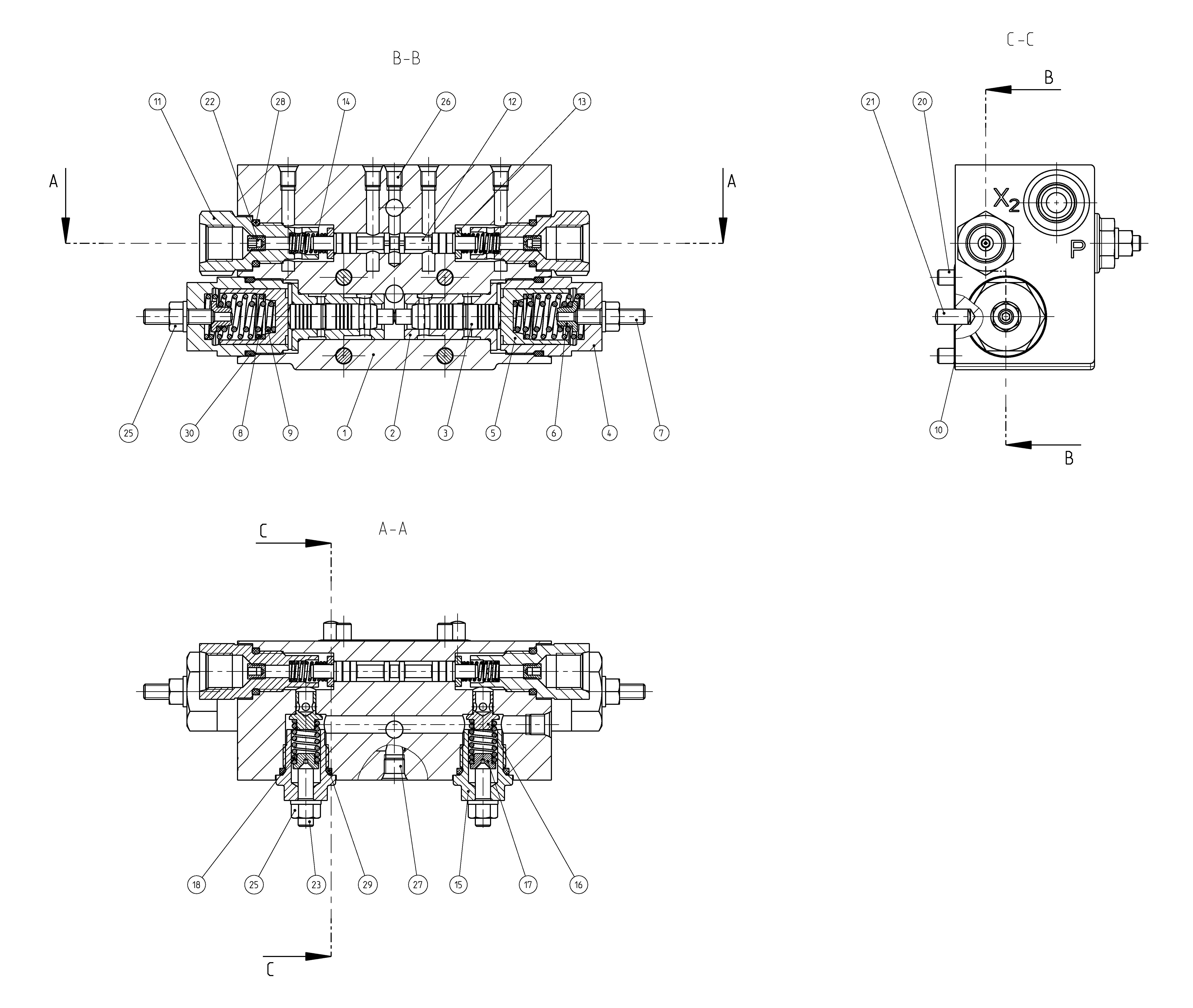

TORQUE-PRESSURE CONTROL VALVER909613830
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909435007 | HOUSING | 1 | ||
| R909430853 | CONTROL SLEEVE | 2 | ||
| R909435555 | PISTON | 2 | ||
| R909422551 | SCREW PLUG | 2 | ||
| R909422552 | SPRING BUSH | 2 | ||
| R902215679 | SPRING DISK | 2 | ||
| R909414604 | SETSCREW | 2 | ||
| R909431043 | COMPRESSION SPRING | 2 | ||
| R909408166 | COMPRESSION SPRING | 2 | ||
| R902603829 | SEALD | 1 | ||
| R909426550 | THREADED REDUCING STUD | 2 | ||
| R909425999 | CONTROL PISTON | 1 | ||
| R909426001 | WASHER | 2 | ||
| R909080802 | COMPRESSION SPRING | 2 | ||
| R909424573 | SCREW PLUG | 2 | ||
| R909424575 | VALVE SPOOL | 2 | ||
| R909424574 | SPRING DISK | 2 | ||
| R909424796 | COMPRESSION SPRING | 2 | ||
| R909083029 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009665 | STRAIGHT PIN | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R909153284 | SETSCREW | 2 | ||
| R909152425 | SEALING NUT | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083753 | O-RINGD | 2 | ||
| R909086435 | O-RINGD | 2 | ||
| R909083764 | O-RINGD | 2 |
