Baugruppe

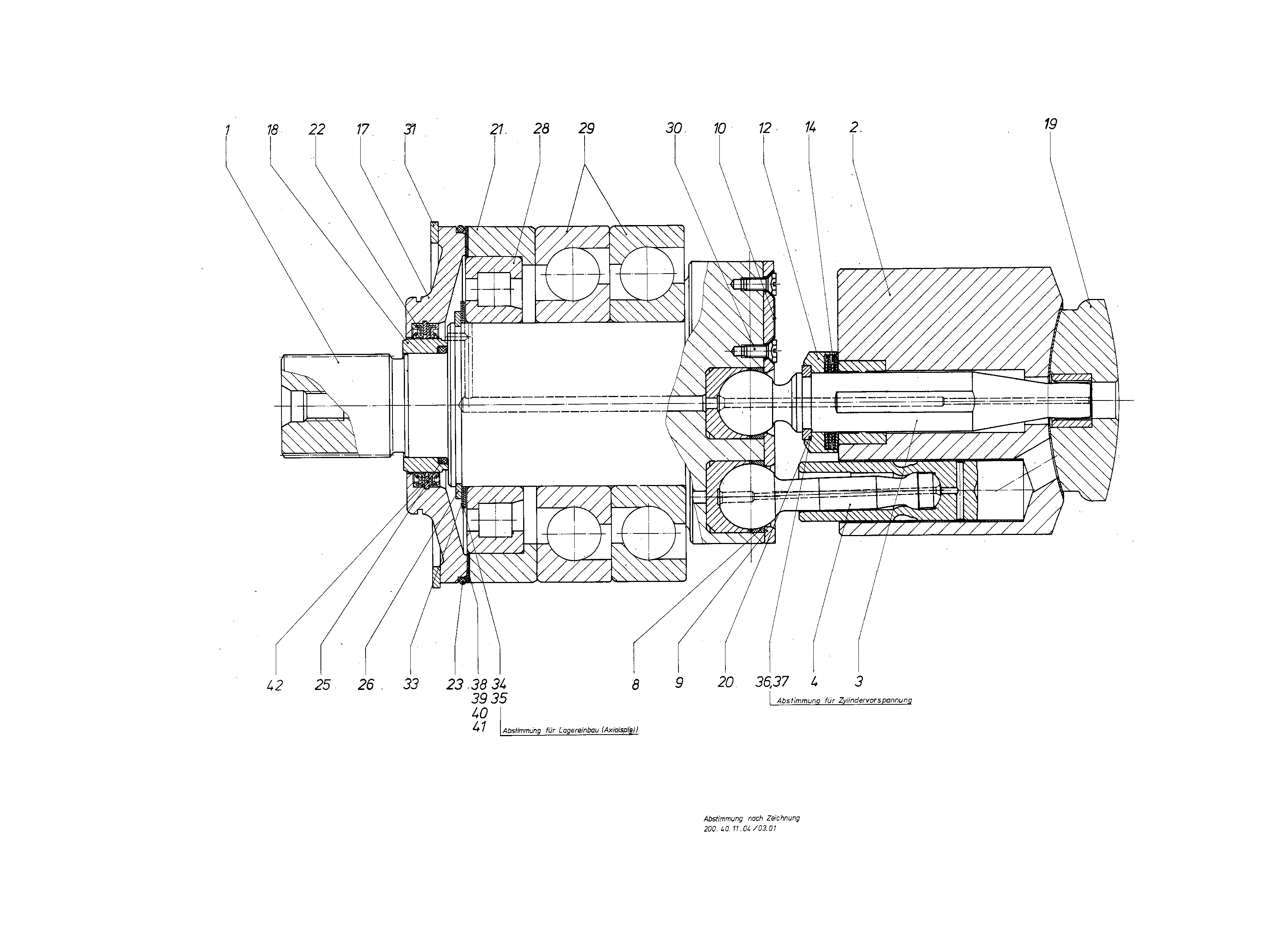

ROTARY GROUPR910581054
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 40 | R910536555 | DRIVE SHAFT | 1 | |
| 40 | R910506001 | CYLINDER LINER | 1 | |
| 40 | R910545228 | PISTON | 7 | |
| R910529796 | CONTROL LENS Stückliste der Baugruppe →L | 1 | ||
| 50 | R910505994 | CENTER PIN | 1 | |
| 50 | R910506362 | HOLDING SLEEVE | 8 | |
| 50 | R910506354 | BACKPLATE | 1 | |
| 51 | R910512265 | SPRING DISK | 1 | |
| 51 | R910512249 | DISC SPRING | 4 | |
| 51 | R910667412 | SEALING FLANGE | 1 | |
| 51 | R910585157 | BUSHING | 1 | |
| 52 | R910506818 | RING | 1 | |
| 52 | R910646636 | BEARING RING | 1 | |
| 53 | R902469476 | COUNTERSUNK-HEAD SCREW | 14 | |
| 62 | R910667447 | SHAFT SEALING RINGD | 2 | |
| 62 | R910103195 | O-RINGD | 1 | |
| 62 | R910514594 | O-RINGD | 1 | |
| 62 | R910105872 | RETAINING RING | 1 | |
| 62 | R910784435 | CYL. ROLLER BEARING | 1 | |
| 62 | R910602213 | ANG. CONTACT BALL BEARING | 2 | |
| 63 | R910127698 | RETAINING RING | 1 | |
| 63 | R910432989 | SHIM RING | 1 | |
| 63 | R909087601 | SHIM RING | 2 | |
| 63 | R910486795 | SHIM RING | 2 | |
| 63 | R910534838 | SHIM RING | 2 | |
| 63 | R910514756 | SHIM RING | 1 | |
| 63 | R910625604 | SHIM RING | 1 | |
| 63 | R910625612 | SHIM RING | 1 | |
| 64 | R910625647 | SHIM RING | 2 | |
| 64 | R910189057 | RETAINING RING | 1 |
