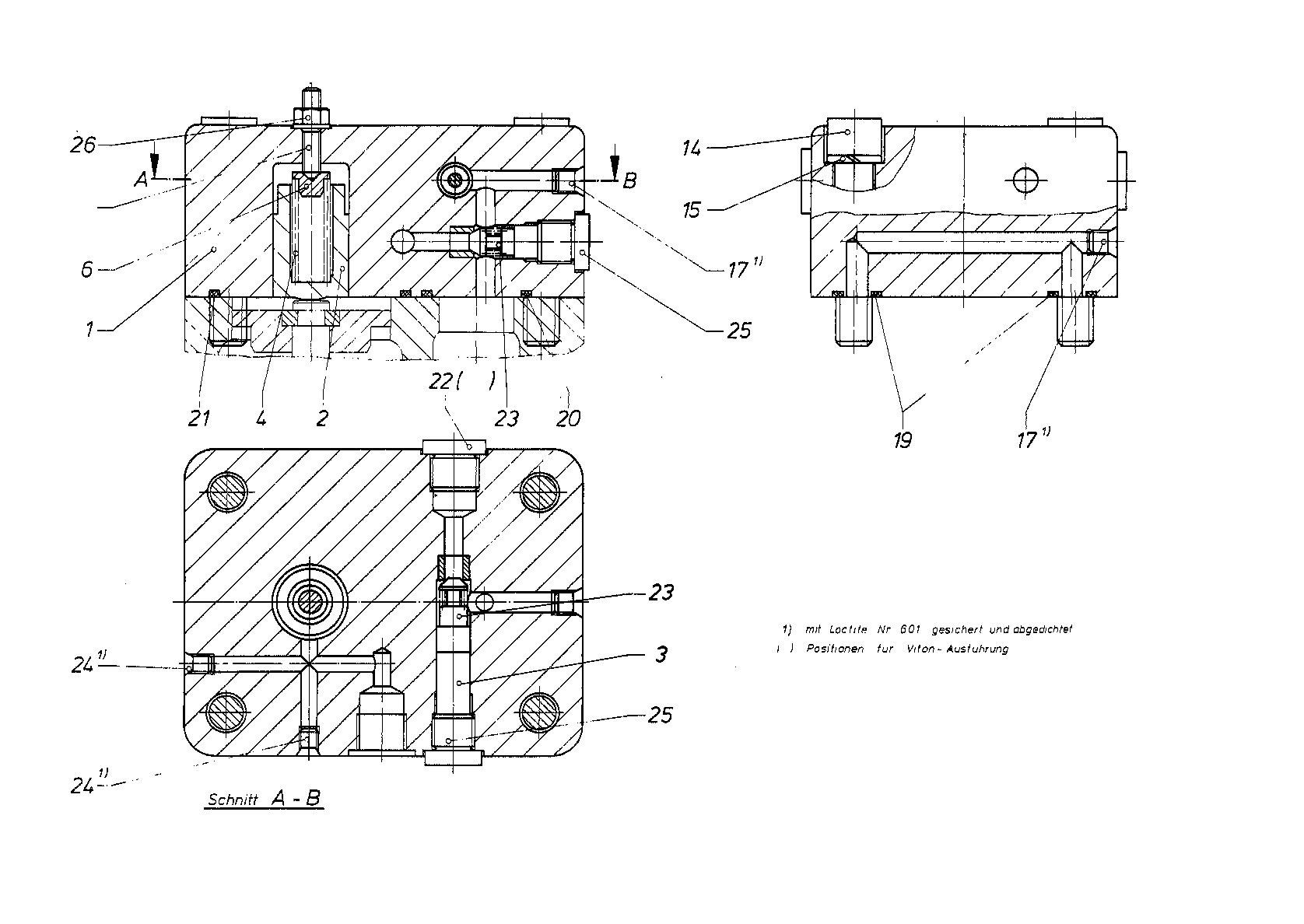

Baugruppe
COVERR910599034
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 50 | R910598992 | COVER | 1 | |
| 50 | R910583766 | CONTROL PISTON | 1 | |
| 50 | R910805947 | SPACER | 1 | |
| 50 | R910584622 | COMPRESSION SPRING | 1 | |
| 50 | R910571512 | SPRING DISK | 1 | |
| 61 | R910109835 | SOCKET HEAD CAP SCREW | 4 | |
| 61 | R910100773 | SPRING LOCK WASHER | 4 | |
| 61 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 61 | R910977037 | O-RINGD | 2 | |
| 62 | R910513555 | O-RINGD | 1 | |
| 62 | R910342157 | O-RINGD | 1 | |
| 62 | R909153816 | SCREW PLUGD | 1 | |
| 62 | R910579718 | MOUNTING KIT | 2 | |
| 62 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 62 | R909151979 | SCREW PLUGD | 2 | |
| 62 | R909152425 | SEALING NUTD | 1 | |
| 62 | R909154140 | SETSCREW | 1 |
