Baugruppe

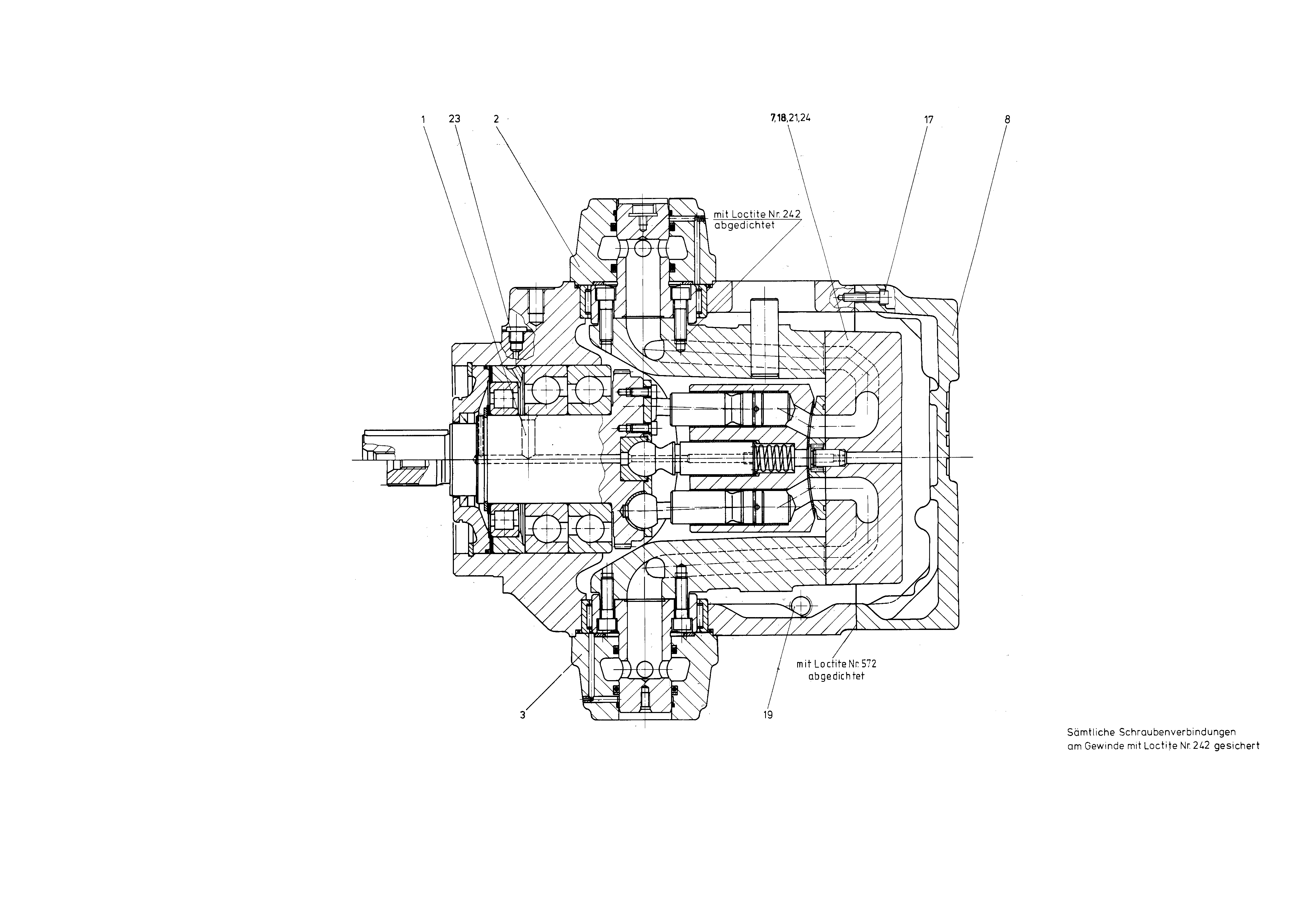

BASE UNITR910696358
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910696307 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| 2 | R910657905 | PIPE FLANGE Stückliste der Baugruppe →L | 1 | |
| 3 | R910401986 | PIPE FLANGE Stückliste der Baugruppe →L | 1 | |
| R910401935 | CONTROL PLATE | 1 | ||
| 8 | R910401919 | HOUSING COVER | 1 | |
| R910109495 | SOCKET HEAD CAP SCREW | 14 | ||
| 18 | R902572931 | SOCKET HEAD CAP SCREW | 8 | |
| 19 | R909151694 | SCREW PLUGD | 4 | |
| 21 | R910602051 | STRAIGHT PIN | 2 | |
| R909151979 | SCREW PLUGD | 1 | ||
| 24 | R910402222 | SEAL RINGD | 4 |
