Baugruppe

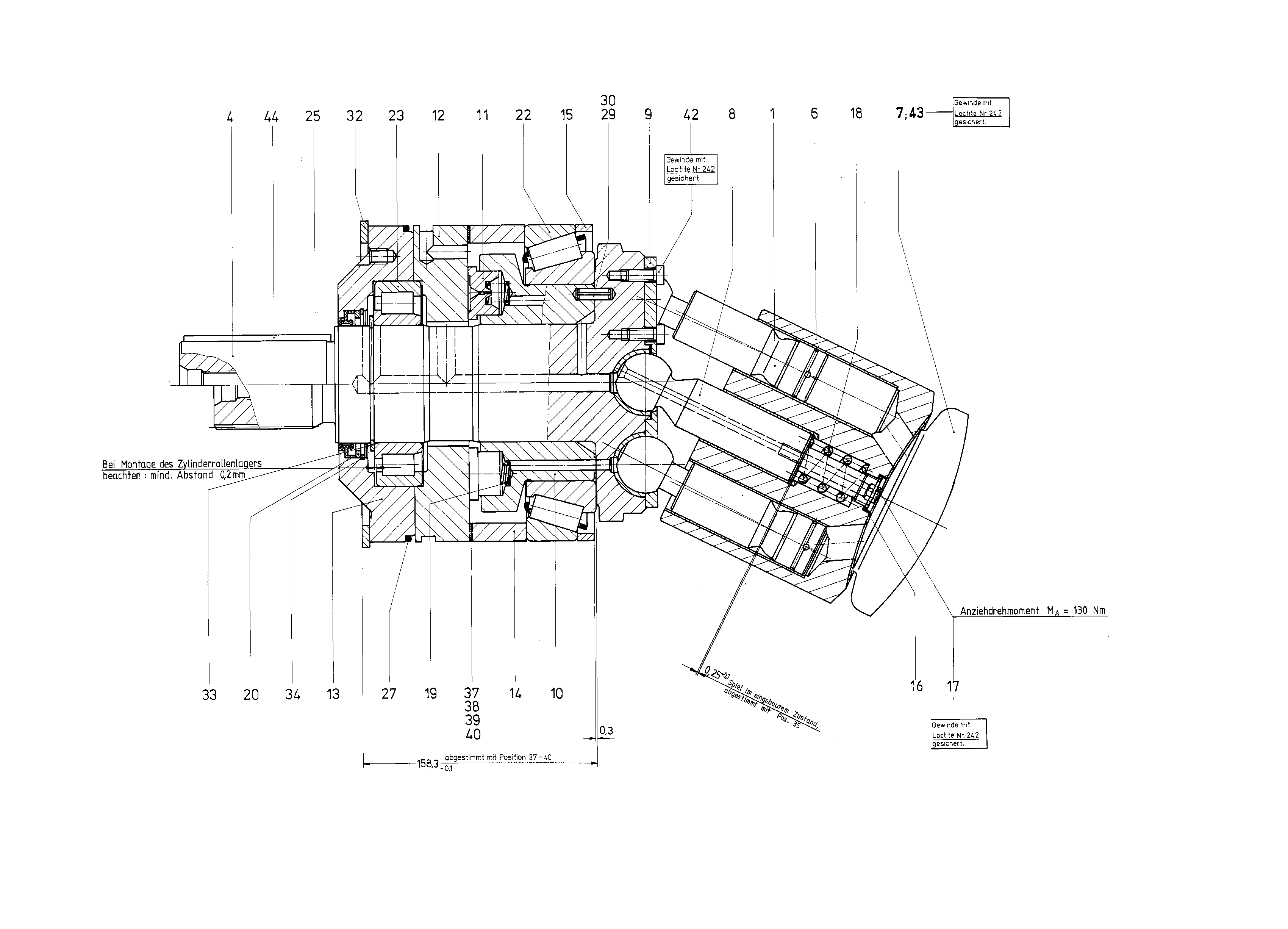

ROTARY GROUPR910742198
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910742457 | PISTON | 7 | ||
| R910913929 | DRIVE FLANGE | 1 | ||
| R910620386 | CYLINDER | 1 | ||
| R910903375 | CONTROL LENS | 1 | ||
| R910795127 | THRUST JOURNAL | 1 | ||
| R902556371 | RETAINING PLATE | 1 | ||
| R910742406 | PAD SUPPORT WITH SEAL | 1 | ||
| R910742465 | PAD | 7 | ||
| R910742376 | SLIDING DISC | 1 | ||
| R910906701 | SEALING FLANGE | 1 | ||
| R910742414 | SPACER RING | 1 | ||
| R910742422 | RING | 1 | ||
| R910941891 | SHIM RING | 1 | ||
| R910941867 | SPACER SCREW | 1 | ||
| R910678775 | COMPRESSION SPRING | 1 | ||
| R910717207 | COMPRESSION SPRING | 7 | ||
| R910742449 | INTERMEDIATE RING | 1 | ||
| R902650818 | TAPERED-ROLLER BEARING | 1 | ||
| R910742481 | CYL. ROLLER BEARING | 1 | ||
| R910791997 | SHAFT SEALING RINGD | 1 | ||
| R910636355 | O-RINGD | 1 | ||
| R910117676 | SLOTTED SPRING PIN | 1 | ||
| R910073598 | SLOTTED SPRING PIN | 1 | ||
| R910513202 | RETAINING RING | 1 | ||
| R910188026 | RETAINING RING | 1 | ||
| R910742511 | SNAP RING | 1 | ||
| R910621498 | SHIM RING | 1 | ||
| R910516538 | SHIM RING | 1 | ||
| R910516511 | SHIM RING | 1 | ||
| R910516503 | SHIM RING | 2 | ||
| R910110167 | SOCKET HEAD CAP SCREW | 14 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910103586 | PARALLEL KEY | 1 |
