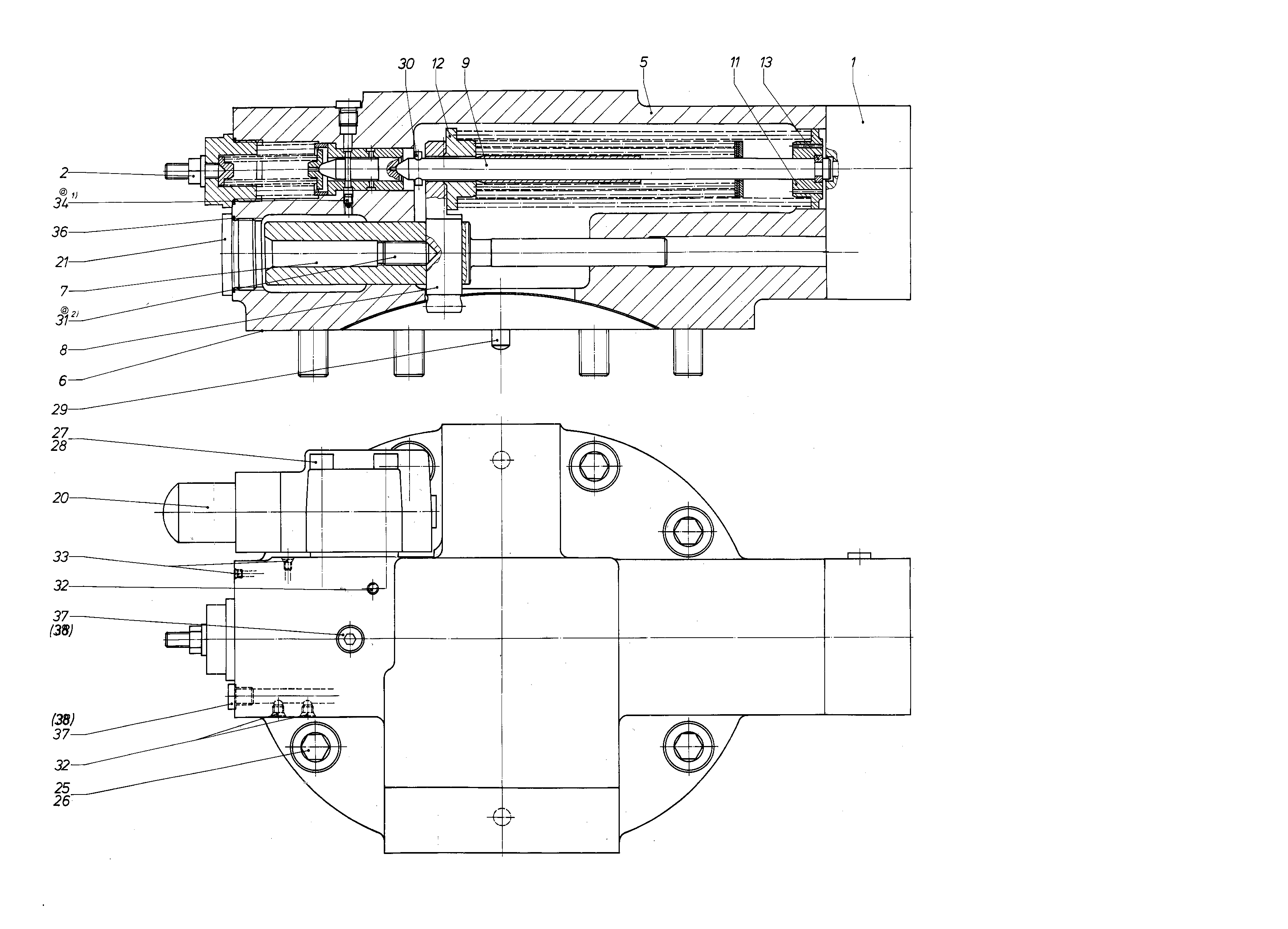

Baugruppe
CONTROLR910800155
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 40 | R910579971 | COVER Stückliste der Baugruppe →L | 1 | |
| 40 | R910579963 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| 50 | R910800171 | COVER PLATE | 1 | |
| 50 | R910580988 | SEALD | 1 | |
| 50 | R910581119 | POSITIONING PISTON | 1 | |
| 50 | R902413795 | POSITIONING STUD | 1 | |
| 50 | R910585475 | GUIDE ROD | 1 | |
| 51 | R910581178 | SPRING DISK | 1 | |
| 51 | R910581186 | SPRING DISK | 1 | |
| 51 | R910581267 | RING | 1 | |
| 52 | R910583758 | SCREW PLUG | 1 | |
| 62 | R901327580 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | |
| 62 | R910110043 | SOCKET HEAD CAP SCREW | 6 | |
| 62 | R910100838 | SPRING LOCK WASHER | 6 | |
| 62 | R910295396 | SOCKET HEAD CAP SCREW | 4 | |
| 62 | R910100765 | SPRING LOCK WASHER | 4 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R910529206 | SLOTTED SPRING PIN | 1 | |
| 63 | R910533823 | SETSCREW | 1 | |
| 63 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 63 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| 63 | R910515582 | NOZZLE | 1 | |
| 63 | R910586897 | O-RINGD | 1 | |
| 63 | R909151692 | SCREW PLUGD | 2 |
