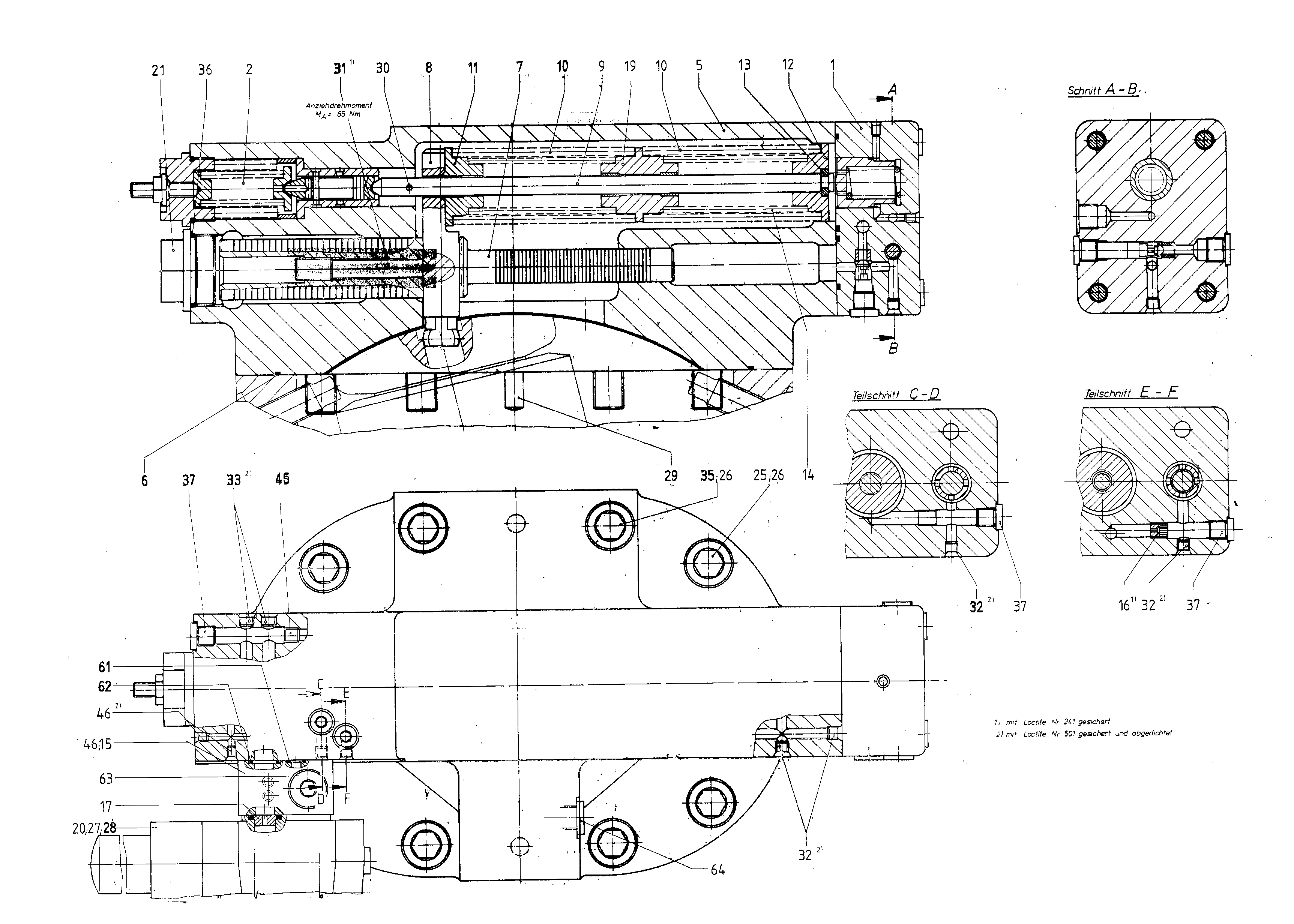

Baugruppe
CONTROLR910800889
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910845787 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910848875 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910800199 | CONNECTION PLATE | 1 | ||
| R910945102 | O-RINGD | 1 | ||
| R910842001 | POSITIONING PISTON | 1 | ||
| R902413797 | POSITIONING STUD | 1 | ||
| R910583979 | GUIDE ROD | 1 | ||
| R910597007 | COMPRESSION SPRING | 2 | ||
| R910842397 | SPRING DISK | 1 | ||
| R910842419 | SPRING DISK | 1 | ||
| R910583855 | RING | 1 | ||
| R910842389 | COMPRESSION SPRING | 2 | ||
| R910827762 | INTERMEDIATE PLATE | 1 | ||
| R910505943 | THROTTLING PLATE | 1 | ||
| R910839299 | THROTTLE DISC | 1 | ||
| R910842338 | SPRING GUIDE Stückliste der Baugruppe →L | 1 | ||
| R901327580 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | ||
| R910583758 | SCREW PLUG | 1 | ||
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| R910295396 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100765 | SPRING LOCK WASHER | 4 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910977277 | SLOTTED SPRING PIN | 1 | ||
| R910807001 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910120901 | SOCKET HEAD CAP SCREW | 2 | ||
| R910586897 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R910515361 | SETSCREW | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910513415 | O-RINGD | 2 | ||
| R910513482 | O-RINGD | 2 | ||
| R909153860 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
