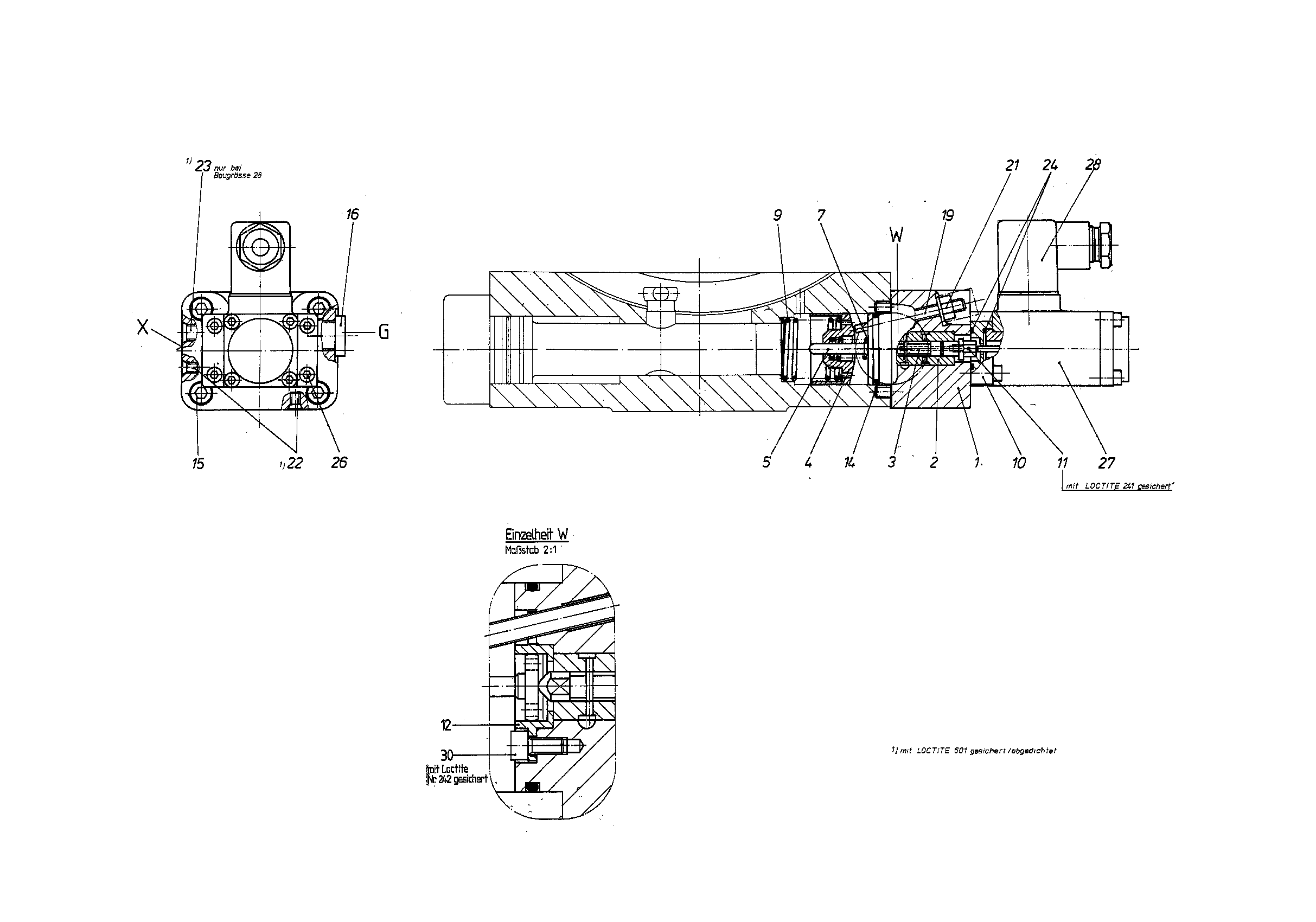

Baugruppe
CONTROL PARTR910801236
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 42 | R910803232 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 1 | |
| 50 | R910801736 | CONTROL HOUSING | 1 | |
| 50 | R909412246 | CONTROL SLEEVE | 1 | |
| 50 | R909412266 | CONTROL PISTON | 1 | |
| 50 | R910801595 | ADJUSTING BUSHING | 1 | |
| 50 | R909418761 | SPRING BOLT | 1 | |
| 50 | R910801625 | COMPRESSION SPRING | 1 | |
| 50 | R910801627 | COMPRESSION SPRING | 1 | |
| 51 | R910801583 | INTERMEDIATE PLATE | 1 | |
| 51 | R910801584 | STOP SCREW | 1 | |
| 51 | R910924892 | STOP BUSHING | 1 | |
| 61 | R910513571 | O-RINGD | 1 | |
| 61 | R910109509 | SOCKET HEAD CAP SCREW | 4 | |
| 61 | R909151979 | SCREW PLUGD | 1 | |
| 61 | R910545422 | SETSCREW | 1 | |
| 62 | R909152425 | SEALING NUTD | 1 | |
| 62 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| 62 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 62 | R910514993 | O-RINGD | 2 | |
| 62 | R910109215 | SOCKET HEAD CAP SCREW | 4 | |
| 62 | R913022795 | PLUG-IN CONNECTOR | 1 | |
| 63 | R910119512 | SOCKET HEAD CAP SCREW | 4 |
