Baugruppe

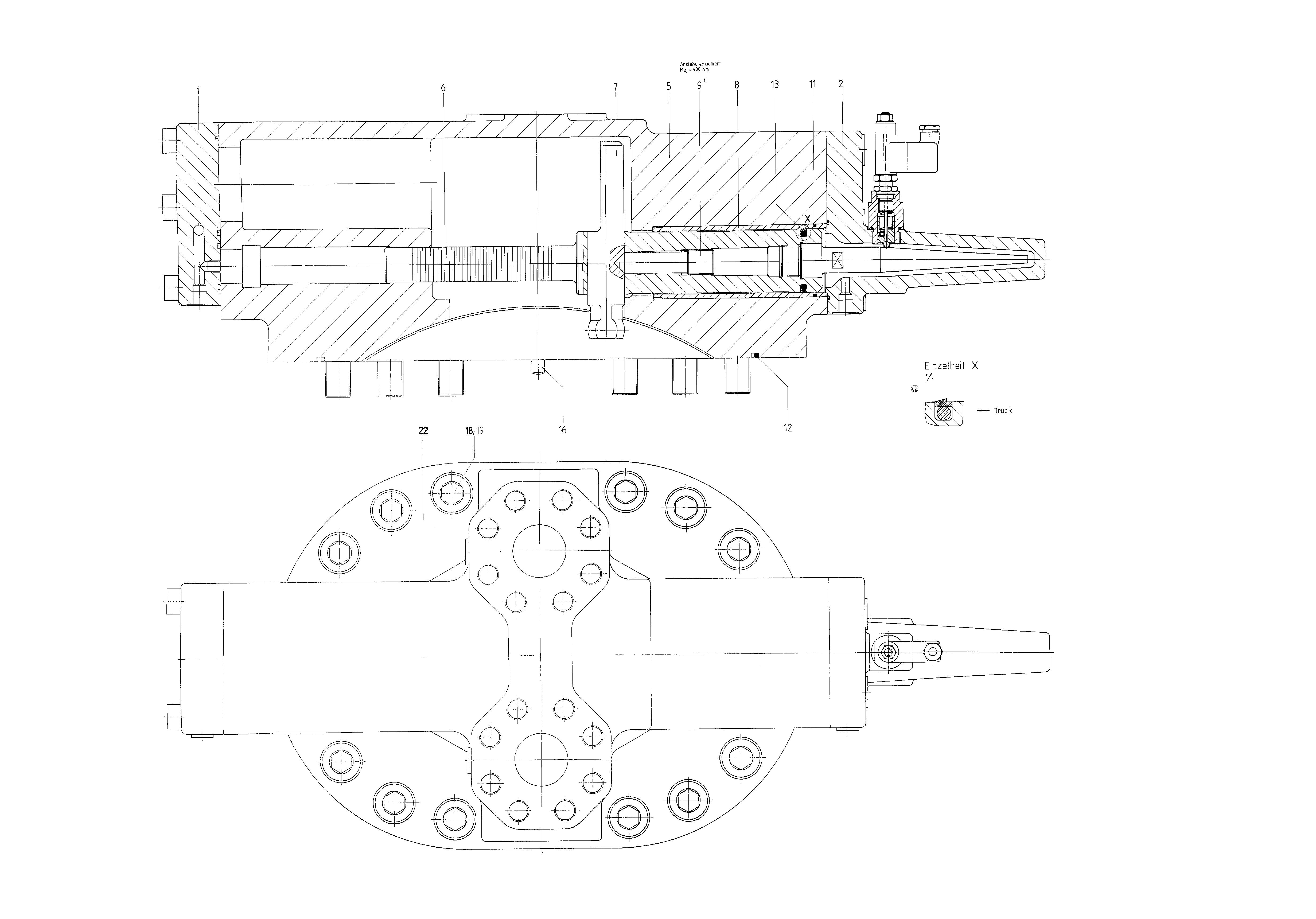

CONTROLR910802321
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910802310 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910802634 | INDUCTIVE DISPL. PICK-UP Stückliste der Baugruppe →L | 1 | ||
| 5 | R910802308 | COVER PLATE | 1 | |
| R910802309 | POSITIONING PISTON | 1 | ||
| R902414363 | POSITIONING STUD | 1 | ||
| 8 | R910802318 | SLEEVE | 1 | |
| 9 | R902533060 | SETSCREW | 1 | |
| 11 | R910977063 | O-RINGD | 1 | |
| R910544752 | O-RINGD | 1 | ||
| R910802323 | RINGD | 1 | ||
| 16 | R910514179 | STRAIGHT PIN | 2 | |
| R910414751 | SOCKET HEAD CAP SCREW | 12 | ||
| 19 | R910100846 | SPRING LOCK WASHER | 12 | |
| R909153816 | SCREW PLUGD | 2 |
