Baugruppe

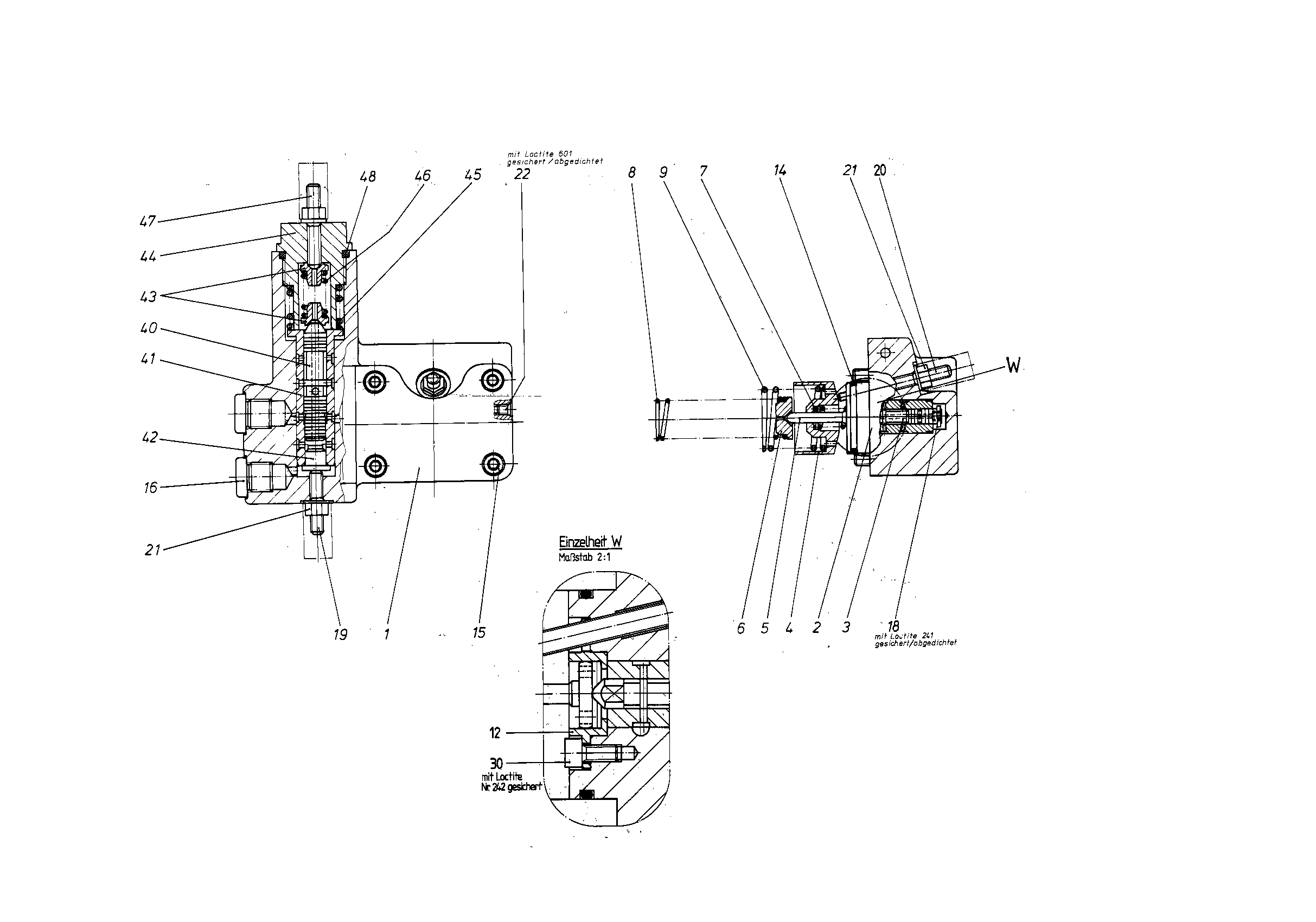

CONTROL PARTR910802453
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 50 | R910802152 | CONTROL HOUSING | 1 | |
| 50 | R909417322 | CONTROL SLEEVE | 1 | |
| 50 | R909417323 | CONTROL PISTON | 1 | |
| 50 | R910801595 | ADJUSTING BUSHING | 1 | |
| 50 | R909418761 | SPRING BOLT | 1 | |
| 50 | R910801587 | SPRING DISK | 1 | |
| 50 | R910801590 | COMPRESSION SPRING | 1 | |
| 50 | R910801789 | COMPRESSION SPRING | 1 | |
| 50 | R910801627 | COMPRESSION SPRING | 1 | |
| 51 | R910924892 | STOP BUSHING | 1 | |
| 54 | R902248587 | CONTROL PISTON | 1 | |
| 54 | R902248524 | CONTROL SLEEVE | 1 | |
| 54 | R909419893 | BOLT | 1 | |
| 54 | R909075975 | SPRING DISK | 2 | |
| 54 | R910801804 | SCREW PLUG | 1 | |
| 54 | R909414209 | COMPRESSION SPRING | 1 | |
| 54 | R909420239 | COMPRESSION SPRING | 1 | |
| 61 | R910513571 | O-RINGD | 1 | |
| 61 | R910109509 | SOCKET HEAD CAP SCREW | 4 | |
| 61 | R909151979 | SCREW PLUGD | 2 | |
| 61 | R909152427 | SETSCREW | 1 | |
| 62 | R910545422 | SETSCREW | 1 | |
| 62 | R909152425 | SEALING NUTD | 3 | |
| 62 | R909831317 | DOUBLE BREAK-OFF PLUG | 4 | |
| 63 | R910119512 | SOCKET HEAD CAP SCREW | 4 | |
| 64 | R909154865 | SETSCREW | 1 | |
| 64 | R910959081 | O-RINGD | 1 |
