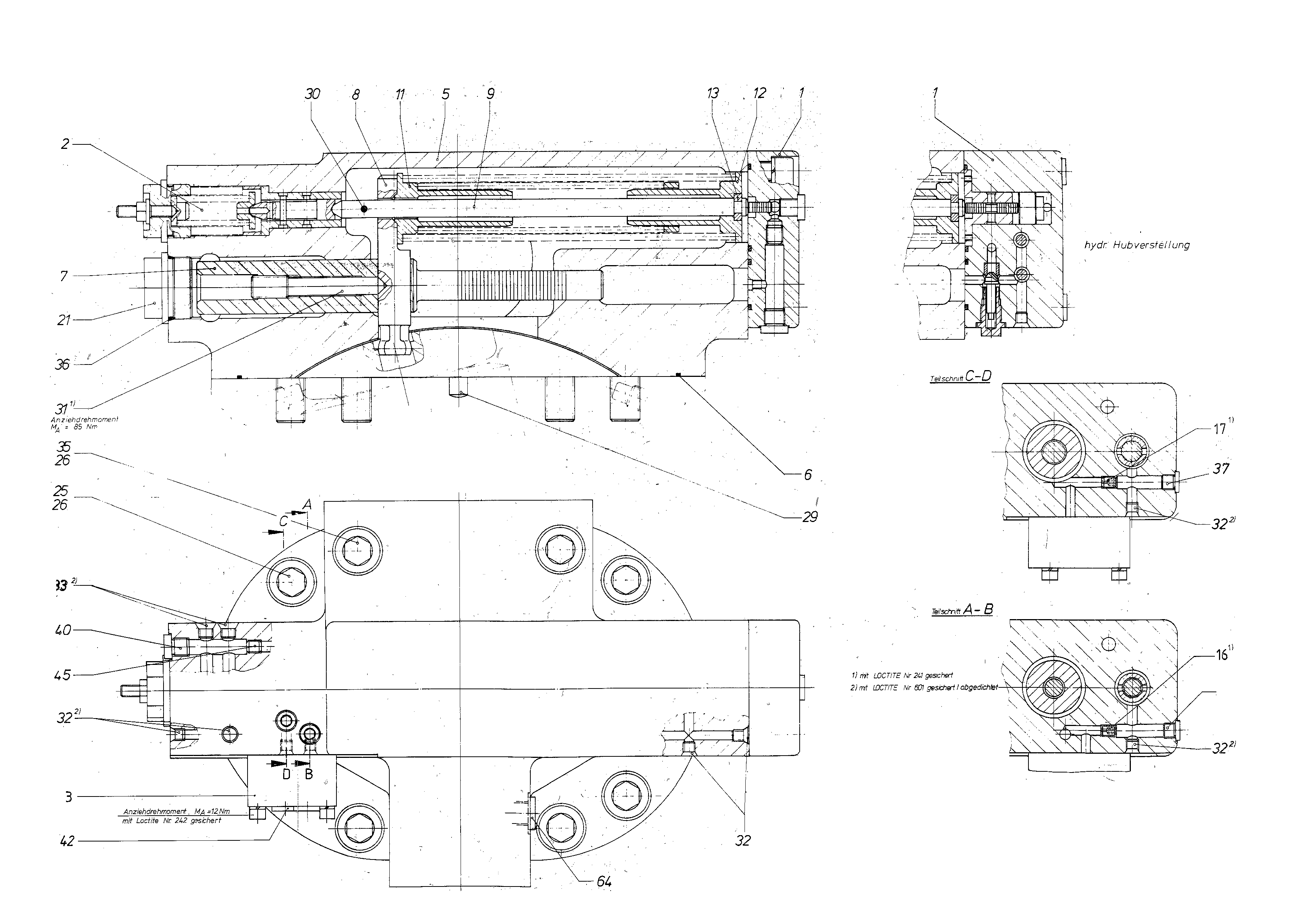

Baugruppe
CONTROLR910802466
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910590754 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910590762 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910808598 | CONNECTING PIECE | 1 | ||
| R910810088 | COVER PLATE | 1 | ||
| 6 | R910945129 | O-RINGD | 1 | |
| 7 | R910841846 | POSITIONING PISTON | 1 | |
| R902413798 | POSITIONING STUD | 1 | ||
| R910591475 | GUIDE ROD | 1 | ||
| 11 | R910803634 | SPRING BUSH | 1 | |
| 12 | R910803642 | SPRING BUSH | 1 | |
| 13 | R910583855 | RING | 1 | |
| R910594253 | THROTTLE SCREW | 1 | ||
| 17 | R910853615 | THROTTLE SCREW | 1 | |
| 21 | R910591483 | SCREW PLUG | 1 | |
| 25 | R910110043 | SOCKET HEAD CAP SCREW | 6 | |
| 26 | R910100838 | SPRING LOCK WASHER | 8 | |
| 29 | R910514179 | STRAIGHT PIN | 2 | |
| R910977277 | SLOTTED SPRING PIN | 1 | ||
| 31 | R910807001 | SETSCREW | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| 33 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 35 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| 36 | R910516481 | O-RINGD | 1 | |
| R909153364 | SCREW PLUGD | 2 | ||
| 40 | R909151692 | SCREW PLUGD | 1 | |
| R909151979 | SCREW PLUGD | 2 | ||
| 45 | R910118664 | SETSCREW | 1 | |
| R909153816 | SCREW PLUGD | 1 |
