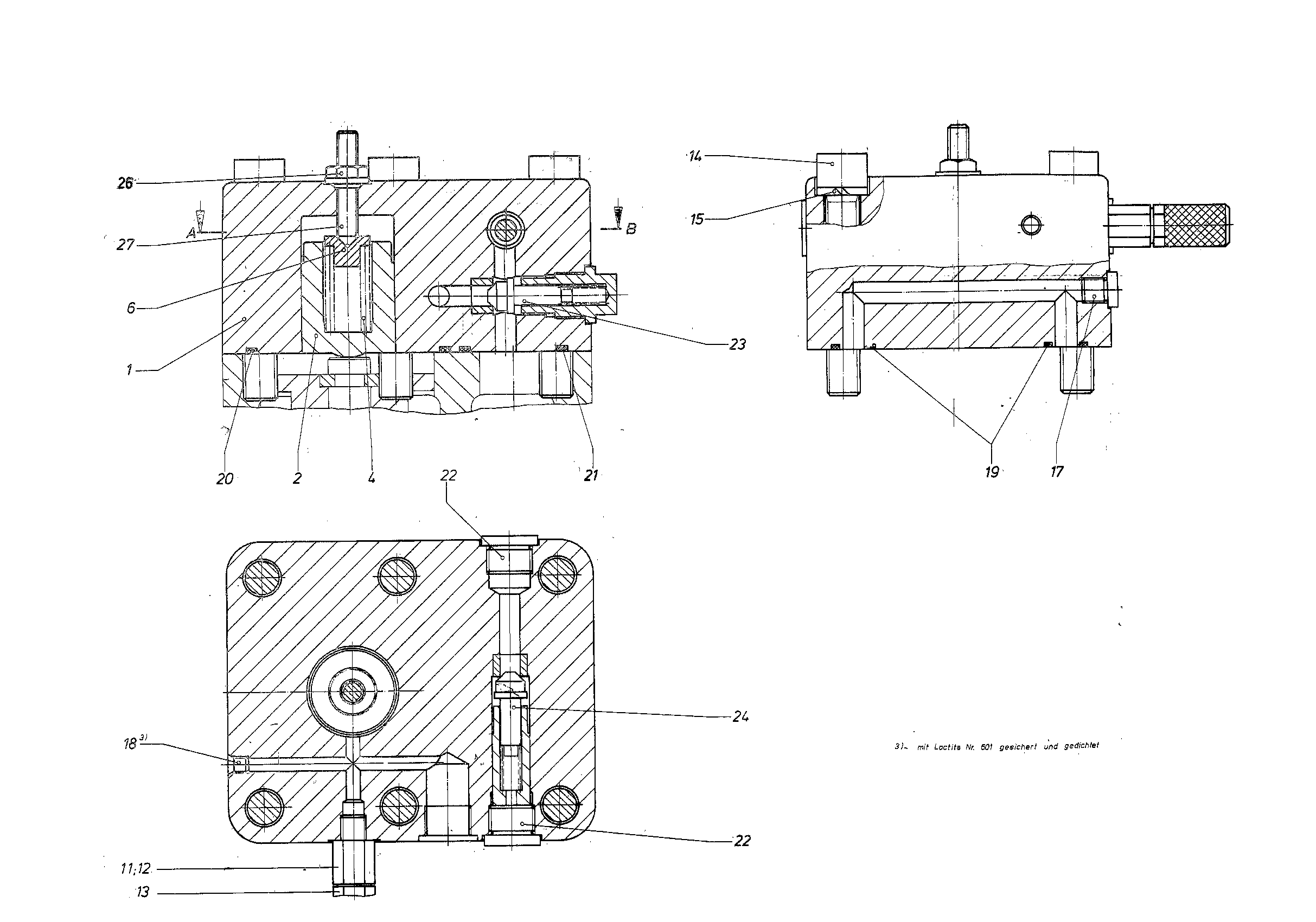

Baugruppe
COVERR910802548
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910802547 | COVER | 1 | |
| 2 | R910590347 | CONTROL PISTON | 1 | |
| R910590479 | COMPRESSION SPRING | 1 | ||
| R910590339 | SPRING DISK | 1 | ||
| 11 | R910744522 | SEAL RINGD | 1 | |
| R910802016 | REDUCER SCREW | 1 | ||
| R910726761 | TEST POINT | 1 | ||
| 14 | R910513016 | SOCKET HEAD CAP SCREW | 6 | |
| R910100803 | SPRING LOCK WASHER | 6 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| 18 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 19 | R910514985 | O-RINGD | 2 | |
| R910672017 | O-RINGD | 1 | ||
| 21 | R910977050 | O-RINGD | 1 | |
| R909151694 | SCREW PLUGD | 2 | ||
| R910805513 | NON-RETURN VALVE Stückliste der Baugruppe →L | 1 | ||
| R910805521 | NON-RETURN VALVE Stückliste der Baugruppe →L | 1 | ||
| R909152426 | SEALING NUTD | 1 | ||
| 27 | R909154165 | SETSCREW | 1 |
