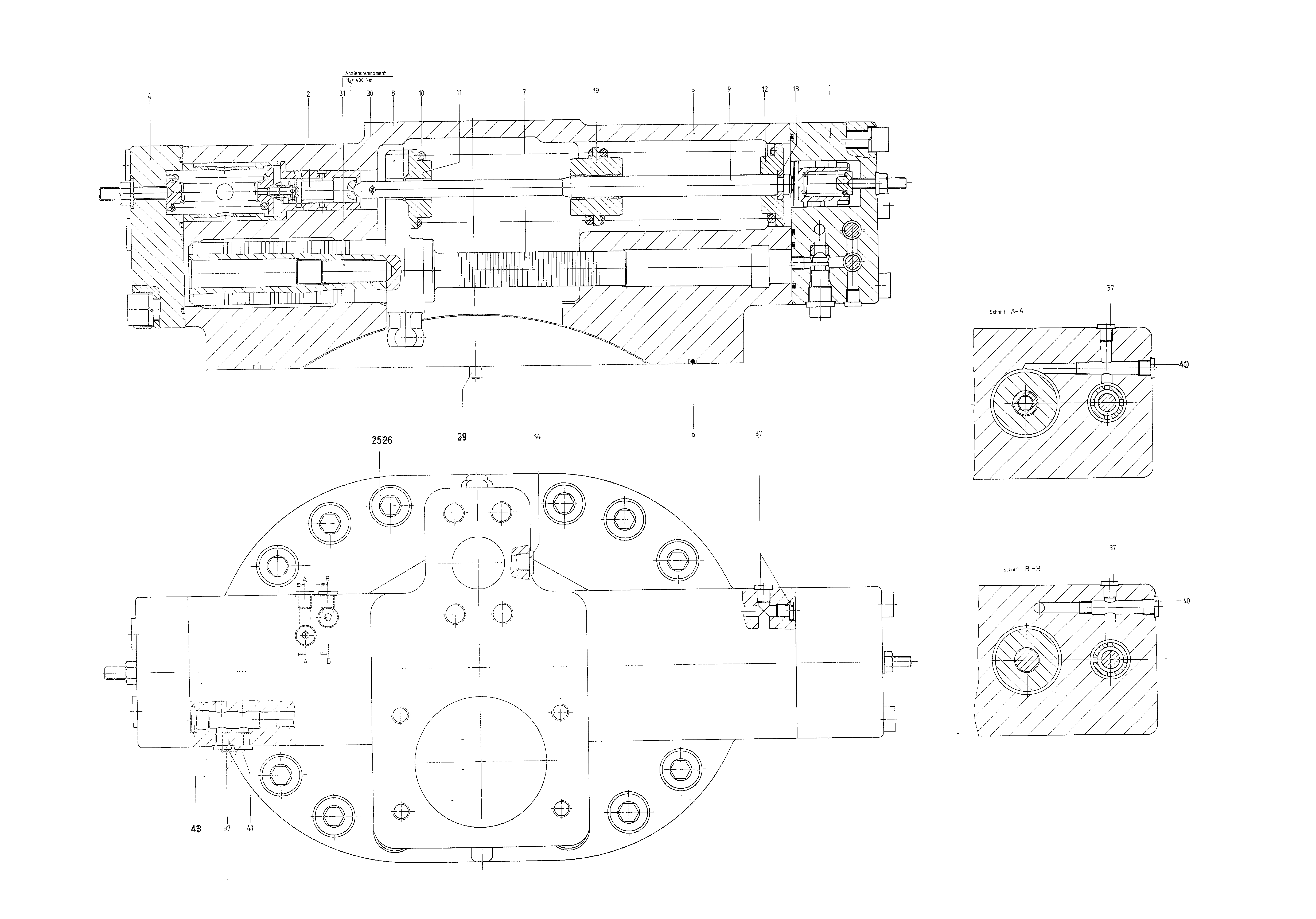

Baugruppe
CONTROLR910802680
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910805548 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910848832 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| 4 | R910805556 | COVER Stückliste der Baugruppe →L | 1 | |
| 5 | R910802678 | COVER PLATE | 1 | |
| 6 | R910544752 | O-RINGD | 1 | |
| 7 | R910841803 | POSITIONING PISTON | 1 | |
| 8 | R902414363 | POSITIONING STUD | 1 | |
| R910590304 | GUIDE ROD | 1 | ||
| 10 | R910596981 | COMPRESSION SPRING | 2 | |
| 11 | R910590282 | SPRING DISK | 1 | |
| 12 | R910590274 | SPRING DISK | 1 | |
| 13 | R910590207 | RING | 1 | |
| 19 | R910596949 | SPRING GUIDE Stückliste der Baugruppe →L | 1 | |
| 25 | R910414751 | SOCKET HEAD CAP SCREW | 12 | |
| 26 | R910100846 | SPRING LOCK WASHER | 12 | |
| R910514179 | STRAIGHT PIN | 2 | ||
| R910672009 | SLOTTED SPRING PIN | 1 | ||
| R902533060 | SETSCREW | 1 | ||
| R909151692 | SCREW PLUGD | 6 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| 41 | R909151694 | SCREW PLUGD | 1 | |
| R909153815 | SCREW PLUGD | 1 | ||
| 64 | R909153816 | SCREW PLUGD | 1 |
