Baugruppe

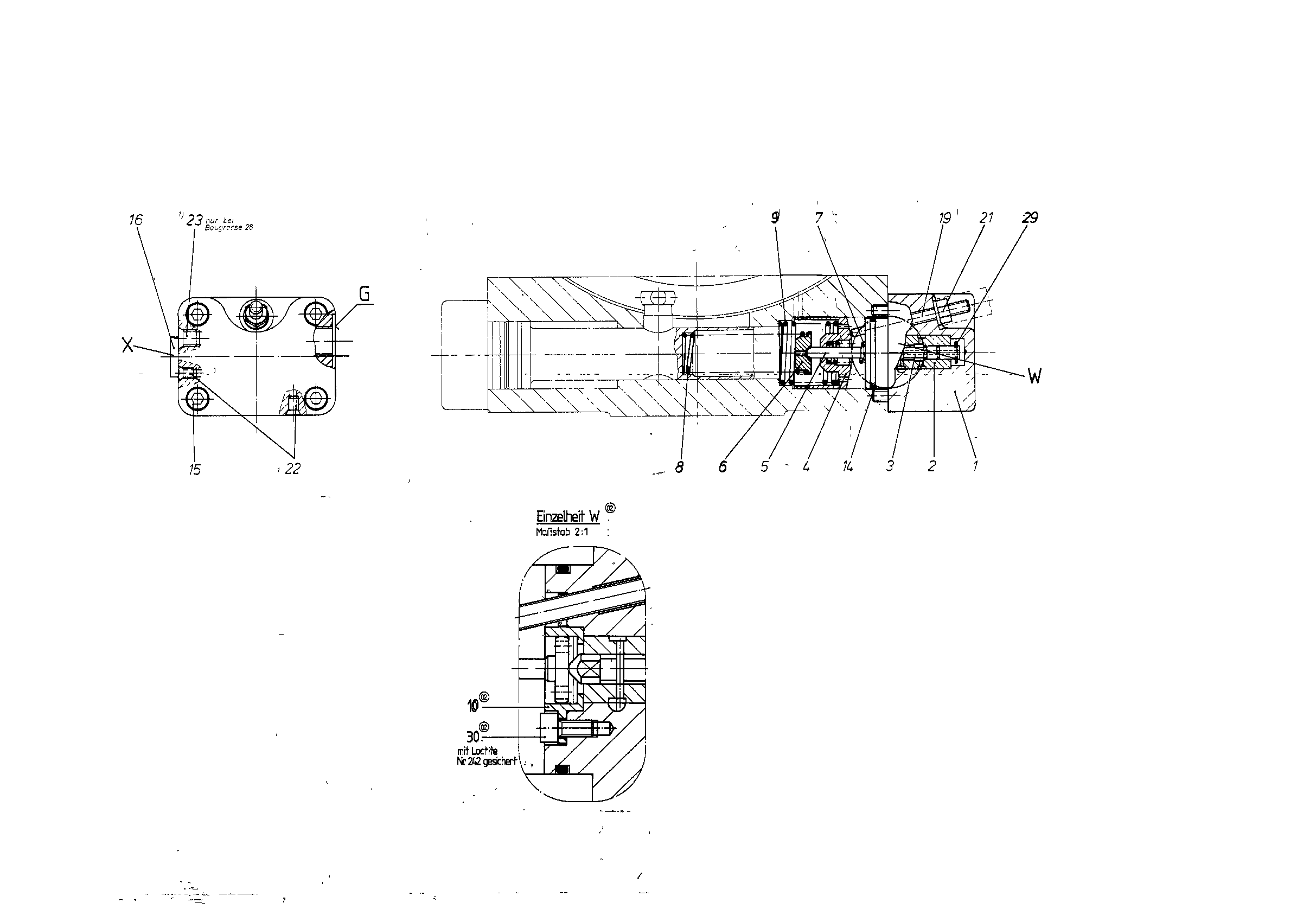

CONTROL PARTR910802706
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910801460 | CONTROL HOUSING | 1 | ||
| R910801808 | CONTROL SLEEVE | 1 | ||
| R910802216 | CONTROL PISTON | 1 | ||
| 4 | R910801595 | ADJUSTING BUSHING | 1 | |
| 5 | R909418761 | SPRING BOLT | 1 | |
| R910801592 | SPRING DISK | 1 | ||
| 7 | R910801590 | COMPRESSION SPRING | 1 | |
| 8 | R910802604 | COMPRESSION SPRING | 1 | |
| 9 | R910801627 | COMPRESSION SPRING | 1 | |
| 10 | R910924892 | STOP BUSHING | 1 | |
| 14 | R910513571 | O-RINGD | 1 | |
| R910109509 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 19 | R910545422 | SETSCREW | 1 | |
| 21 | R909152425 | SEALING NUTD | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| 23 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 29 | R910977232 | RETAINING RING | 1 | |
| R910119512 | SOCKET HEAD CAP SCREW | 4 |
