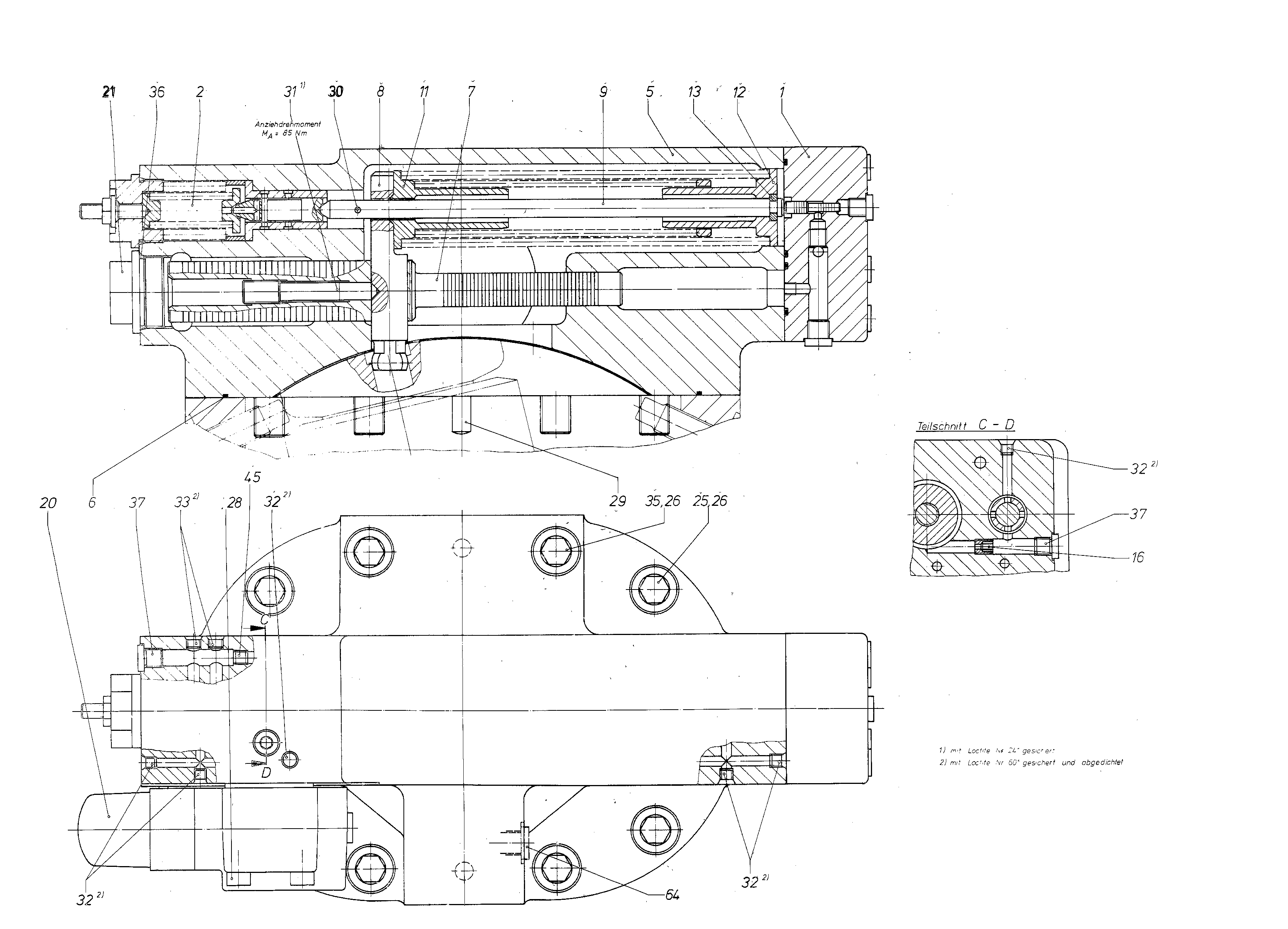

Baugruppe
CONTROLR910802963
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910803138 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910587451 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910810037 | COVER PLATE | 1 | ||
| R910945102 | O-RINGD | 1 | ||
| R910842001 | POSITIONING PISTON | 1 | ||
| R902413797 | POSITIONING STUD | 1 | ||
| 9 | R910583979 | GUIDE ROD | 1 | |
| 11 | R910801615 | SPRING DISK | 1 | |
| R910801607 | SPRING DISK | 1 | ||
| R910583855 | RING | 1 | ||
| R910571288 | THROTTLE SCREW | 1 | ||
| R901327580 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | ||
| 21 | R910583758 | SCREW PLUG | 1 | |
| 25 | R910110043 | SOCKET HEAD CAP SCREW | 6 | |
| 26 | R910100838 | SPRING LOCK WASHER | 8 | |
| 27 | R910295396 | SOCKET HEAD CAP SCREW | 4 | |
| 28 | R910100765 | SPRING LOCK WASHER | 4 | |
| 29 | R910514179 | STRAIGHT PIN | 2 | |
| R910977277 | SLOTTED SPRING PIN | 1 | ||
| 31 | R910807001 | SETSCREW | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| 33 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 35 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| R910586897 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R910515361 | SETSCREW | 1 | ||
| 64 | R909153816 | SCREW PLUGD | 1 |
