Baugruppe

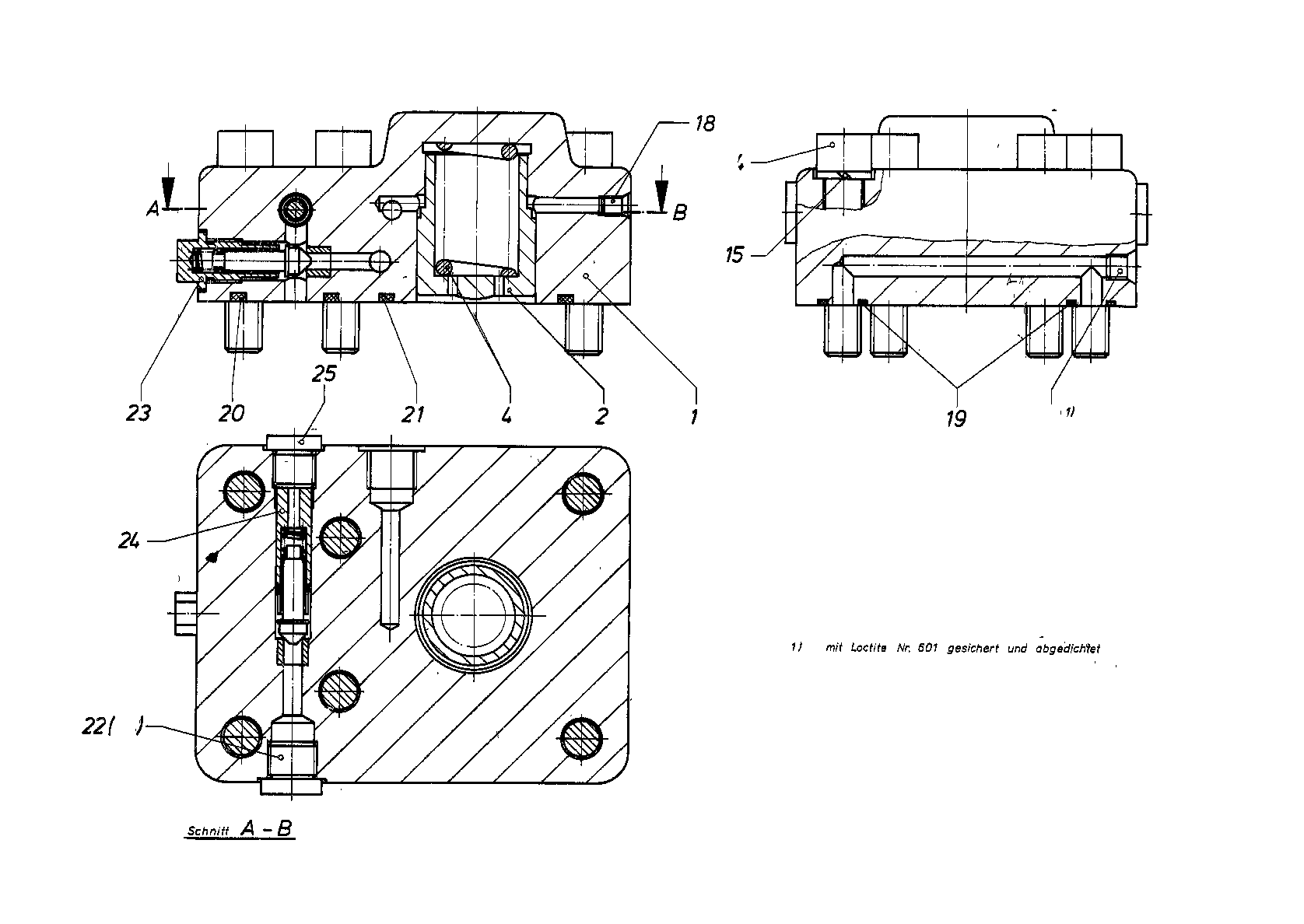

COVERR910803223
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910849308 | COVER | 1 | ||
| R910849316 | CONTROL PISTON | 1 | ||
| R910916595 | COMPRESSION SPRING | 1 | ||
| 14 | R910109835 | SOCKET HEAD CAP SCREW | 6 | |
| R910100773 | SPRING LOCK WASHER | 6 | ||
| 17 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910535397 | O-RINGD | 2 | ||
| R910585262 | O-RINGD | 1 | ||
| R910585289 | O-RINGD | 1 | ||
| R910809012 | NON-RETURN VALVE Stückliste der Baugruppe →L | 1 | ||
| R910809055 | NON-RETURN VALVE Stückliste der Baugruppe →L | 1 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| 26 | R909156864 | SCREW PLUGD | 1 |
