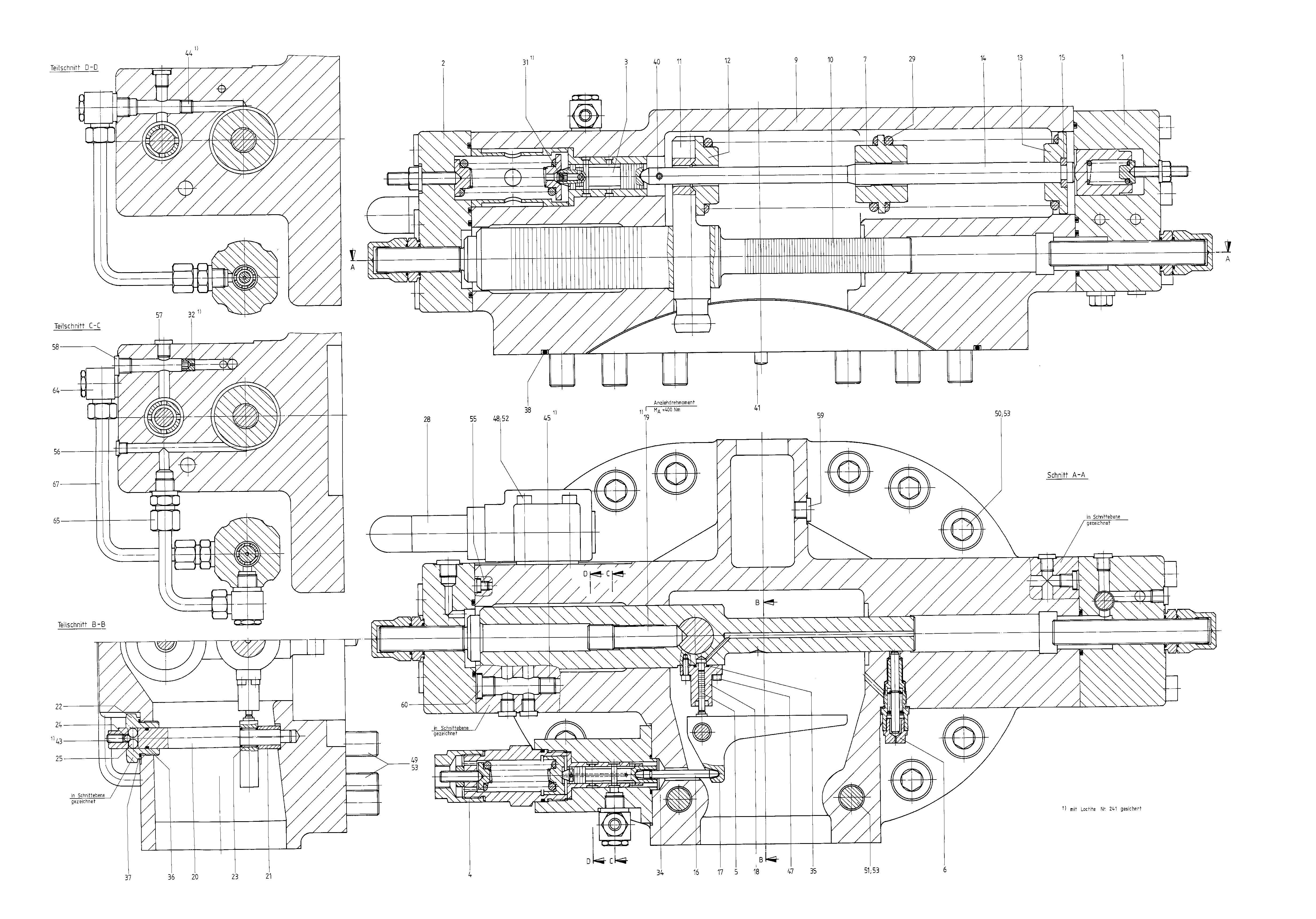

Baugruppe
CONTROLR910803627
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910803614 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910803612 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910848832 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910803610 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R902548429 | PISTON PAD | 1 | ||
| R910803310 | INDICATING DEVICE Stückliste der Baugruppe →L | 1 | ||
| R910596949 | SPRING GUIDE Stückliste der Baugruppe →L | 1 | ||
| R910803576 | COVER PLATE | 1 | ||
| R910803888 | POSITIONING PISTON | 1 | ||
| R902414363 | POSITIONING STUD | 1 | ||
| R910590282 | SPRING DISK | 1 | ||
| R910590274 | SPRING DISK | 1 | ||
| R910590304 | GUIDE ROD | 1 | ||
| R910590207 | RING | 1 | ||
| R910803579 | CONNECTING ROD | 1 | ||
| R910803578 | LEVER | 1 | ||
| R910803887 | GUIDE BUSHING | 1 | ||
| R902533060 | SETSCREW | 1 | ||
| R910803599 | ECCENTRIC PIN | 1 | ||
| R910803601 | SPACER RING | 1 | ||
| R910803600 | GUIDE SCREW | 1 | ||
| R910922465 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R910128481 | BALL | 1 | ||
| R910199028 | BALL | 2 | ||
| R901327580 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | ||
| R910596981 | COMPRESSION SPRING | 2 | ||
| R910825654 | THROTTLE SCREW | 1 | ||
| R910843571 | THROTTLE SCREW | 1 | ||
| R910514969 | O-RINGD | 1 | ||
| R910977043 | O-RINGD | 1 | ||
| R910514985 | O-RINGD | 1 | ||
| R910744514 | SEAL RINGD | 1 | ||
| R910544752 | O-RINGD | 1 | ||
| R910672009 | SLOTTED SPRING PIN | 1 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910118915 | SETSCREW | 1 | ||
| R910274062 | SETSCREW | 1 | ||
| R910803383 | SETSCREW | 1 | ||
| R910109223 | SOCKET HEAD CAP SCREW | 4 | ||
| R910295396 | SOCKET HEAD CAP SCREW | 4 | ||
| R910922408 | SOCKET HEAD CAP SCREW | 2 | ||
| R910414751 | SOCKET HEAD CAP SCREW | 8 | ||
| R910579947 | SOCKET HEAD CAP SCREW | 2 | ||
| R910100765 | SPRING LOCK WASHER | 4 | ||
| R910100846 | SPRING LOCK WASHER | 12 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 6 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R910755761 | THREADED FASTENER | 2 | ||
| R910755788 | THREADED FASTENER | 2 | ||
| R910997021 | PIPEMYANMAR | 500 |
