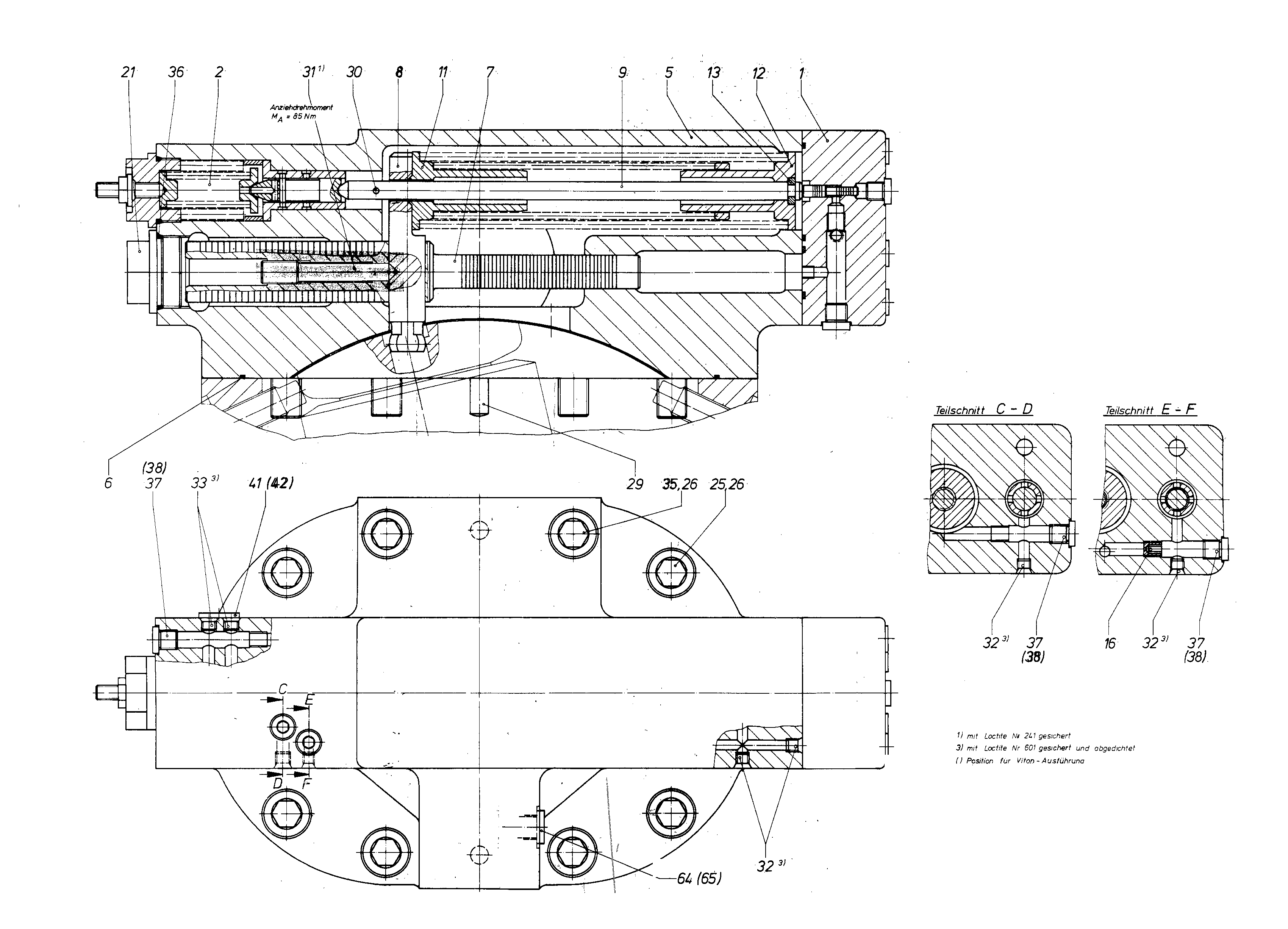

Baugruppe
CONTROLR910803839
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 40 | R910801577 | COVER Stückliste der Baugruppe →L | 1 | |
| 40 | R910587117 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| 50 | R910803073 | COVER PLATE | 1 | |
| 50 | R910945137 | O-RINGD | 1 | |
| 50 | R910842001 | POSITIONING PISTON | 1 | |
| 50 | R902413797 | POSITIONING STUD | 1 | |
| 50 | R910583979 | GUIDE ROD | 1 | |
| 51 | R910801615 | SPRING DISK | 1 | |
| 51 | R910801607 | SPRING DISK | 1 | |
| 51 | R910583855 | RING | 1 | |
| 51 | R910507431 | THROTTLE SCREW | 1 | |
| 52 | R910583758 | SCREW PLUG | 1 | |
| 53 | R910807001 | SETSCREW | 1 | |
| 62 | R910110043 | SOCKET HEAD CAP SCREW | 6 | |
| 62 | R910100838 | SPRING LOCK WASHER | 8 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R910977277 | SLOTTED SPRING PIN | 1 | |
| 63 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 63 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 63 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R910587214 | O-RINGD | 1 | |
| 63 | R910108103 | SCREW PLUG | 3 | |
| 63 | R910100269 | SEAL RINGD | 3 | |
| R910108162 | SCREW PLUG | 1 | ||
| R910100315 | SEAL RINGD | 1 | ||
| 66 | R910108138 | SCREW PLUG | 1 | |
| 66 | R910100285 | SEAL RINGD | 1 |
