Baugruppe

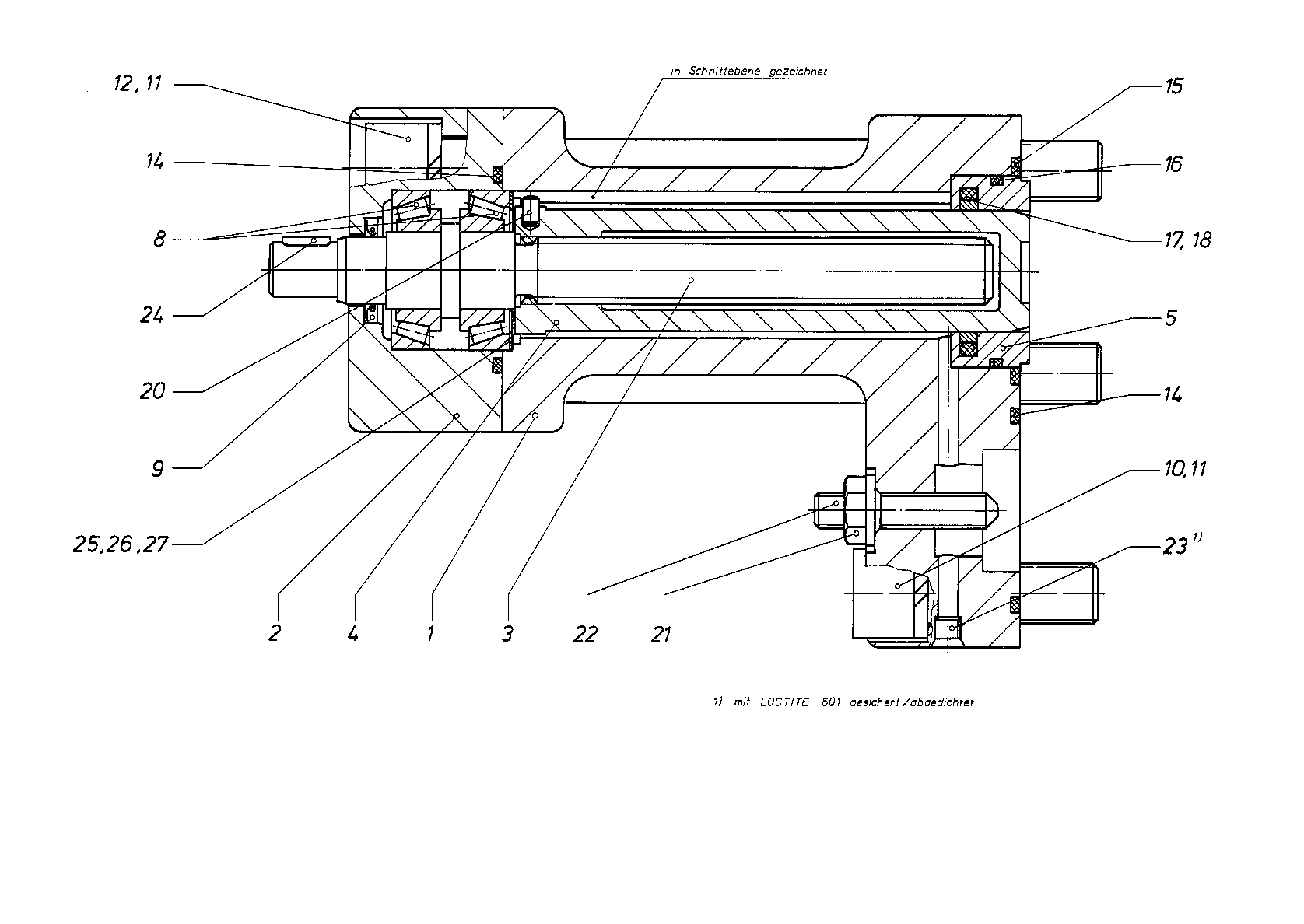

STROKE LIMITERR910807877
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 50 | R910807826 | CONTROL HOUSING | 1 | |
| 50 | R910807842 | COVER | 1 | |
| 50 | R910807893 | ADJUSTMENT SPINDLE | 1 | |
| 50 | R910807931 | CONTROL SLEEVE | 1 | |
| 50 | R910807958 | INTERMEDIATE RING | 1 | |
| 60 | R910101397 | TAPERED-ROLLER BEARING | 2 | |
| 60 | R910900853 | SHAFT SEALING RINGD | 1 | |
| 61 | R902572931 | SOCKET HEAD CAP SCREW | 2 | |
| 61 | R910100838 | SPRING LOCK WASHER | 6 | |
| 61 | R910545023 | SOCKET HEAD CAP SCREW | 4 | |
| 61 | R910523267 | O-RINGD | 2 | |
| 61 | R910544736 | O-RINGD | 1 | |
| 61 | R910977069 | O-RINGD | 1 | |
| 61 | R910514942 | O-RINGD | 1 | |
| 61 | R910545015 | ROD SEALD | 1 | |
| 62 | R910585165 | STRAIGHT PIN | 1 | |
| 62 | R910339504 | SELF-LOCKING NUTD | 1 | |
| 62 | R910334138 | SETSCREW | 1 | |
| 62 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 62 | R910114707 | PARALLEL KEY | 1 | |
| 62 | R910585335 | SHIM RING | 1 | |
| 62 | R910635022 | SHIM RING | 2 | |
| 62 | R910635014 | SHIM RING | 1 |
