Baugruppe

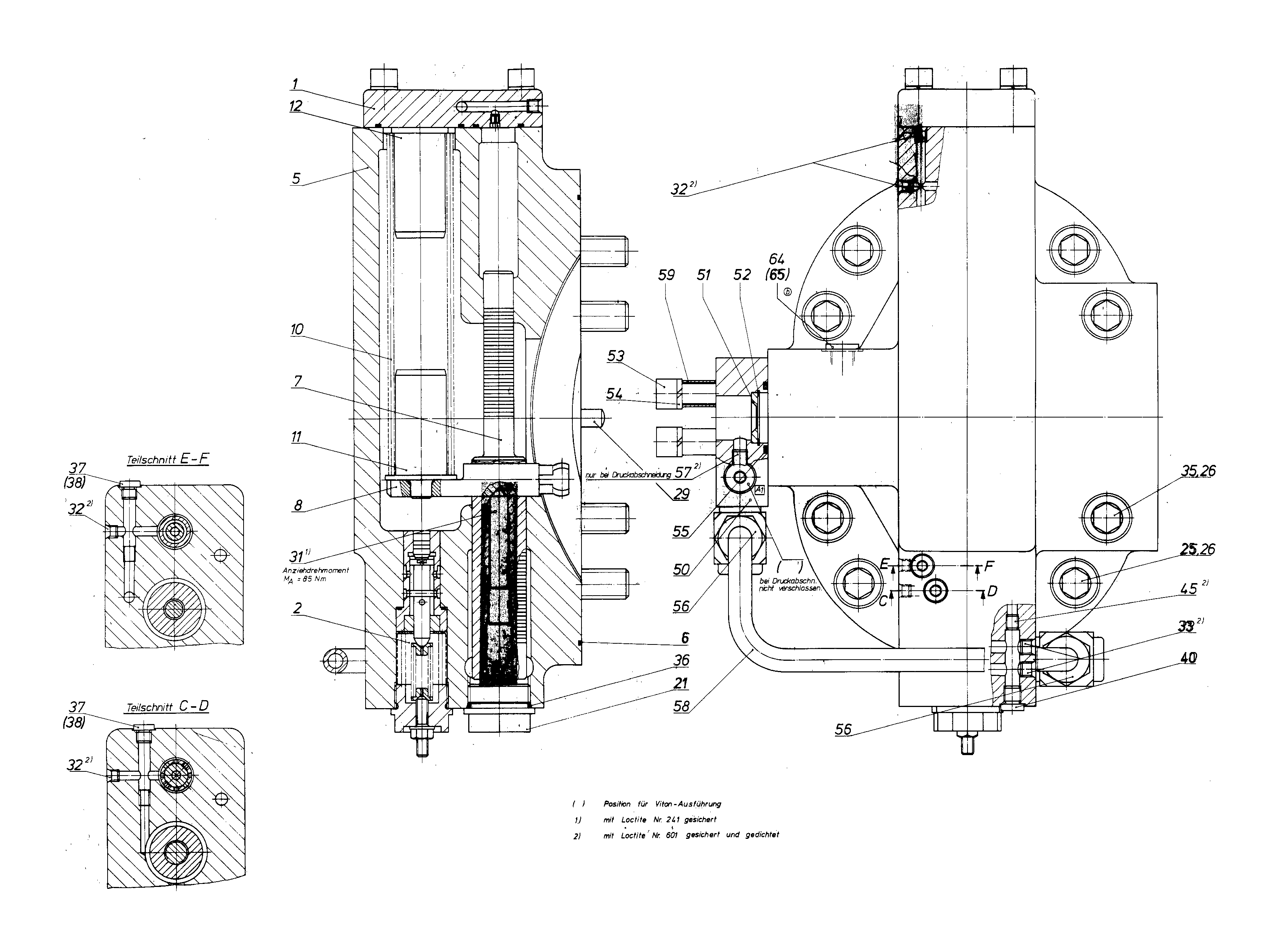

CONTROLR910810169
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910595349 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910800279 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910809004 | COVER PLATE | 1 | ||
| R910945129 | O-RINGD | 1 | ||
| R910841846 | POSITIONING PISTON | 1 | ||
| R902413798 | POSITIONING STUD | 1 | ||
| R910591548 | COMPRESSION SPRING | 1 | ||
| R910801798 | SPRING BUSH | 1 | ||
| R910801828 | SPRING BUSH | 1 | ||
| R910591483 | SCREW PLUG | 1 | ||
| R910807001 | SETSCREW | 1 | ||
| R910800236 | ORIFICE FLANGE | 1 | ||
| R910800228 | ORIFICE | 1 | ||
| R910508918 | THROTTLE SCREW | 1 | ||
| 62 | R910110043 | SOCKET HEAD CAP SCREW | 6 | |
| 62 | R910100838 | SPRING LOCK WASHER | 8 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 63 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 63 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R910516481 | O-RINGD | 1 | |
| 63 | R909153364 | SCREW PLUGD | 2 | |
| R909151692 | SCREW PLUGD | 1 | ||
| R910118664 | SETSCREW | 1 | ||
| R910800368 | RETAINING RING | 1 | ||
| R910119008 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100781 | SPRING LOCK WASHER | 4 | ||
| R910515663 | O-RINGD | 1 | ||
| R910903350 | THREADED FASTENER | 2 | ||
| 66 | R909153816 | SCREW PLUGD | 1 | |
| 75 | R910521647 | PIPEMYANMAR | 470 | |
| 75 | R910094099 | PIPEMYANMAR | 25 |
