Baugruppe

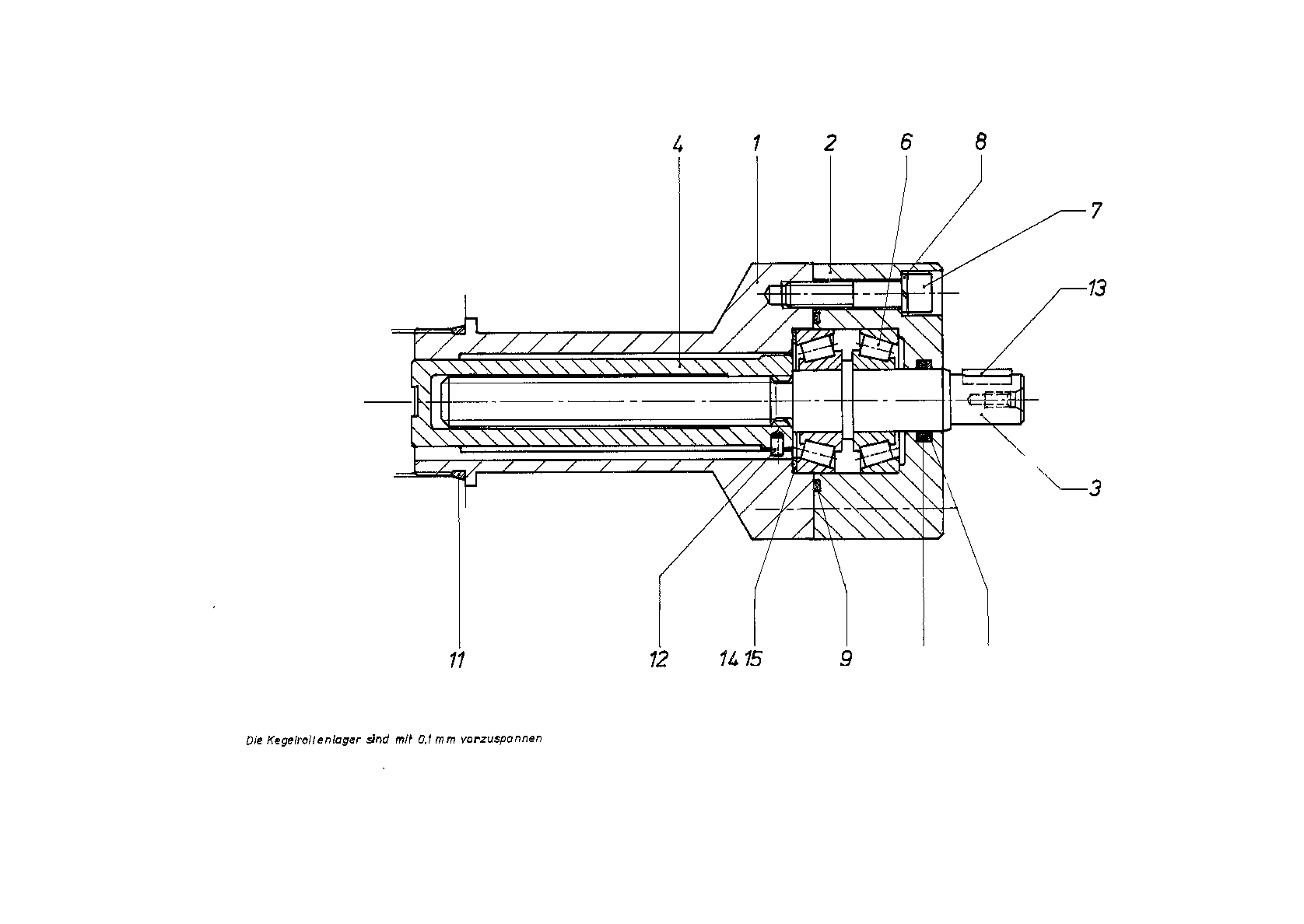

STROKE LIMITERR910812404
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 50 | R910599557 | CONTROL HOUSING | 1 | |
| 50 | R910599689 | COVER | 1 | |
| 50 | R910599565 | ADJUSTMENT SPINDLE | 1 | |
| 50 | R910599573 | CONTROL SLEEVE | 1 | |
| 60 | R910599719 | TAPERED-ROLLER BEARING | 2 | |
| 60 | R910109509 | SOCKET HEAD CAP SCREW | 6 | |
| 60 | R910100757 | SPRING LOCK WASHER | 6 | |
| 60 | R910977816 | O-RINGD | 1 | |
| 61 | R910491187 | O-RINGD | 1 | |
| 61 | R910587184 | O-RINGD | 1 | |
| 61 | R910599735 | STRAIGHT PIN | 1 | |
| 61 | R910977228 | PARALLEL KEY | 1 | |
| 61 | R910126276 | SHIM RING | 2 | |
| 61 | R910122661 | SHIM RING | 2 | |
| 61 | R910599727 | BACKUP RINGD | 1 |
