Baugruppe

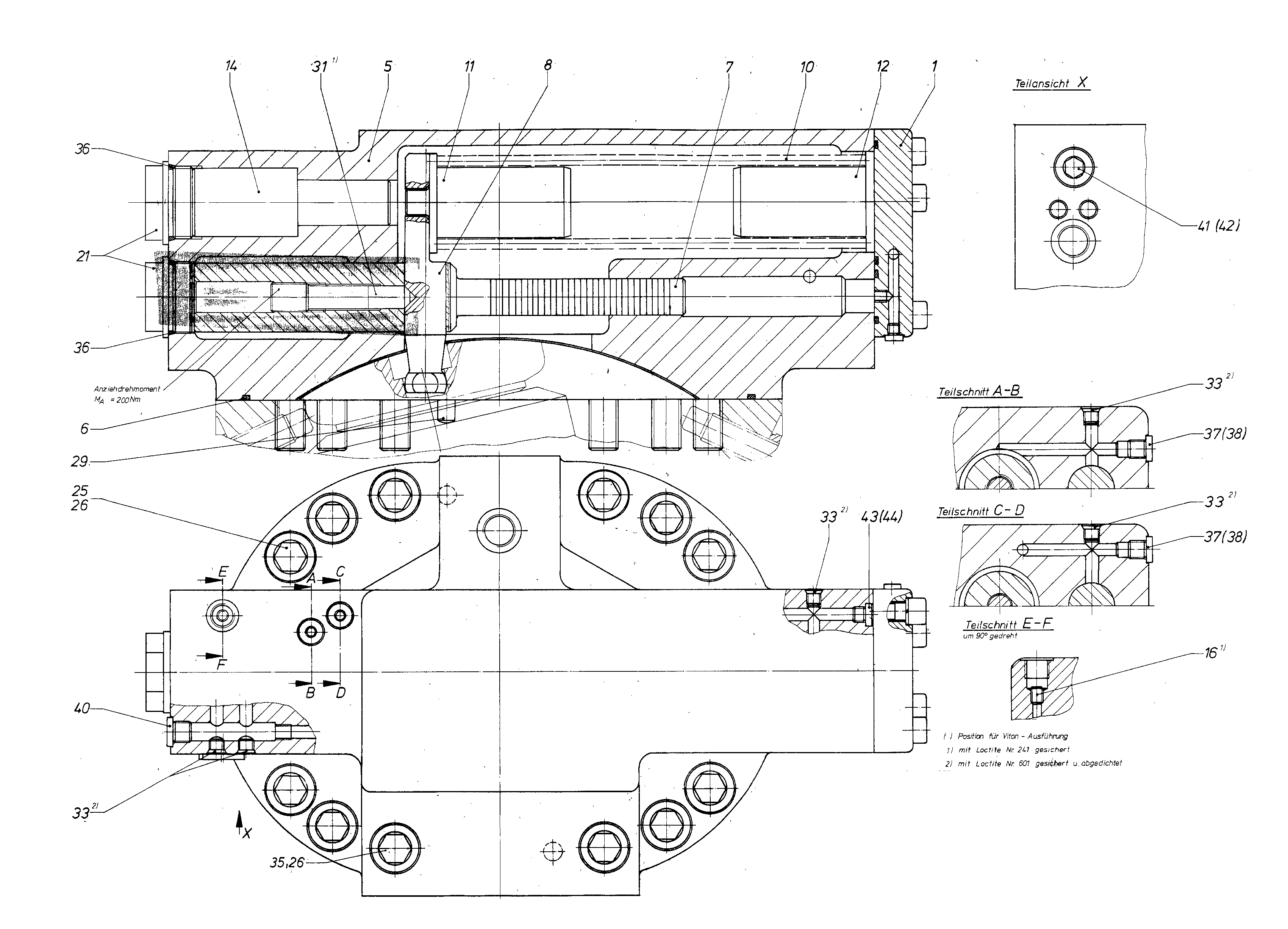

ADJUSTING PIECER910820938
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910597171 | COVER Stückliste der Baugruppe →L | 1 | ||
| 50 | R910807397 | COVER PLATE | 1 | |
| 50 | R910841994 | POSITIONING PISTON | 1 | |
| 50 | R902413796 | POSITIONING STUD | 1 | |
| 51 | R910582085 | COMPRESSION SPRING | 1 | |
| 51 | R910801356 | SPRING BUSH | 1 | |
| 51 | R910801348 | SPRING BUSH | 1 | |
| 51 | R910582859 | PLUG | 1 | |
| 51 | R910594253 | THROTTLE SCREW | 1 | |
| 52 | R910583758 | SCREW PLUG | 2 | |
| 53 | R902533059 | SETSCREW | 1 | |
| 60 | R910801399 | O-RINGD | 1 | |
| 62 | R910705799 | SOCKET HEAD CAP SCREW | 10 | |
| 62 | R910100838 | SPRING LOCK WASHER | 12 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R909831320 | DOUBLE BREAK-OFF PLUG | 3 | |
| 63 | R910801402 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R910586897 | O-RINGD | 2 | |
| 63 | R909151692 | SCREW PLUGD | 2 | |
| 64 | R909151979 | SCREW PLUGD | 1 | |
| 64 | R909151694 | SCREW PLUGD | 1 | |
| 64 | R909153364 | SCREW PLUGD | 1 |
