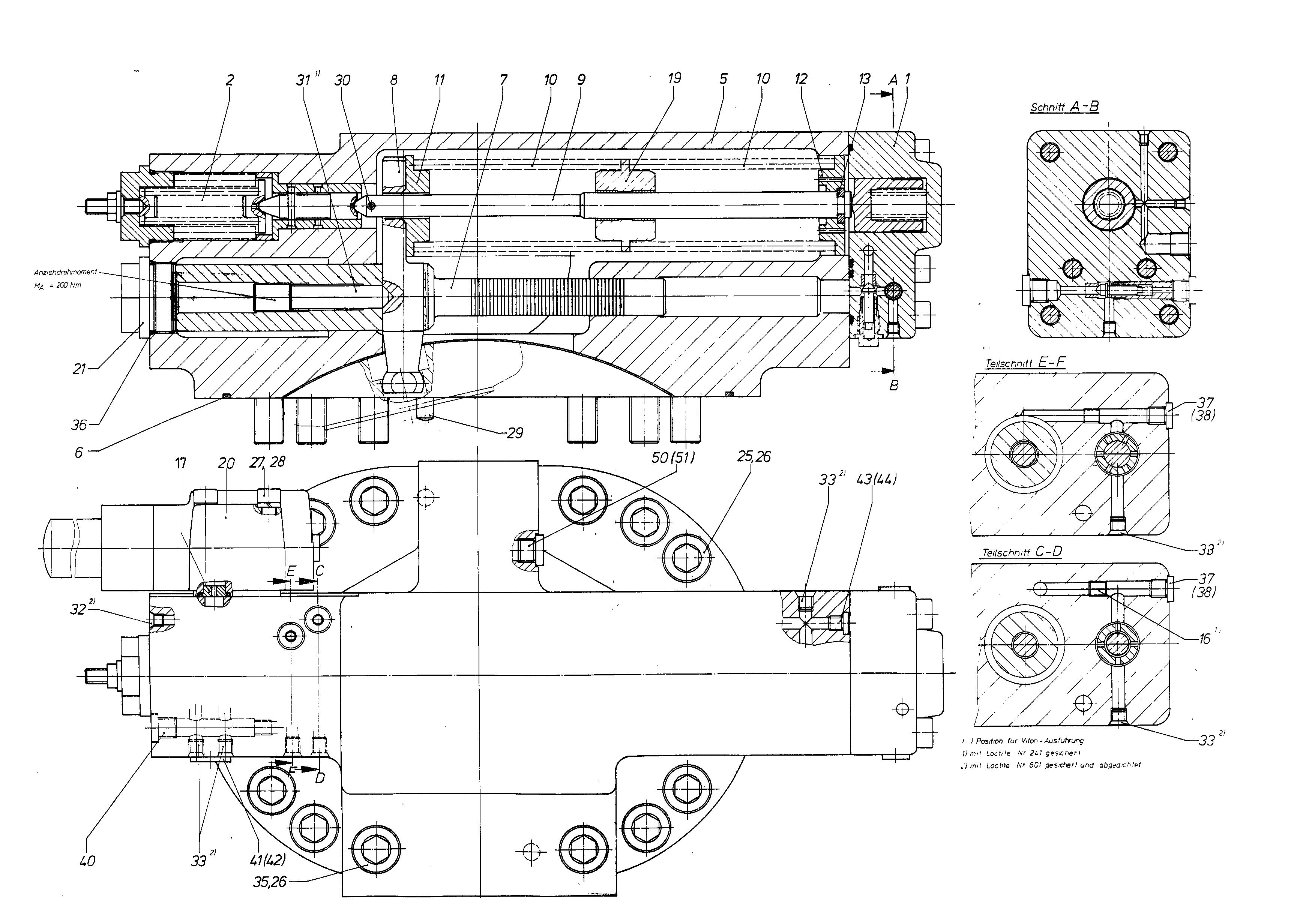

Baugruppe
CONTROLR910836184
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910598976 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910836133 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| 41 | R910596728 | SPRING GUIDE Stückliste der Baugruppe →L | 1 | |
| 50 | R910801232 | COVER PLATE | 1 | |
| 50 | R910841994 | POSITIONING PISTON | 1 | |
| 50 | R902413796 | POSITIONING STUD | 1 | |
| 50 | R910596752 | GUIDE ROD | 1 | |
| 51 | R910596779 | COMPRESSION SPRING | 2 | |
| 51 | R910582468 | SPRING DISK | 1 | |
| 51 | R910582476 | SPRING DISK | 1 | |
| 51 | R910582743 | RING | 1 | |
| 51 | R910507431 | THROTTLE SCREW | 1 | |
| 51 | R910849812 | THROTTLE DISC | 1 | |
| 52 | R910583758 | SCREW PLUG | 1 | |
| 53 | R902533059 | SETSCREW | 1 | |
| 60 | R910801399 | O-RINGD | 1 | |
| 62 | R901327580 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | |
| 62 | R910705799 | SOCKET HEAD CAP SCREW | 10 | |
| 62 | R910100838 | SPRING LOCK WASHER | 12 | |
| 62 | R910295396 | SOCKET HEAD CAP SCREW | 4 | |
| 62 | R910100765 | SPRING LOCK WASHER | 4 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R910529206 | SLOTTED SPRING PIN | 1 | |
| 63 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 63 | R909831320 | DOUBLE BREAK-OFF PLUG | 3 | |
| 63 | R910801402 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R910586897 | O-RINGD | 1 | |
| 63 | R909151692 | SCREW PLUGD | 2 | |
| 64 | R909151979 | SCREW PLUGD | 1 | |
| 64 | R909151694 | SCREW PLUGD | 1 | |
| 64 | R909153364 | SCREW PLUGD | 1 | |
| 65 | R909153816 | SCREW PLUGD | 1 |
