Baugruppe

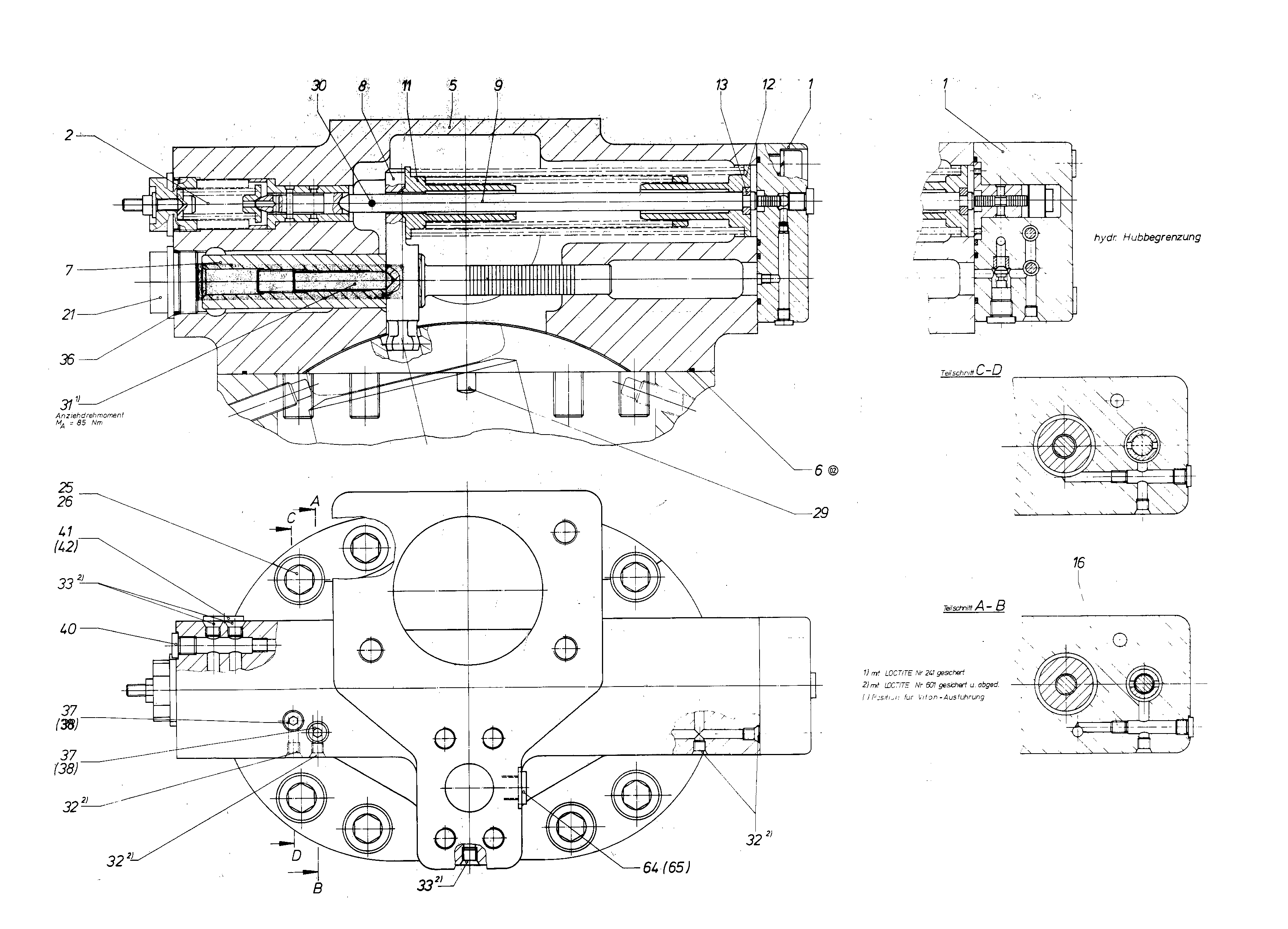

ADJUSTING PIECER910838918
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 40 | R910587567 | COVER Stückliste der Baugruppe →L | 1 | |
| 40 | R910590762 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| 50 | R910838896 | COVER PLATE | 1 | |
| 50 | R910945129 | O-RINGD | 1 | |
| 50 | R910841846 | POSITIONING PISTON | 1 | |
| 50 | R902413798 | POSITIONING STUD | 1 | |
| 50 | R910591475 | GUIDE ROD | 1 | |
| 51 | R910803634 | SPRING BUSH | 1 | |
| 51 | R910803642 | SPRING BUSH | 1 | |
| 51 | R910583855 | RING | 1 | |
| 51 | R910578827 | THROTTLE SCREW | 1 | |
| 52 | R910591483 | SCREW PLUG | 1 | |
| 53 | R910807001 | SETSCREW | 1 | |
| 62 | R910110043 | SOCKET HEAD CAP SCREW | 8 | |
| 62 | R910100838 | SPRING LOCK WASHER | 8 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R910977277 | SLOTTED SPRING PIN | 1 | |
| 63 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 63 | R909831320 | DOUBLE BREAK-OFF PLUG | 2 | |
| 63 | R910516481 | O-RINGD | 1 | |
| 63 | R909153364 | SCREW PLUGD | 2 | |
| 64 | R909151692 | SCREW PLUGD | 1 | |
| 64 | R909151694 | SCREW PLUGD | 1 | |
| 66 | R909153816 | SCREW PLUGD | 1 |
