Baugruppe

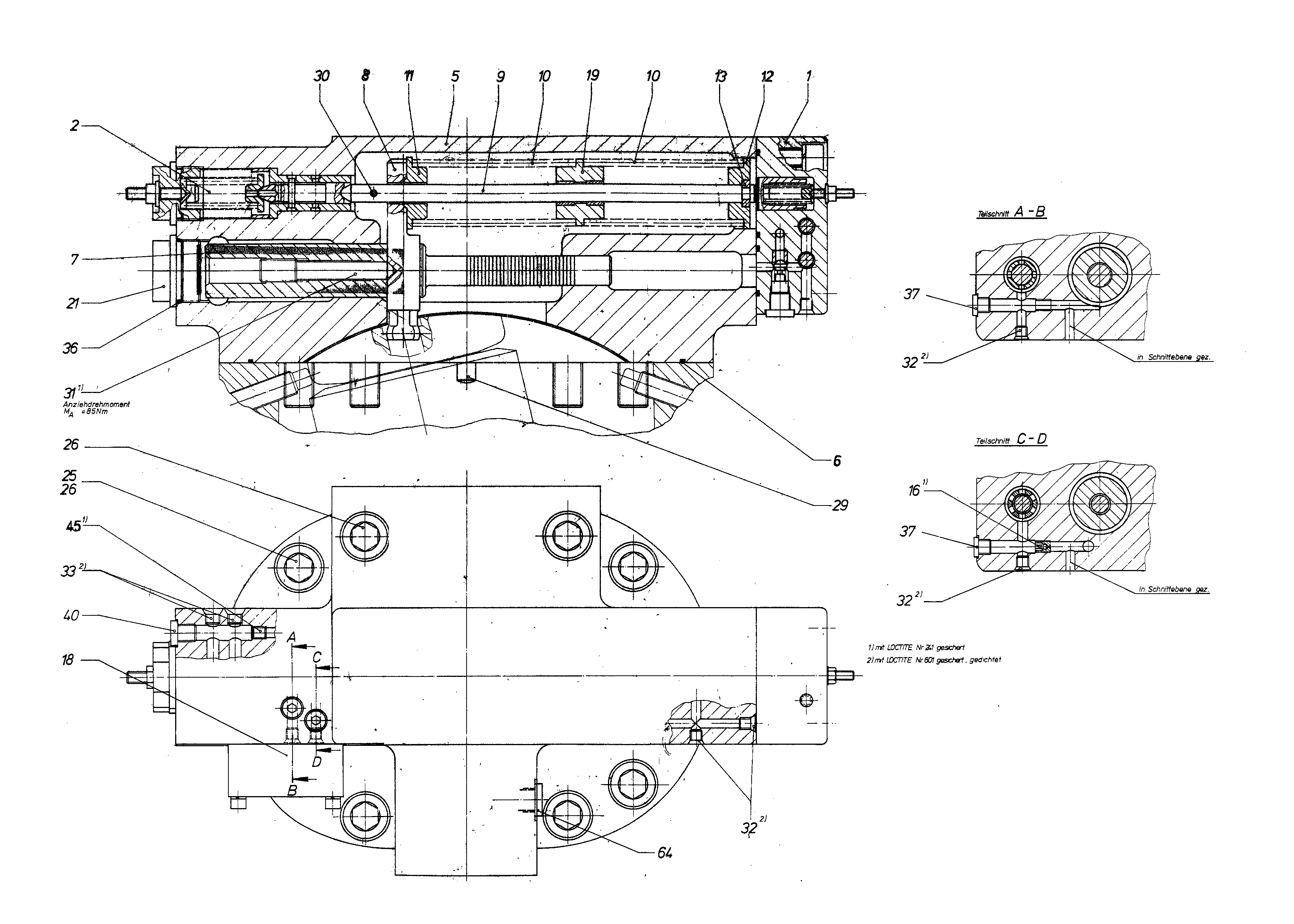

ADJUSTING PIECER910850683
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910590959 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910848271 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910810061 | COVER PLATE | 1 | ||
| R910945129 | O-RINGD | 1 | ||
| R910841846 | POSITIONING PISTON | 1 | ||
| R902413798 | POSITIONING STUD | 1 | ||
| R910591475 | GUIDE ROD | 1 | ||
| R910597015 | COMPRESSION SPRING | 2 | ||
| R910591416 | SPRING DISK | 1 | ||
| R910591459 | SPRING DISK | 1 | ||
| R910583855 | RING | 1 | ||
| R910578827 | THROTTLE SCREW | 1 | ||
| R910837555 | CONNECTING PIECE | 1 | ||
| R910597589 | SPRING GUIDE Stückliste der Baugruppe →L | 1 | ||
| R910591483 | SCREW PLUG | 1 | ||
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910977277 | SLOTTED SPRING PIN | 1 | ||
| R910807001 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 35 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| R910516481 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R910118664 | SETSCREW | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
