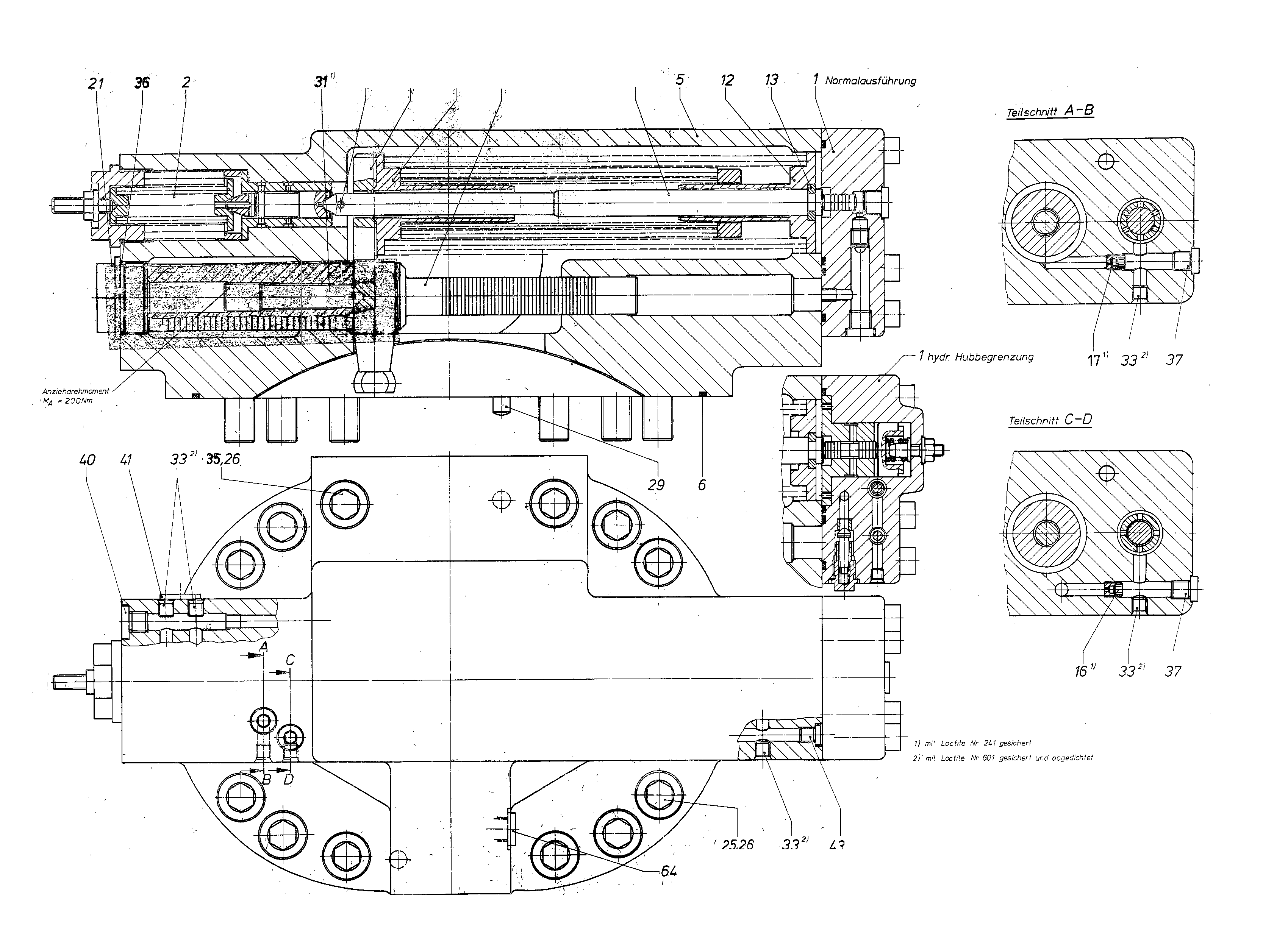

Baugruppe
CONTROLR910853534
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910594784 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910588547 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910802514 | COVER PLATE | 1 | ||
| R910801399 | O-RINGD | 1 | ||
| R910841994 | POSITIONING PISTON | 1 | ||
| 8 | R902413796 | POSITIONING STUD | 1 | |
| 9 | R910596752 | GUIDE ROD | 1 | |
| 11 | R910802522 | SPRING BUSH | 1 | |
| R910802549 | SPRING BUSH | 1 | ||
| R910582743 | RING | 1 | ||
| R910505943 | THROTTLING PLATE | 1 | ||
| R910508918 | THROTTLE SCREW | 1 | ||
| R910583758 | SCREW PLUG | 1 | ||
| R910705799 | SOCKET HEAD CAP SCREW | 10 | ||
| R910100838 | SPRING LOCK WASHER | 12 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| 30 | R910529206 | SLOTTED SPRING PIN | 1 | |
| R902533059 | SETSCREW | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910801402 | SOCKET HEAD CAP SCREW | 2 | ||
| R910586897 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
