Baugruppe

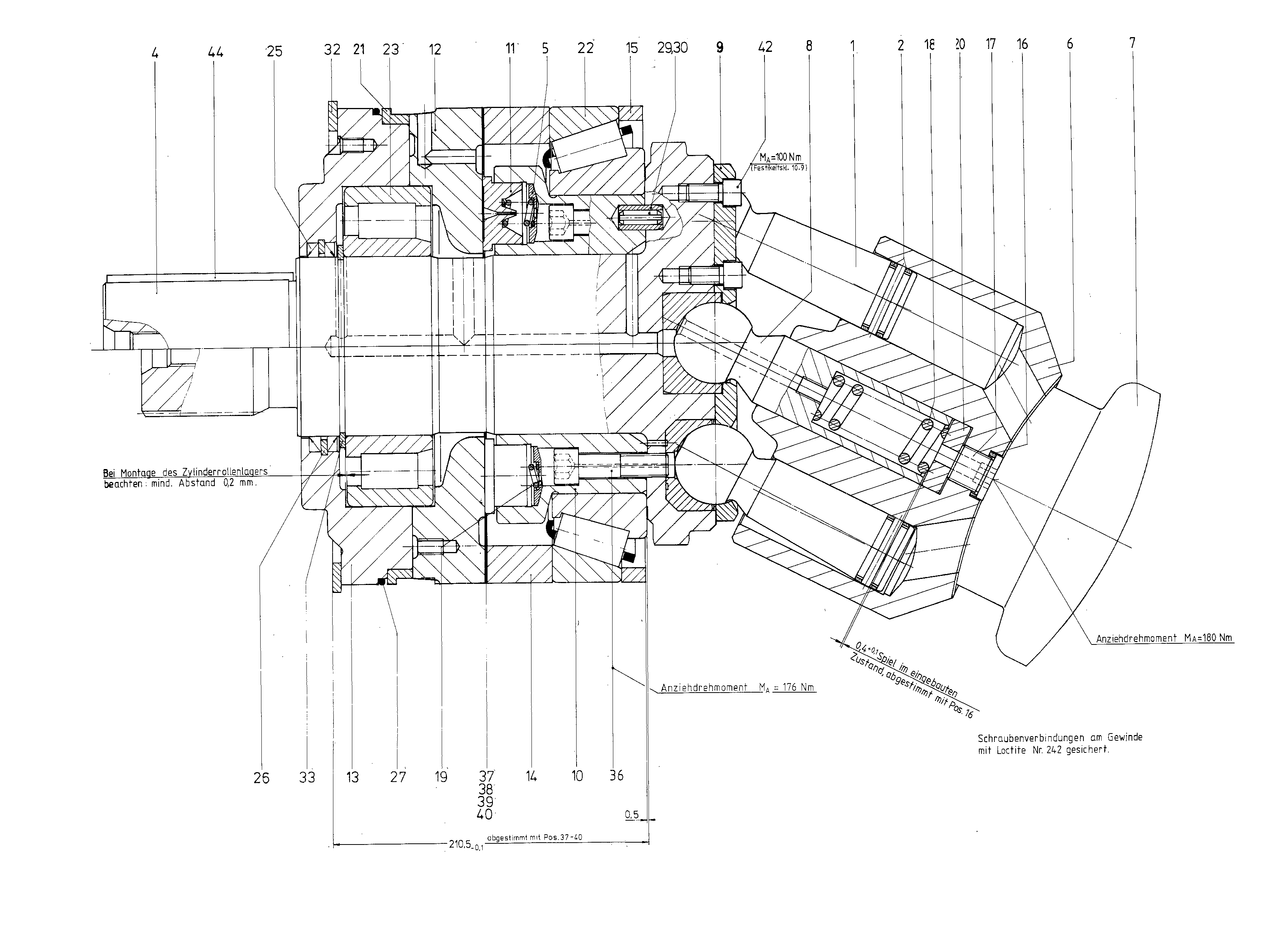

ROTARY GROUPR910860002
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902533119 | PISTON | 7 | ||
| R902414323 | DRIVE FLANGE | 1 | ||
| R910928715 | SPRING DISK | 7 | ||
| R910948239 | CYLINDER | 1 | ||
| R910860005 | CONTROL LENS Stückliste der Baugruppe →L | 1 | ||
| R902537509 | THRUST JOURNAL | 1 | ||
| R910935251 | RETAINING PLATE | 1 | ||
| R910741892 | PAD SUPPORT WITH SEAL | 1 | ||
| R910741973 | PAD | 7 | ||
| R910742651 | SLIDING DISC | 1 | ||
| R910906659 | SEALING FLANGE | 1 | ||
| R910741965 | SPACER RING | 1 | ||
| R910741949 | RING | 1 | ||
| R910934885 | SHIM RING | 1 | ||
| R910934888 | SPACER SCREW | 1 | ||
| R910934886 | SPRING | 1 | ||
| R910715247 | COMPRESSION SPRING | 7 | ||
| R910934647 | WASHER | 1 | ||
| R910905445 | RING | 1 | ||
| R902650821 | TAPERED-ROLLER BEARING | 1 | ||
| R910742139 | CYL. ROLLER BEARING | 1 | ||
| R910702684 | SHAFT SEALING RINGD | 2 | ||
| R910188697 | RETAINING RING | 1 | ||
| R910187364 | O-RINGD | 1 | ||
| R910107018 | SLOTTED SPRING PIN | 1 | ||
| R910921207 | SLOTTED SPRING PIN | 1 | ||
| R910638196 | RETAINING RING | 1 | ||
| R910742147 | RETAINING RING | 1 | ||
| R910928716 | SCREW | 7 | ||
| R910638242 | SHIM RING | 1 | ||
| R910638234 | SHIM RING | 1 | ||
| R910638226 | SHIM RING | 2 | ||
| R910194484 | SOCKET HEAD CAP SCREW | 14 |
