Baugruppe

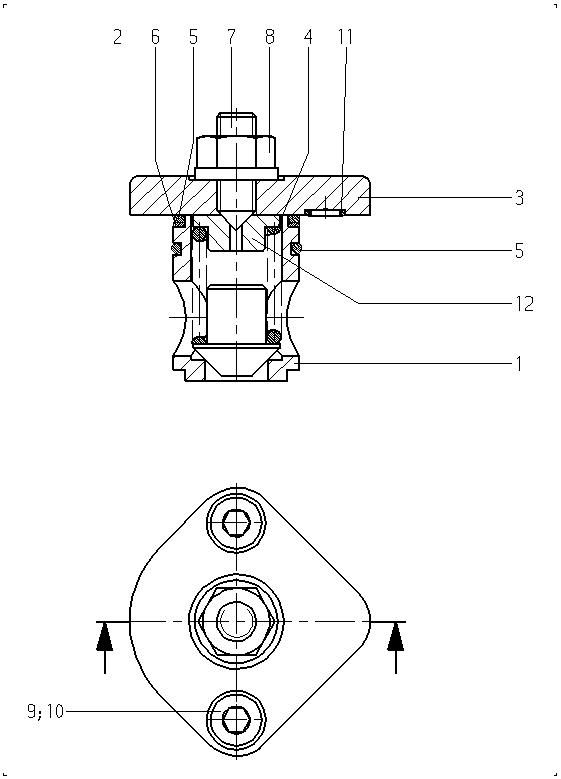

PILOT VALVER910900480
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910900482 | VALVE SEAT | 1 | ||
| R910387584 | VALVE CONE | 1 | ||
| R910900483 | COVER | 1 | ||
| R910316482 | COMPRESSION SPRING | 1 | ||
| R910470317 | O-RINGD | 2 | ||
| R910766585 | BACKUP RINGD | 1 | ||
| R910118796 | SETSCREW | 1 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R910104582 | HEXAGON SCREW | 2 | ||
| R910100757 | SPRING LOCK WASHER | 2 | ||
| R910274003 | O-RINGD | 1 | ||
| R910932141 | SPRING DISK | 1 |
