Baugruppe

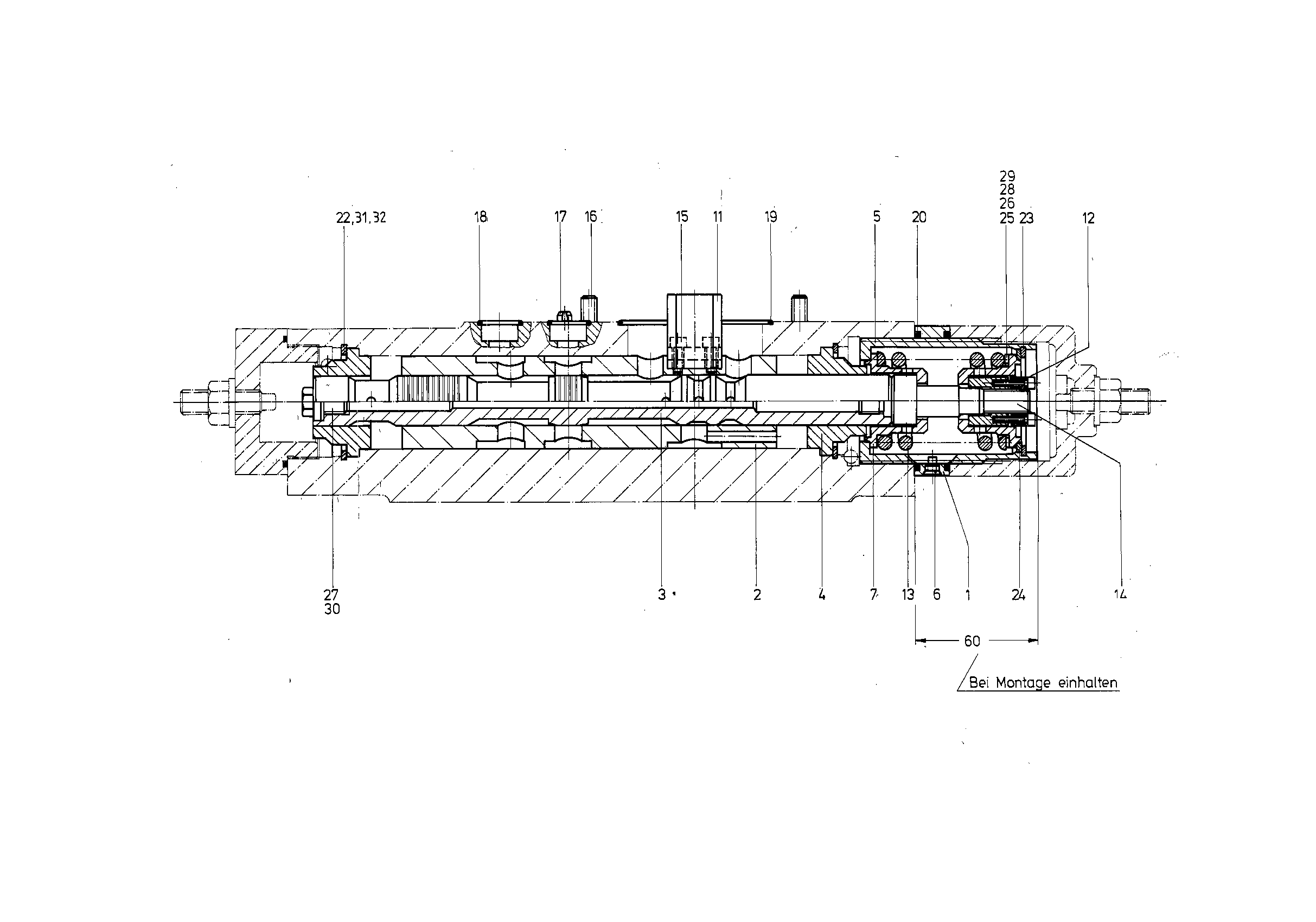

CONTROL MODULER910901342
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910616559 | ADJUSTING RING | 1 | |
| 2 | R910911951 | POSITIONING PISTON | 1 | |
| 3 | R910920258 | VALVE SPOOL | 1 | |
| R910784214 | PRECISION WASHER | 2 | ||
| R910423327 | SPRING SLEEV | 1 | ||
| R910684562 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910920231 | SPRING SLEEV | 2 | ||
| 11 | R910421103 | CARRIER | 1 | |
| R910920169 | ADJUSTMENT NUT Stückliste der Baugruppe →L | 1 | ||
| 13 | R910420549 | COMPRESSION SPRING | 1 | |
| 14 | R910920223 | STUD BOLT | 1 | |
| 15 | R910109215 | SOCKET HEAD CAP SCREW | 2 | |
| 16 | R910109576 | SOCKET HEAD CAP SCREW | 4 | |
| 17 | R900002645 | SLOTTED SPRING PIN | 2 | |
| R910111082 | O-RINGD | 2 | ||
| R910111805 | O-RINGD | 1 | ||
| R910111775 | O-RINGD | 2 | ||
| 22 | R910902101 | RETAINING RING | 2 | |
| 23 | R910105996 | RETAINING RING | 1 | |
| R910105473 | SUPPORTING DISC | 1 | ||
| 25 | R910122939 | SHIM RING | 5 | |
| 26 | R910122912 | SHIM RING | 1 | |
| 27 | R910125032 | SCREW PLUG | 1 | |
| R910122904 | SHIM RING | 1 | ||
| R910126284 | SHIM RING | 2 | ||
| R910100277 | SEAL RINGD | 1 |
