Baugruppe

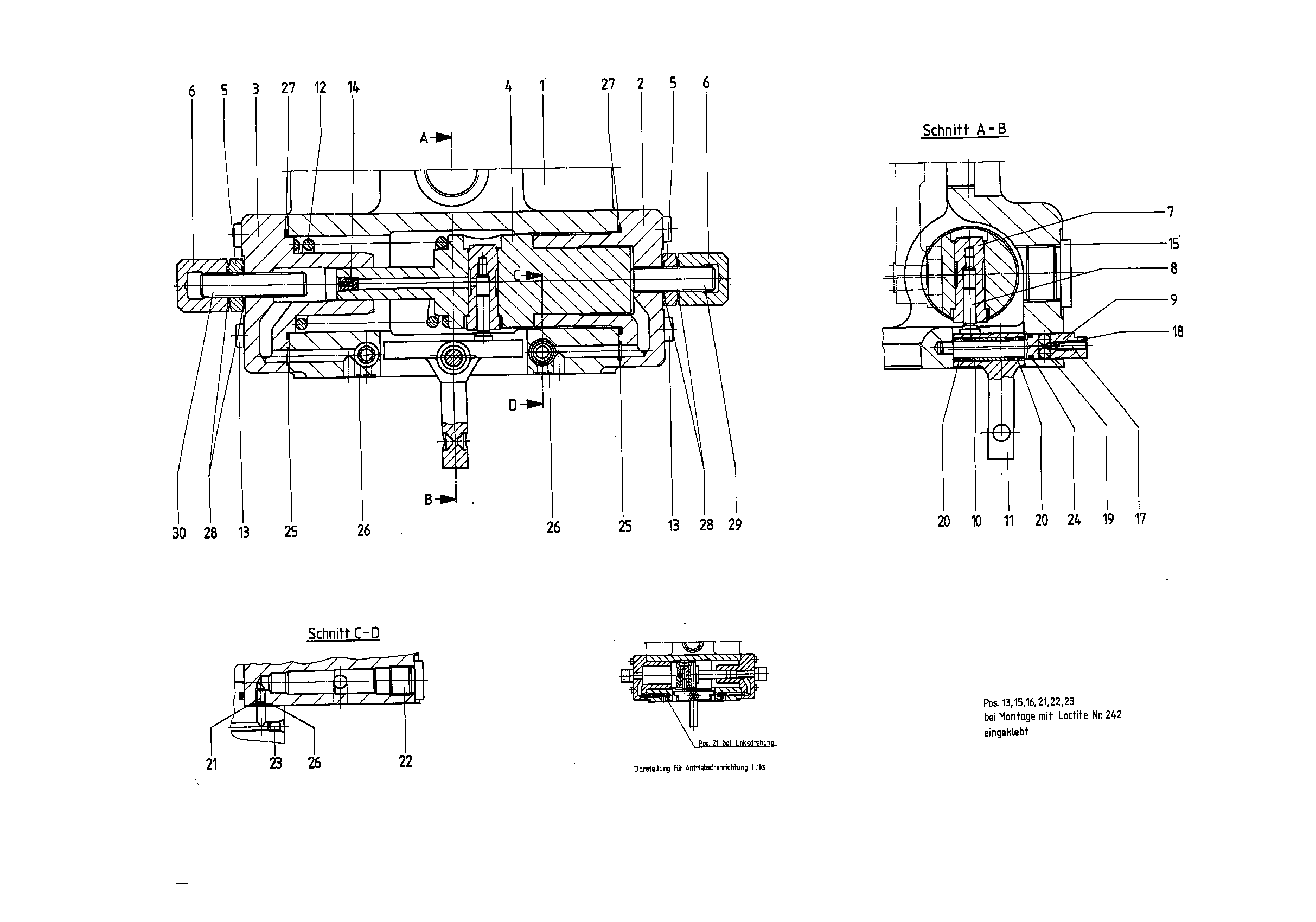

ADJUSTING PIECER910903153
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910908003 | PUMP HOUSING | 1 | |
| R910945978 | PISTON HOUSING | 1 | ||
| R910945951 | PISTON HOUSING | 1 | ||
| 4 | R902531043 | ADJUSTING PISTON | 1 | |
| R910903390 | NUT | 2 | ||
| R910903349 | CAP NUT | 2 | ||
| 7 | R910903146 | BUSHING | 1 | |
| R902541214 | PISTON PAD | 1 | ||
| R910903144 | ECCENTRIC PIN | 1 | ||
| 10 | R910903147 | SPACER SLEEVE | 1 | |
| 11 | R910905244 | LEVER | 1 | |
| 12 | R910943109 | COMPRESSION SPRING | 1 | |
| 13 | R910231991 | SOCKET HEAD CAP SCREW | 8 | |
| 14 | R910836761 | NOZZLE | 1 | |
| 15 | R909153365 | SCREW PLUGD | 1 | |
| 17 | R910977212 | SETSCREW | 1 | |
| 18 | R910199001 | BALL | 1 | |
| 19 | R910150282 | BALL | 2 | |
| R910903156 | NEEDLE-ROLLER ASSEMBLY | 2 | ||
| 21 | R910678899 | SETSCREW | 1 | |
| R909151979 | SCREW PLUGD | 2 | ||
| 23 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| R910514543 | O-RINGD | 1 | ||
| R910942134 | R-RINGD | 2 | ||
| R910942134 | R-RINGD | 2 | ||
| R910800379 | O-RINGD | 2 | ||
| 28 | R910515124 | O-RINGD | 4 | |
| 29 | R902519538 | STUD BOLT | 1 | |
| 30 | R902519539 | STUD BOLT | 1 |
