Baugruppe

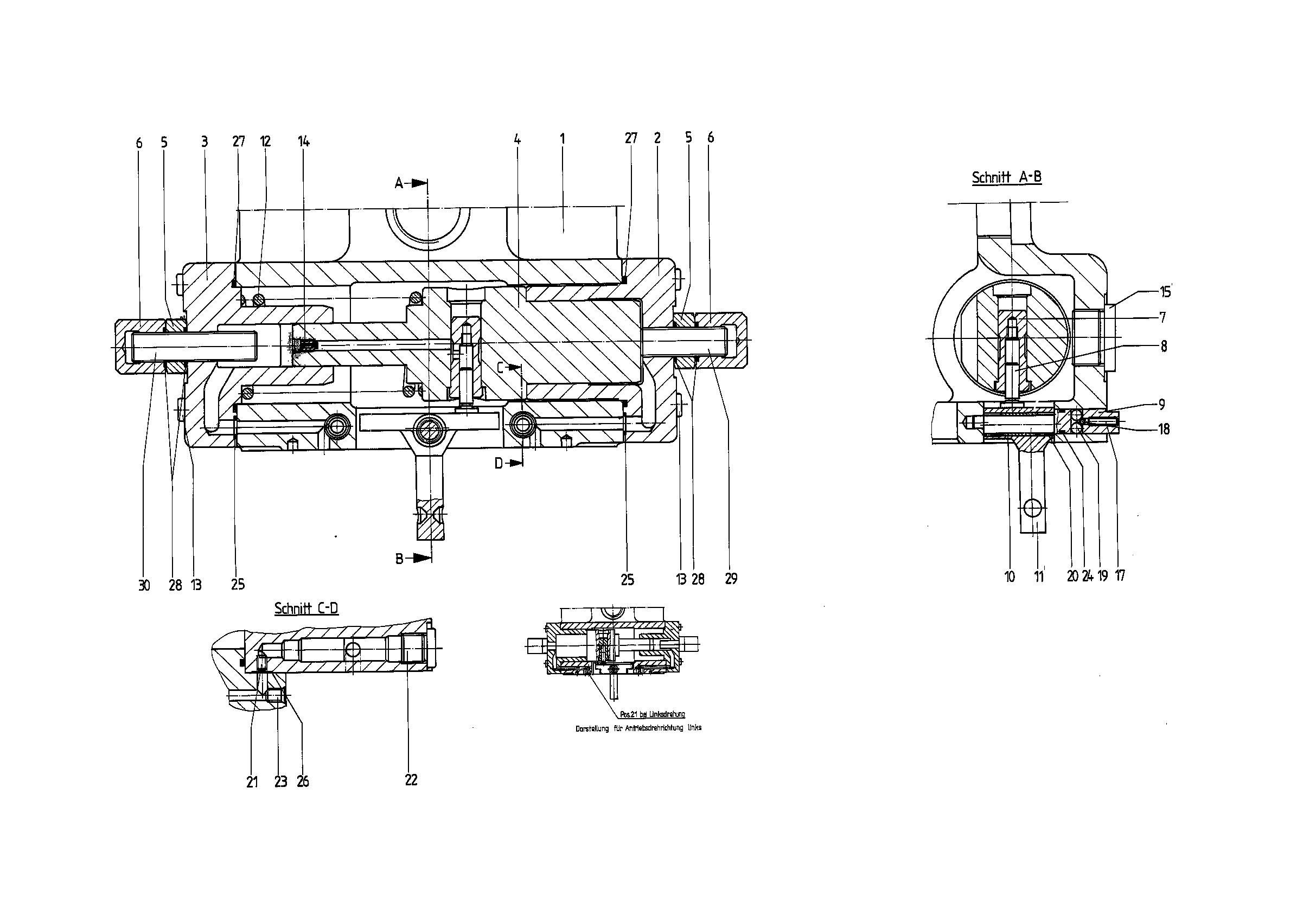

ADJUSTING PIECER910904373
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910906684 | PUMP HOUSING | 1 | ||
| R902555542 | PISTON HOUSING | 1 | ||
| R910907979 | PISTON HOUSING | 1 | ||
| R902531044 | ADJUSTING PISTON | 1 | ||
| R910903387 | NUT | 2 | ||
| R910903389 | CAP NUT | 2 | ||
| R910903146 | BUSHING | 1 | ||
| R902541214 | PISTON PAD | 1 | ||
| R910979176 | ECCENTRIC PIN | 1 | ||
| R910903147 | SPACER SLEEVE | 1 | ||
| R910905244 | LEVER | 1 | ||
| R910943108 | COMPRESSION SPRING | 1 | ||
| R910119091 | SOCKET HEAD CAP SCREW | 8 | ||
| R910836761 | NOZZLE | 1 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R910977212 | SETSCREW | 1 | ||
| R910199001 | BALL | 1 | ||
| R910150282 | BALL | 2 | ||
| R910903156 | NEEDLE-ROLLER ASSEMBLY | 2 | ||
| R910678899 | SETSCREW | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910514543 | O-RINGD | 1 | ||
| R910942134 | R-RINGD | 2 | ||
| R910942134 | R-RINGD | 2 | ||
| R910530492 | O-RINGD | 2 | ||
| R910401803 | O-RINGD | 4 | ||
| R902519540 | STUD BOLT | 1 | ||
| R902519541 | STUD BOLT | 1 |
