Baugruppe

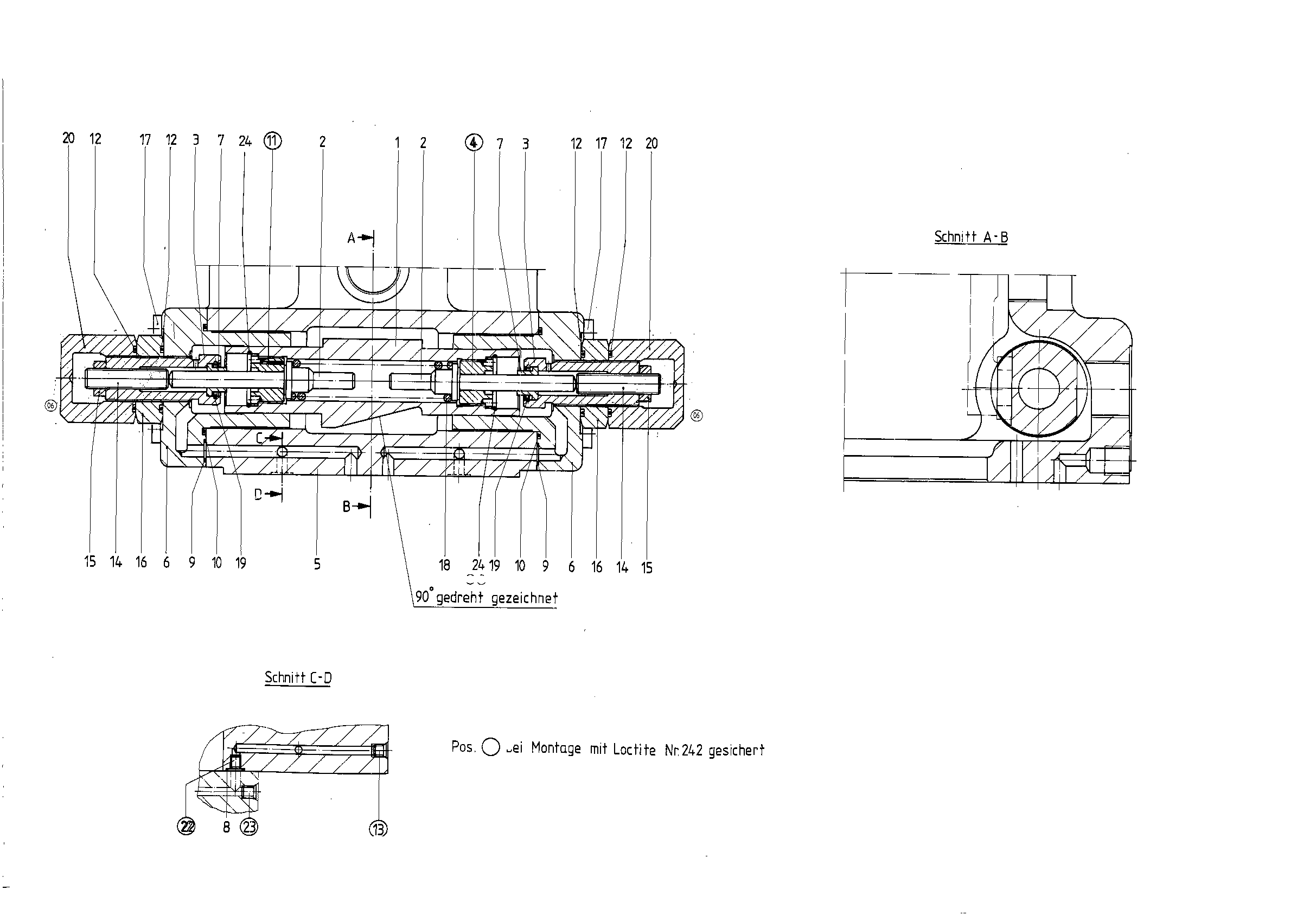

ADJUSTING PIECER910906089
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902549196 | ADJUSTING PISTON | 1 | ||
| R910902261 | PRESSURE PISTON | 2 | ||
| R902555522 | STOP SCREW | 2 | ||
| R910973894 | PISTON GUIDE | 1 | ||
| R910922438 | PUMP HOUSING | 1 | ||
| 6 | R910901044 | PISTON HOUSING | 2 | |
| R910942134 | R-RINGD | 2 | ||
| 9 | R910942134 | R-RINGD | 2 | |
| 10 | R910800379 | O-RINGD | 2 | |
| R910973893 | PISTON GUIDE | 1 | ||
| 12 | R910514896 | O-RINGD | 4 | |
| 13 | — | DOUBLE BREAK-OFF PLUG | 1 | |
| 14 | R902519559 | STUD BOLT | 2 | |
| 15 | R910125865 | HEXAGON NUT | 2 | |
| 16 | R910912241 | NUT | 2 | |
| 17 | R910231991 | SOCKET HEAD CAP SCREW | 8 | |
| 18 | R910902278 | SPRING | 1 | |
| 20 | R910912240 | CAP NUT | 2 | |
| 22 | — | DOUBLE BREAK-OFF PLUG | 1 | |
| 23 | — | DOUBLE BREAK-OFF PLUG | 1 | |
| 24 | — | SNAP RING | 2 |
