Baugruppe

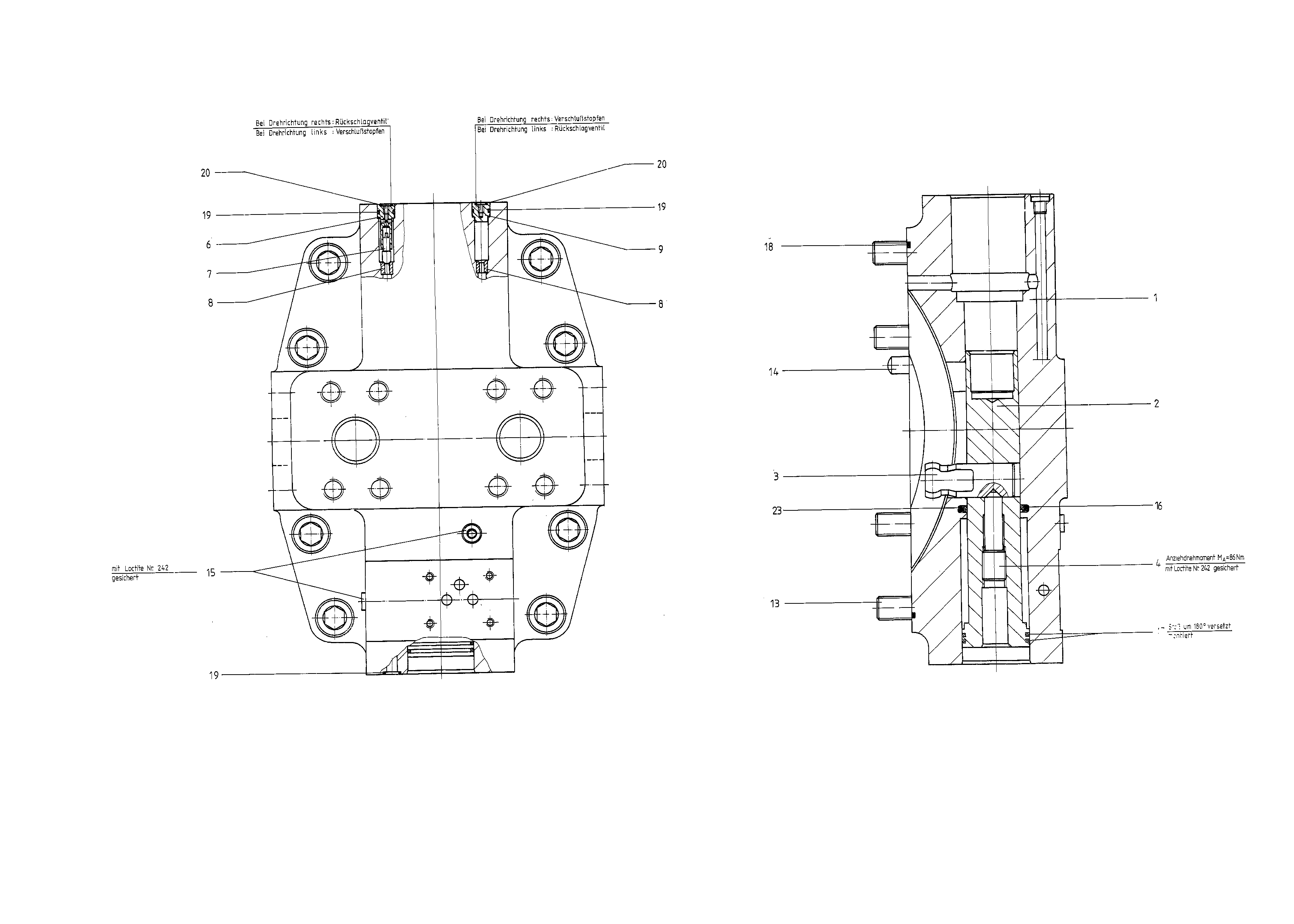

ADJUSTING PIECER910907976
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910907975 | COVER PLATE | 1 | |
| 2 | R902538879 | POSITIONING PISTON | 1 | |
| R902413801 | POSITIONING STUD | 1 | ||
| 4 | R902475687 | SETSCREW | 1 | |
| 6 | R910801624 | VALVE GUIDE | 1 | |
| R909426662 | BOLT | 1 | ||
| 8 | R902209845 | BUSHING | 2 | |
| 9 | R910801871 | PLUG | 1 | |
| 13 | R910126411 | SOCKET HEAD CAP SCREW | 8 | |
| R910910938 | STRAIGHT PIN | 2 | ||
| 15 | R909156863 | SCREW PLUGD | 4 | |
| 16 | R910911475 | ROD SEALD | 1 | |
| 17 | R910801096 | RECTANGULAR RINGD | 2 | |
| R910917440 | O-RINGD | 1 | ||
| R910593168 | O-RINGD | 5 | ||
| 20 | R910971118 | O-RINGD | 2 | |
| R910911474 | O-RINGD | 1 |
