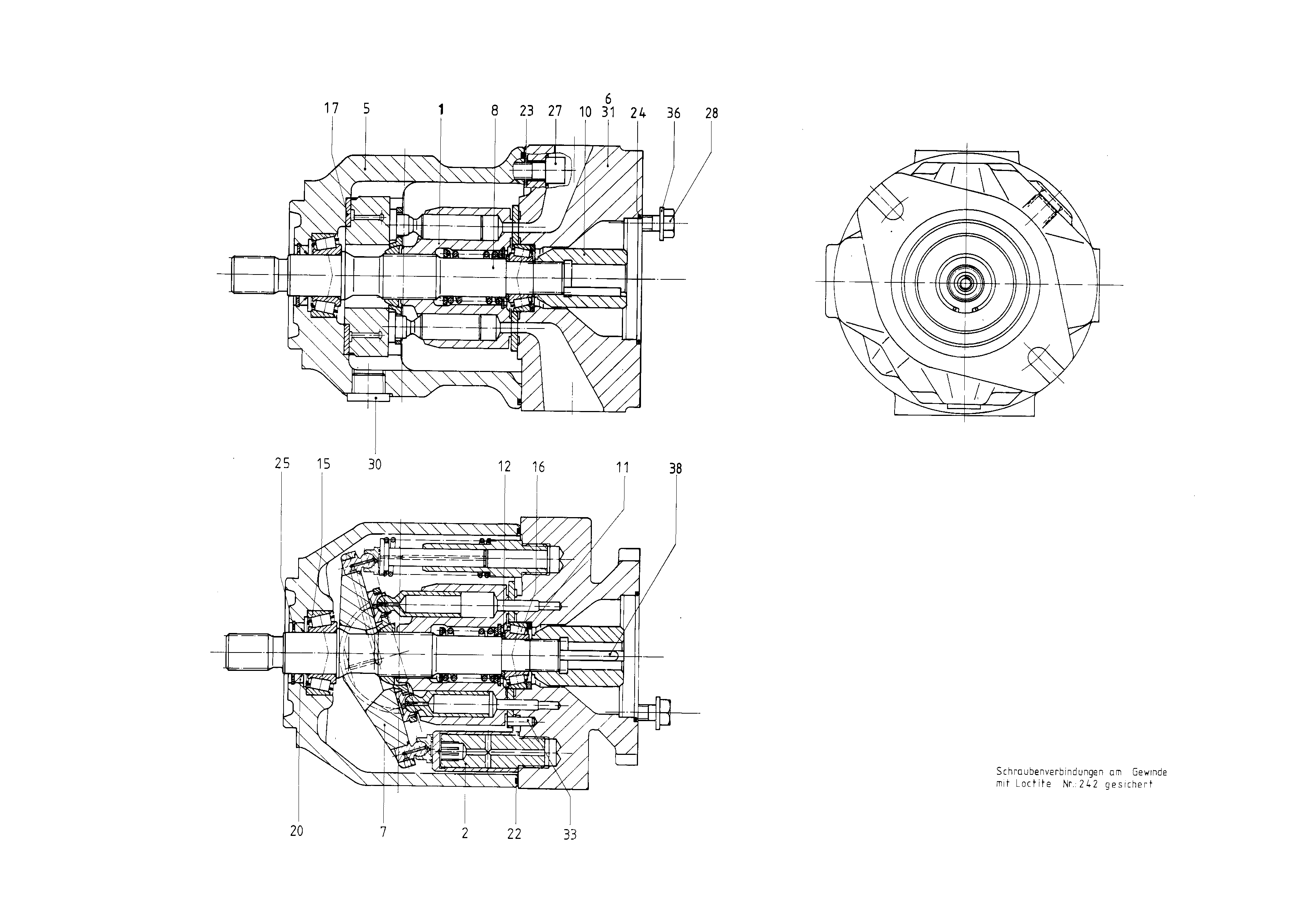

Baugruppe
BASE UNITR910910248
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902435271 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902538142 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902546050 | PUMP HOUSING | 1 | ||
| 6 | R902413110 | CONNECTION PLATE | 1 | |
| R910961024 | SWASH PLATE Stückliste der Baugruppe →L | 1 | ||
| R902417395 | DRIVE SHAFT | 1 | ||
| 10 | R910943690 | HUB | 1 | |
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| 16 | R910704954 | TAPERED-ROLLER BEARING | 1 | |
| R910900198 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R910704997 | O-RINGD | 1 | ||
| 23 | R913052114 | R-RINGD | 4 | |
| 24 | R910111945 | O-RINGD | 1 | |
| R902403814 | RETAINING RING | 1 | ||
| 27 | R910220264 | SOCKET HEAD CAP SCREW | 4 | |
| 30 | R909153339 | SCREW PLUGD | 1 | |
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| R910905570 | PARALLEL KEY | 1 |
