Baugruppe
COVERR910913474

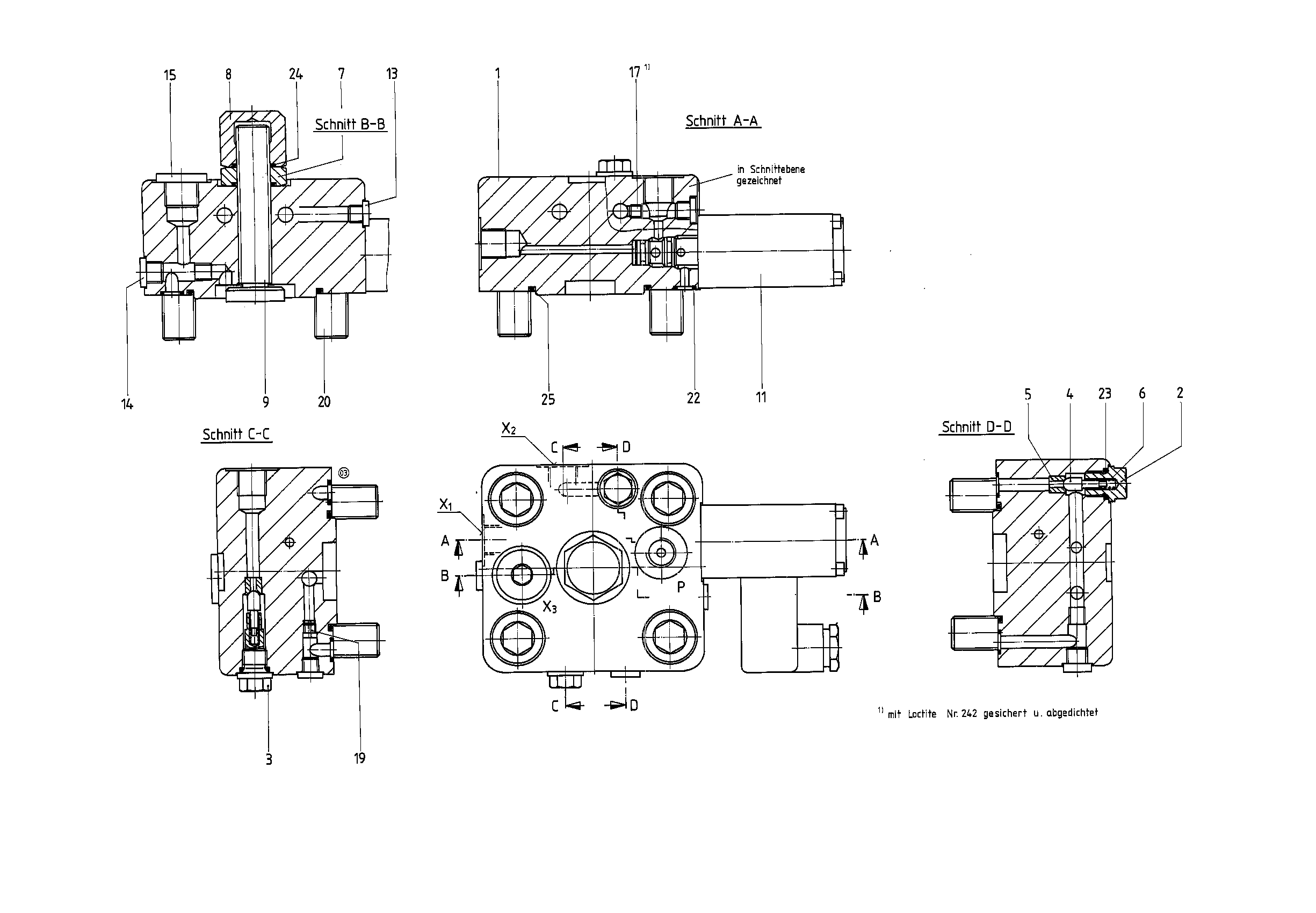

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910913477 | COVER | 1 | |
| 2 | R910805823 | SCREW PLUG | 1 | |
| R910909488 | SCREW PLUG | 1 | ||
| R909426662 | BOLT | 2 | ||
| 5 | R910802973 | BUSHING | 2 | |
| 6 | R910806137 | COMPRESSION SPRING | 2 | |
| 7 | R910903326 | NUT | 1 | |
| 8 | R910903327 | CAP NUT | 1 | |
| R910921333 | STOP | 1 | ||
| 11 | R902492527 | PRESSURE REDUCING VALVE Stückliste der Baugruppe →L | 1 | |
| 13 | R909154024 | SCREW PLUGD | 3 | |
| 14 | R909153364 | SCREW PLUGD | 2 | |
| 15 | R909153816 | SCREW PLUGD | 1 | |
| 17 | R910100943 | SETSCREW | 1 | |
| 19 | R910836761 | NOZZLE | 1 | |
| R910189707 | SOCKET HEAD CAP SCREW | 4 | ||
| R910513407 | O-RINGD | 6 | ||
| 23 | R910513458 | O-RINGD | 2 | |
| 24 | R910827916 | O-RINGD | 2 | |
| R910342157 | O-RINGD | 1 |
