Baugruppe

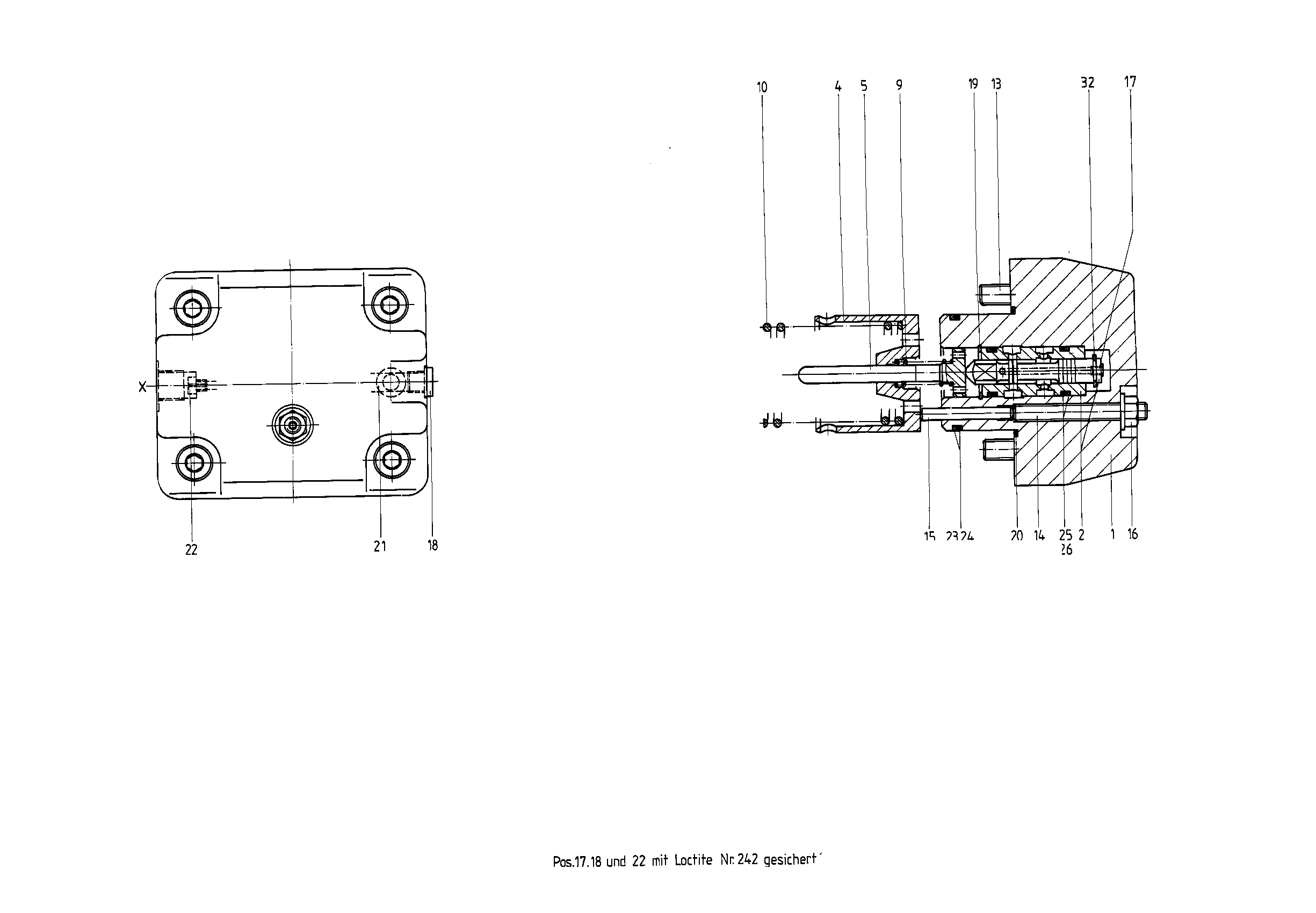

CONTROL PARTR910913744
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910908557 | CONTROL HOUSING | 1 | ||
| R910912630 | CONTROL PISTON | 1 | ||
| R910900221 | ADJUSTING BUSHING | 1 | ||
| R910908493 | SPRING BOLT | 1 | ||
| R910900224 | COMPRESSION SPRING | 1 | ||
| R910900226 | COMPRESSION SPRING | 1 | ||
| R910120308 | SOCKET HEAD CAP SCREW | 4 | ||
| R910663808 | SETSCREW | 1 | ||
| R910900227 | STRAIGHT PIN | 1 | ||
| R910516082 | DUMMY | 1 | ||
| R909083488 | SETSCREW | 1 | ||
| R909153364 | SCREW PLUG | 1 | ||
| R910908498 | RETAINING RING | 1 | ||
| R910513598 | O-RING | 1 | ||
| R910513458 | O-RING | 1 | ||
| R910100579 | NOZZLE | 1 | ||
| R910534528 | O-RING | 1 | ||
| R910907777 | BACKUP RING | 1 | ||
| R910149624 | O-RING | 2 | ||
| R910907778 | DUMMY | 2 | ||
| R910913746 | RETAINING RING | 1 |
