Baugruppe

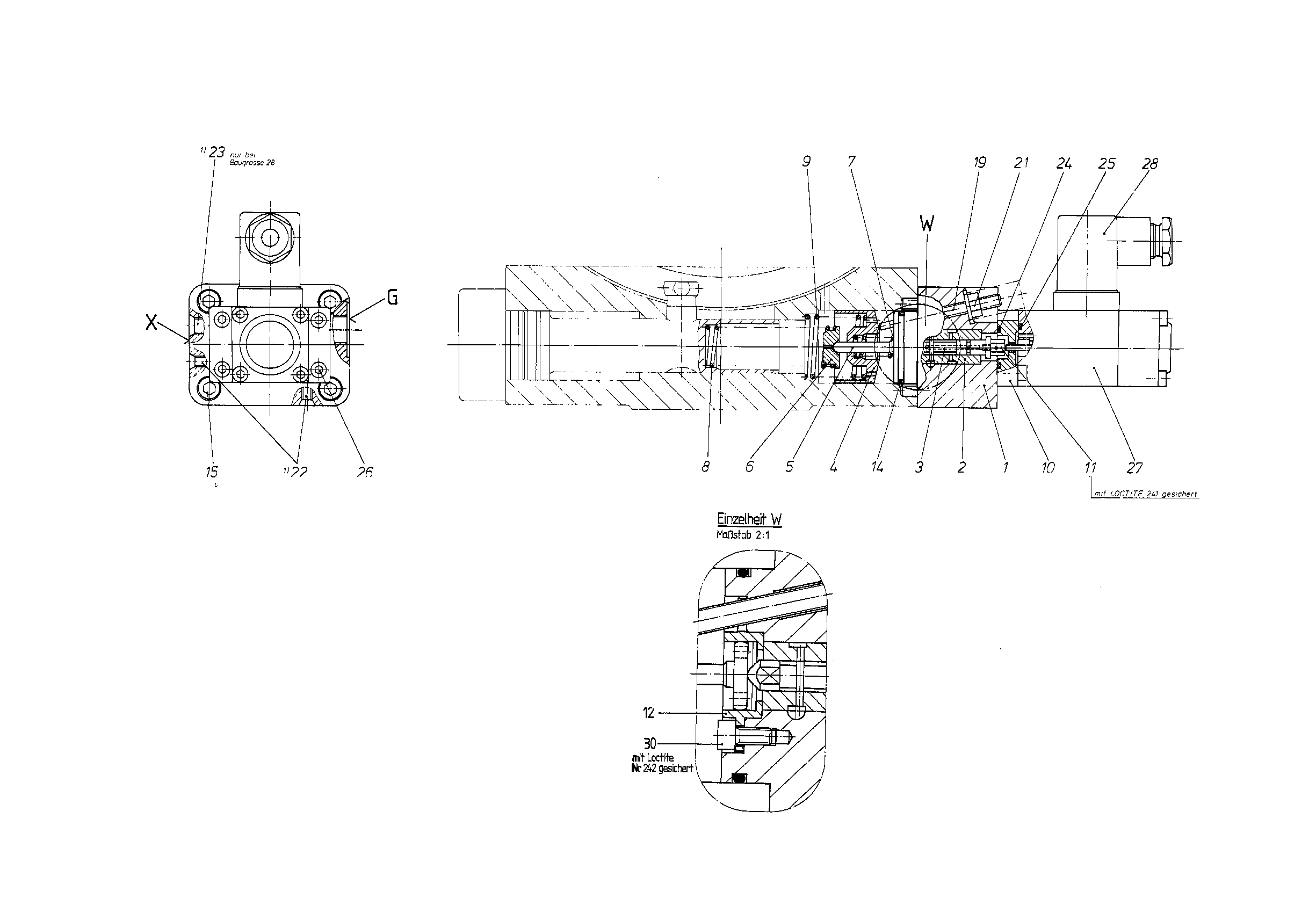

CONTROL PARTR910914910
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910801736 | CONTROL HOUSING | 1 | ||
| R909412246 | CONTROL SLEEVE | 1 | ||
| R909412266 | CONTROL PISTON | 1 | ||
| R910801595 | ADJUSTING BUSHING | 1 | ||
| 5 | R909418761 | SPRING BOLT | 1 | |
| R910801587 | SPRING DISK | 1 | ||
| R910801625 | COMPRESSION SPRING | 1 | ||
| 8 | R910801789 | COMPRESSION SPRING | 1 | |
| R910801627 | COMPRESSION SPRING | 1 | ||
| R910801605 | INTERMEDIATE PLATE | 1 | ||
| 11 | R910801584 | STOP SCREW | 1 | |
| 12 | R910924892 | STOP BUSHING | 1 | |
| R910513571 | O-RINGD | 1 | ||
| R910109509 | SOCKET HEAD CAP SCREW | 4 | ||
| R910545422 | SETSCREW | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| 23 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R910514993 | O-RINGD | 1 | ||
| 25 | R910575046 | O-RINGD | 1 | |
| R910120111 | SOCKET HEAD CAP SCREW | 4 | ||
| R910803236 | PROPORTIONAL SOLENOID Stückliste der Baugruppe →L | 1 | ||
| 28 | R913022795 | PLUG-IN CONNECTOR | 1 | |
| 30 | R910119512 | SOCKET HEAD CAP SCREW | 4 |
