Baugruppe

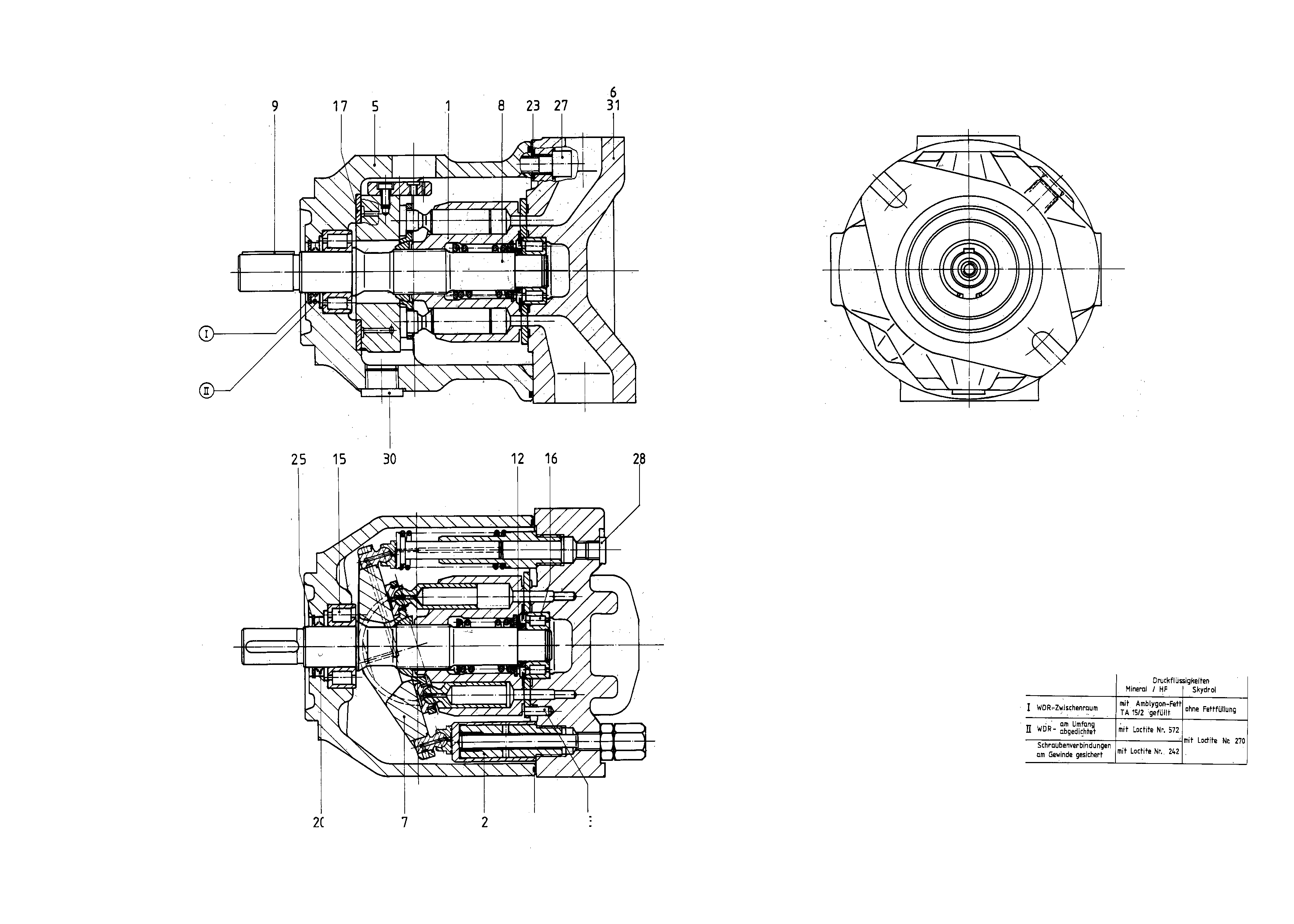

BASE UNITR910915465
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902559903 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902538142 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902546049 | PUMP HOUSING | 1 | ||
| R910948144 | CONNECTION PLATE | 1 | ||
| R910961029 | SWASH PLATE Stückliste der Baugruppe →L | 1 | ||
| R902417378 | DRIVE SHAFT | 1 | ||
| R910103438 | PARALLEL KEY | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 2 | ||
| R910710911 | CYL. ROLLER BEARING | 1 | ||
| R910710938 | CYL. ROLLER BEARING | 1 | ||
| R910900198 | BEARING SHELL | 2 | ||
| R910916104 | SHAFT SEALING RINGD | 1 | ||
| 22 | R910704997 | O-RINGD | 1 | |
| R913052114 | R-RINGD | 4 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 33 | R902533908 | STRAIGHT PIN | 1 |
