Baugruppe

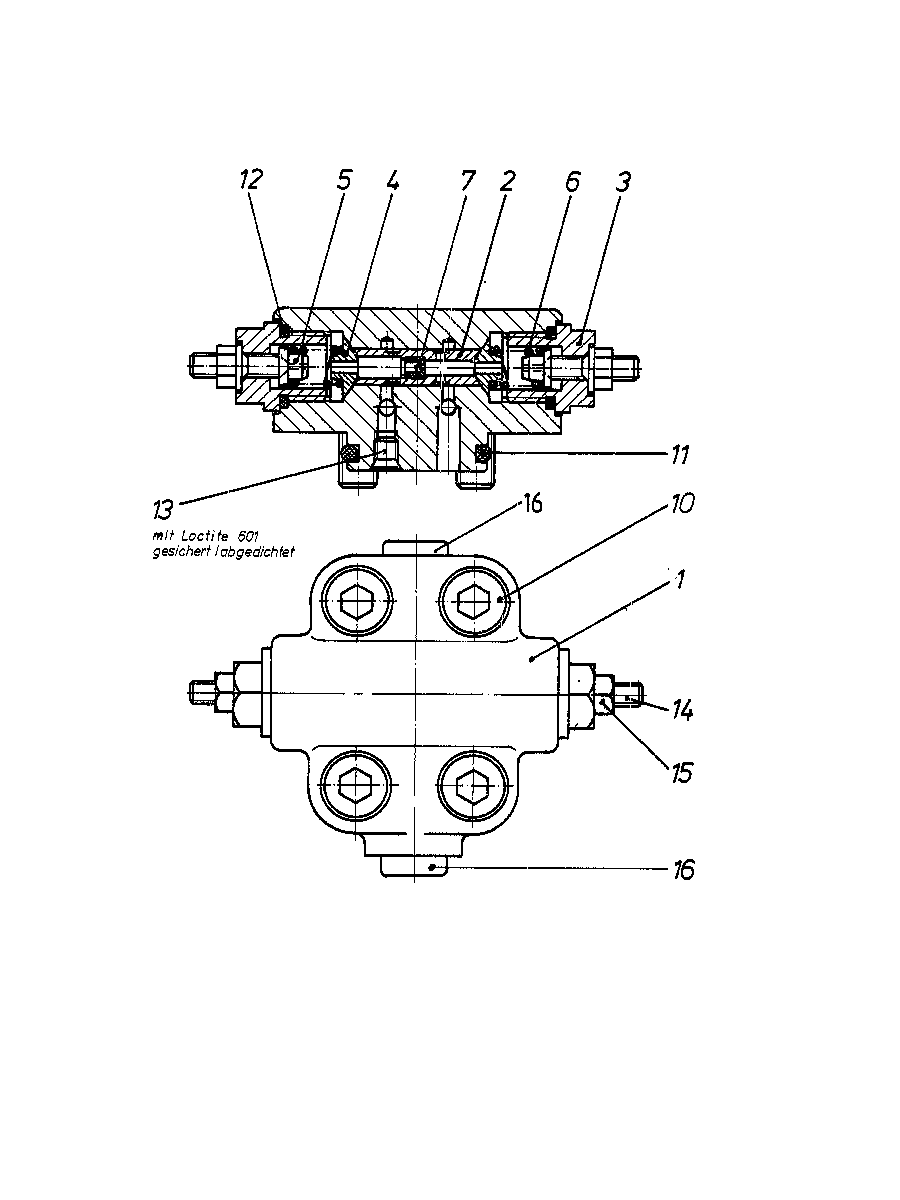

SWIVEL TIME LIMITING VALVER910916533
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910916535 | HOUSING | 1 | ||
| R909077836 | PISTON | 1 | ||
| R909077837 | SCREW PLUG | 2 | ||
| R909077334 | SPRING DISK | 2 | ||
| R902531131 | SPRING DISK | 2 | ||
| R910591955 | COMPRESSION SPRING | 2 | ||
| R909077838 | THROTTLE SCREW | 1 | ||
| R910109789 | SOCKET HEAD CAP SCREW | 4 | ||
| R910103896 | O-RINGD | 1 | ||
| R910514985 | O-RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153284 | SETSCREW | 2 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909151692 | SCREW PLUGD | 2 |
