Baugruppe

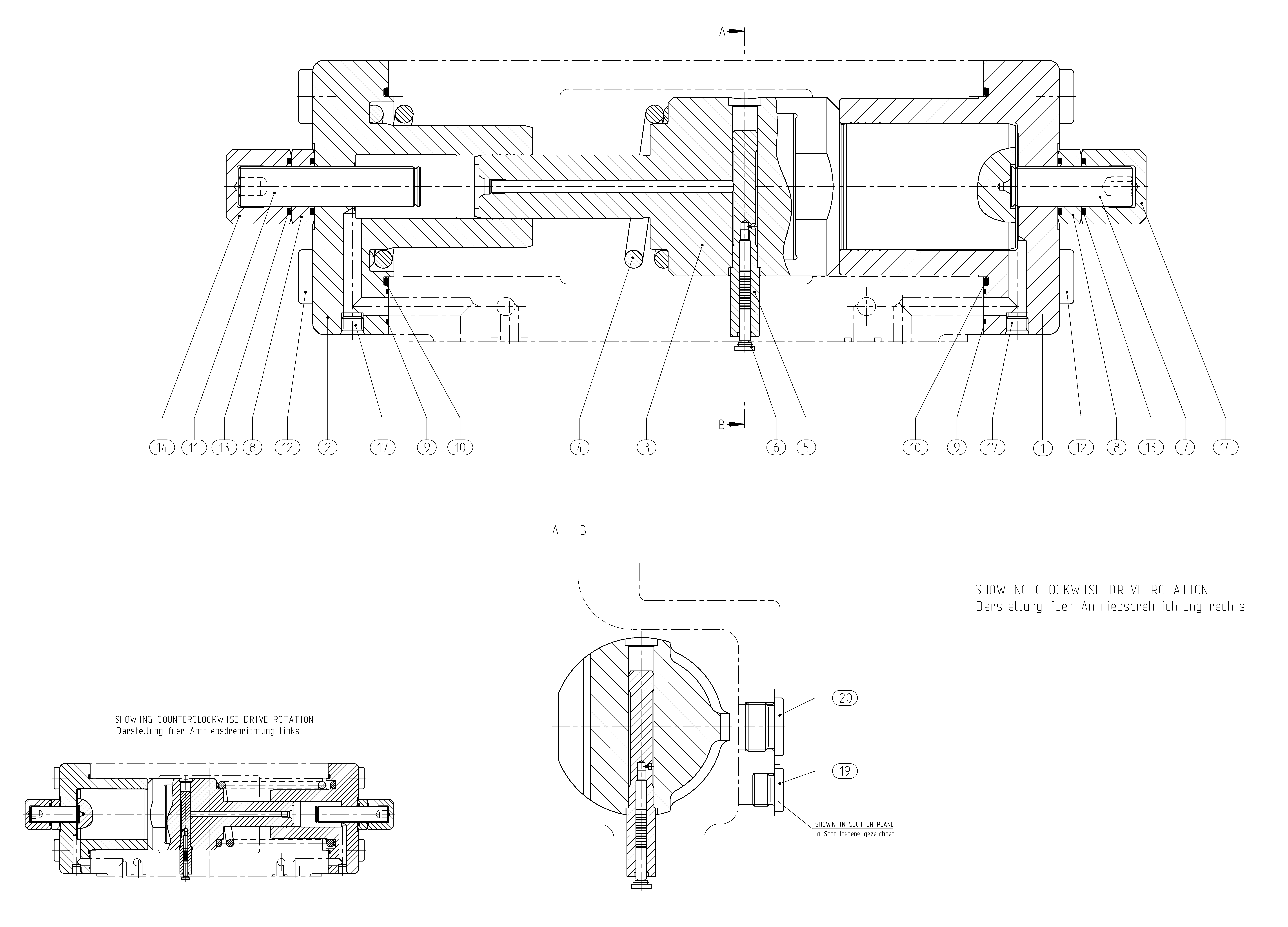

ADJUSTING PIECER910916777
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910912243 | PISTON HOUSING | 1 | ||
| R910912244 | PISTON HOUSING | 1 | ||
| R902530851 | ADJUSTING PISTON | 1 | ||
| R910943110 | COMPRESSION SPRING | 1 | ||
| R910984915 | BUSHING | 1 | ||
| R902548429 | PISTON PAD | 1 | ||
| R902519550 | STUD BOLT | 1 | ||
| R910912241 | NUT | 2 | ||
| R910514993 | O-RINGD | 2 | ||
| R910977052 | O-RINGD | 2 | ||
| R902519552 | STUD BOLT | 1 | ||
| R902572932 | SOCKET HEAD CAP SCREW | 8 | ||
| R910514896 | O-RINGD | 4 | ||
| R910912240 | CAP NUT | 2 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153365 | SCREW PLUGD | 1 |
