Baugruppe

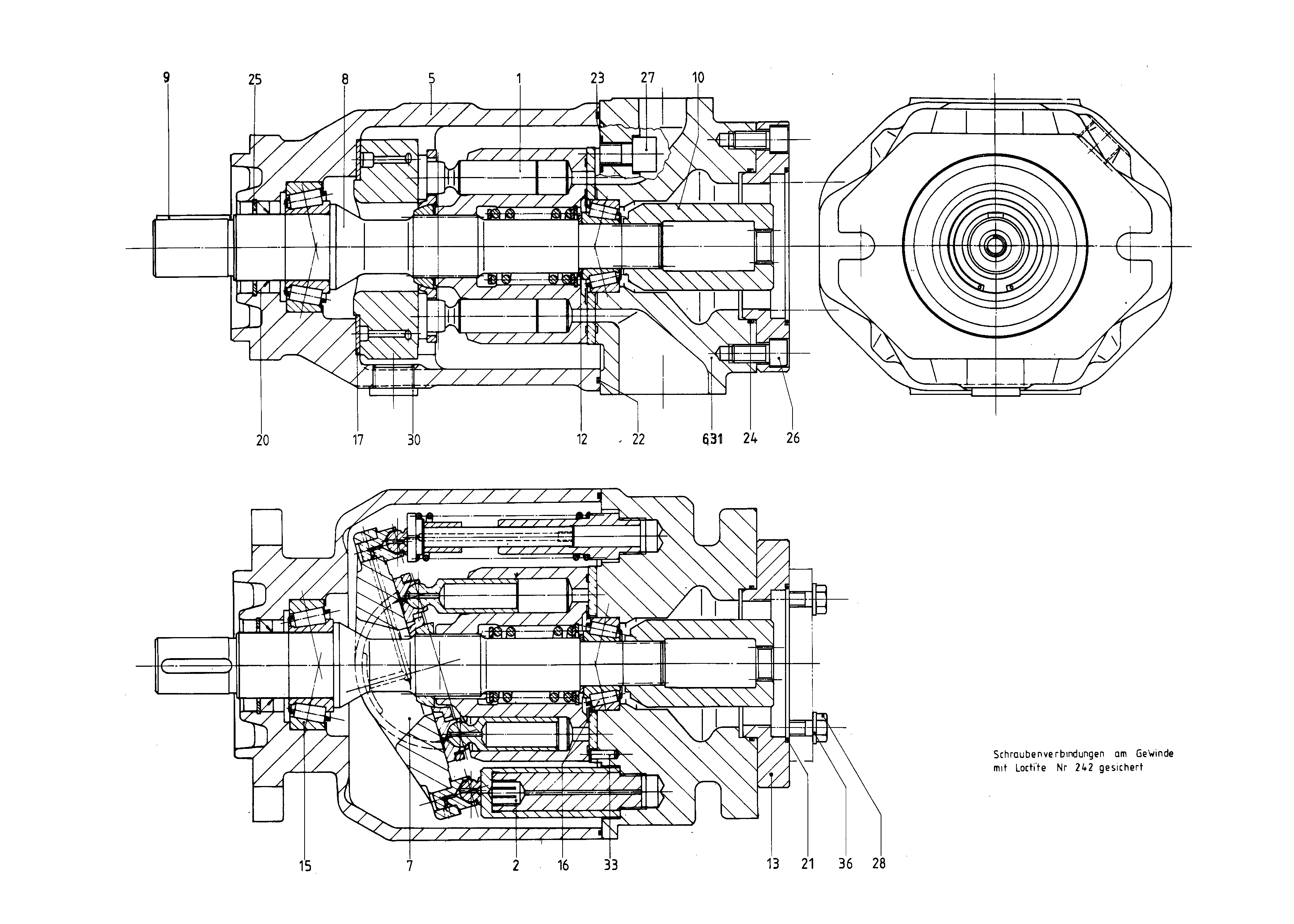

BASE UNITR910918844
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910906871 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| 2 | R910913785 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | |
| 5 | R910906802 | PUMP HOUSING | 1 | |
| 6 | R910931150 | CONNECTION PLATE | 1 | |
| R910961050 | SWASH PLATE Stückliste der Baugruppe →L | 1 | ||
| 8 | R910987697 | DRIVE SHAFT | 1 | |
| 9 | R910923559 | PARALLEL KEY | 1 | |
| 10 | R910943748 | SPLINED COUPLING | 1 | |
| 12 | R910906878 | ADJUSTMENT SHIM | 1 | |
| 13 | R910918216 | INTERMEDIATE FLANGE | 1 | |
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R910113174 | SHAFT SEALING RINGD | 1 | ||
| 21 | R910397962 | O-RINGD | 1 | |
| R910906911 | O-RINGD | 1 | ||
| R913068283 | R-RINGD | 4 | ||
| 24 | R910384259 | O-RINGD | 1 | |
| R909832149 | RETAINING RING | 1 | ||
| R910109754 | SOCKET HEAD CAP SCREW | 2 | ||
| 27 | R910389714 | SOCKET HEAD CAP SCREW | 4 | |
| R909153365 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 |
