Baugruppe

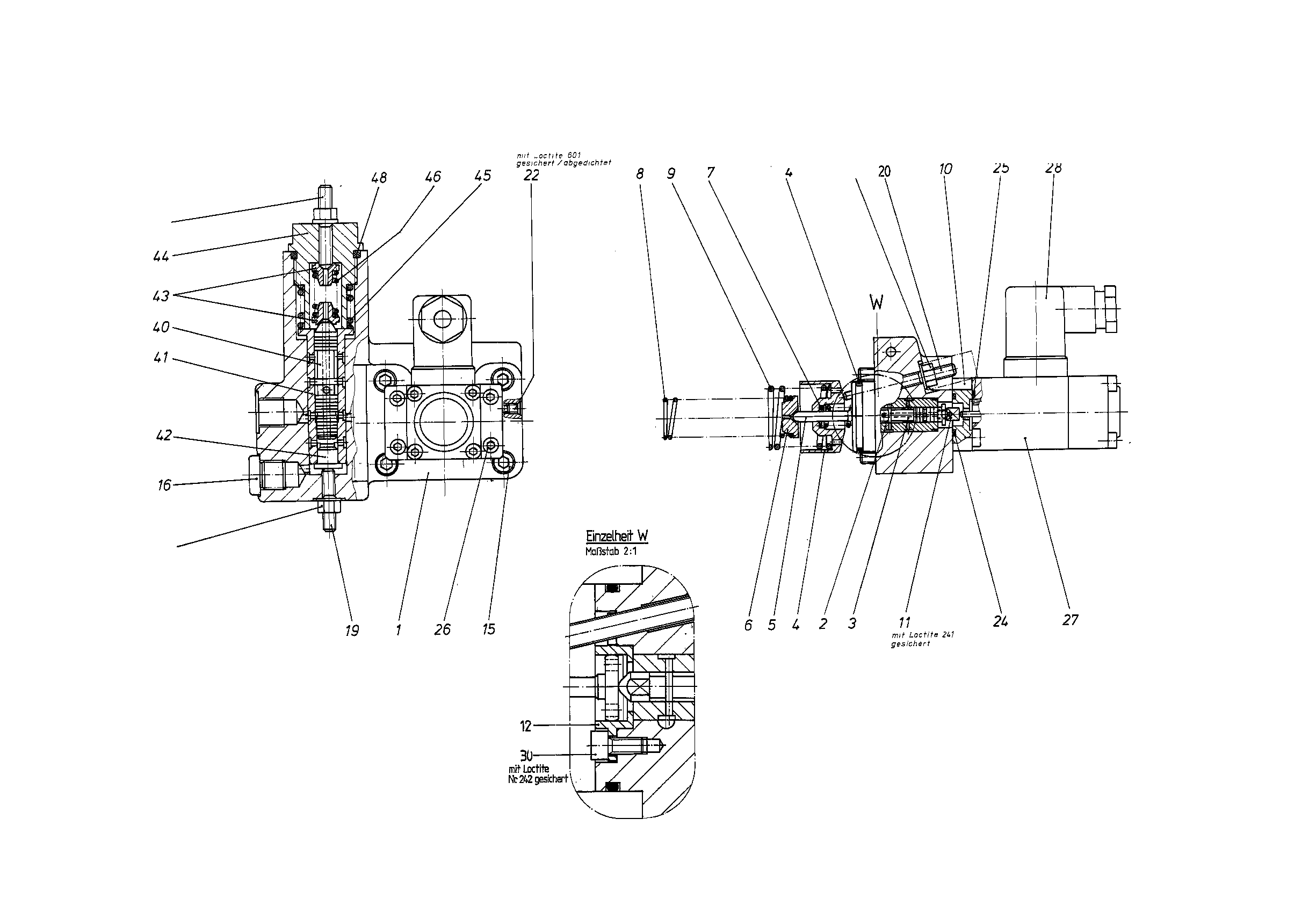

CONTROL PARTR910921907
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910801770 | CONTROL HOUSING | 1 | ||
| 2 | R909412246 | CONTROL SLEEVE | 1 | |
| 3 | R909412266 | CONTROL PISTON | 1 | |
| 4 | R910801595 | ADJUSTING BUSHING | 1 | |
| R909418761 | SPRING BOLT | 1 | ||
| 6 | R910801587 | SPRING DISK | 1 | |
| R910801625 | COMPRESSION SPRING | 1 | ||
| R910801789 | COMPRESSION SPRING | 1 | ||
| R910801627 | COMPRESSION SPRING | 1 | ||
| R910801605 | INTERMEDIATE PLATE | 1 | ||
| 11 | R910801584 | STOP SCREW | 1 | |
| 12 | R910924892 | STOP BUSHING | 1 | |
| 14 | R910513571 | O-RINGD | 1 | |
| 15 | R910109509 | SOCKET HEAD CAP SCREW | 4 | |
| R909151979 | SCREW PLUGD | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R910545422 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 3 | ||
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 4 | |
| R910514993 | O-RINGD | 1 | ||
| 25 | R910575046 | O-RINGD | 1 | |
| R910120111 | SOCKET HEAD CAP SCREW | 4 | ||
| R910803236 | PROPORTIONAL SOLENOID Stückliste der Baugruppe →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R910119512 | SOCKET HEAD CAP SCREW | 4 | ||
| R902248587 | CONTROL PISTON | 1 | ||
| 41 | R902248524 | CONTROL SLEEVE | 1 | |
| R909419893 | BOLT | 1 | ||
| 43 | R909075975 | SPRING DISK | 2 | |
| R910801804 | SCREW PLUG | 1 | ||
| R909414209 | COMPRESSION SPRING | 1 | ||
| R909420239 | COMPRESSION SPRING | 1 | ||
| 47 | R909154865 | SETSCREW | 1 | |
| R910959081 | O-RINGD | 1 |
