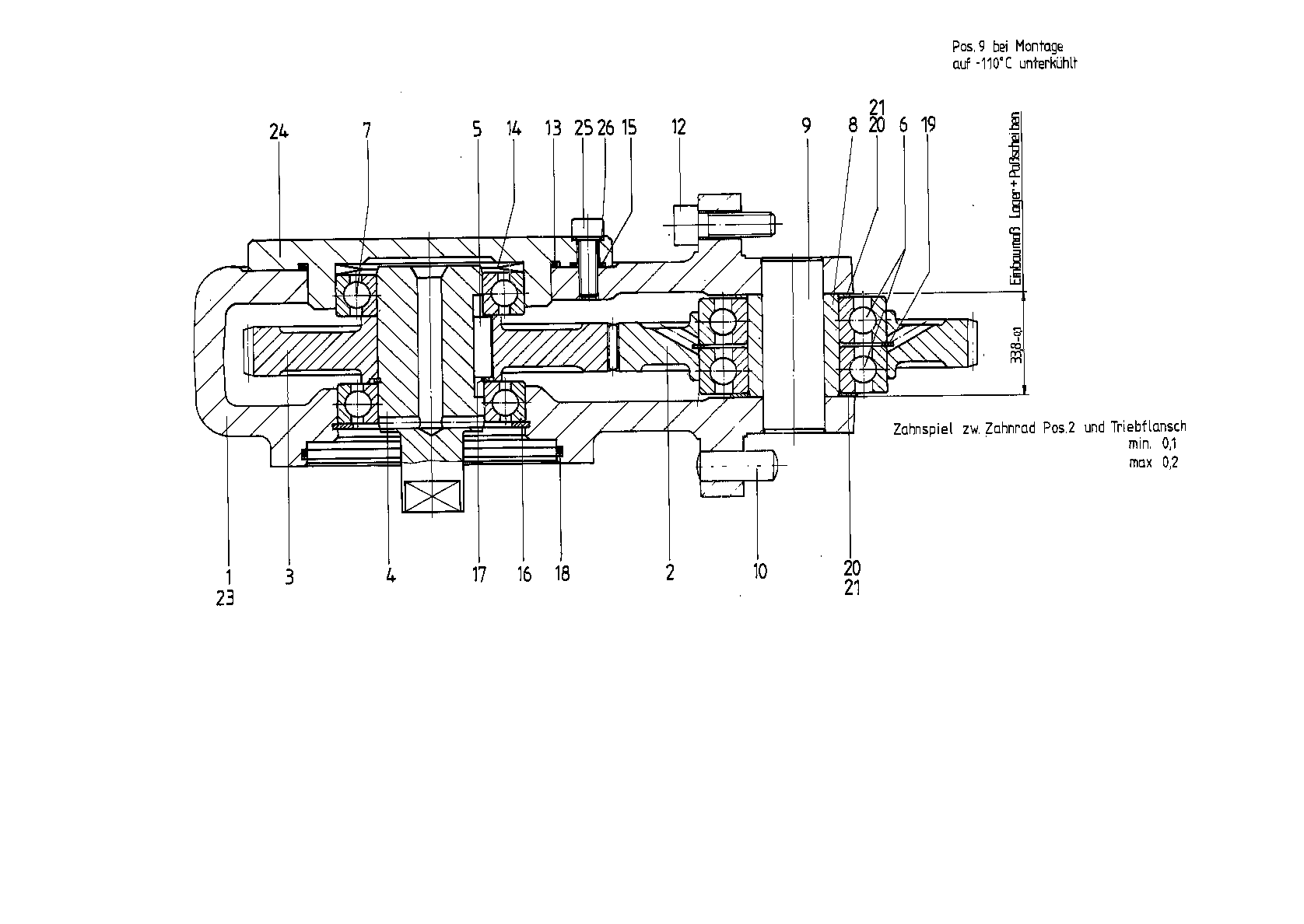

Baugruppe
DRIVER910926291
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910742627 | GEAR HOUSING | 1 | |
| R910742724 | TOOTHED WHEEL | 1 | ||
| 3 | R910627305 | TOOTHED WHEEL | 1 | |
| 4 | R910695521 | SHAFT | 1 | |
| 5 | R910627291 | PARALLEL KEY | 1 | |
| 6 | R910926287 | DEEP-GROOVE BALL BEARING | 2 | |
| 7 | R910080969 | DEEP-GROOVE BALL BEARING | 2 | |
| 8 | R910925337 | SLEEVE | 1 | |
| 9 | R910944800 | STRAIGHT PIN | 1 | |
| R910186341 | STRAIGHT PIN | 2 | ||
| R910109479 | SOCKET HEAD CAP SCREW | 5 | ||
| 13 | R910514292 | O-RINGD | 1 | |
| 14 | R910917916 | RING | 2 | |
| 15 | R910203246 | O-RINGD | 3 | |
| 16 | R910106038 | RETAINING RING | 1 | |
| 17 | R910116327 | SNAP RING | 1 | |
| 18 | R910470503 | O-RINGD | 1 | |
| 19 | R910926309 | SNAP RING | 1 | |
| R910122793 | SHIM RING | 2 | ||
| R910122807 | SHIM RING | 2 | ||
| R909153930 | SCREW PLUG | 2 | ||
| 24 | R910917919 | BEARING COVER | 1 | |
| 25 | R910109304 | SOCKET HEAD CAP SCREW | 3 | |
| 26 | R910107891 | BONDED SEAL RINGD | 3 |
