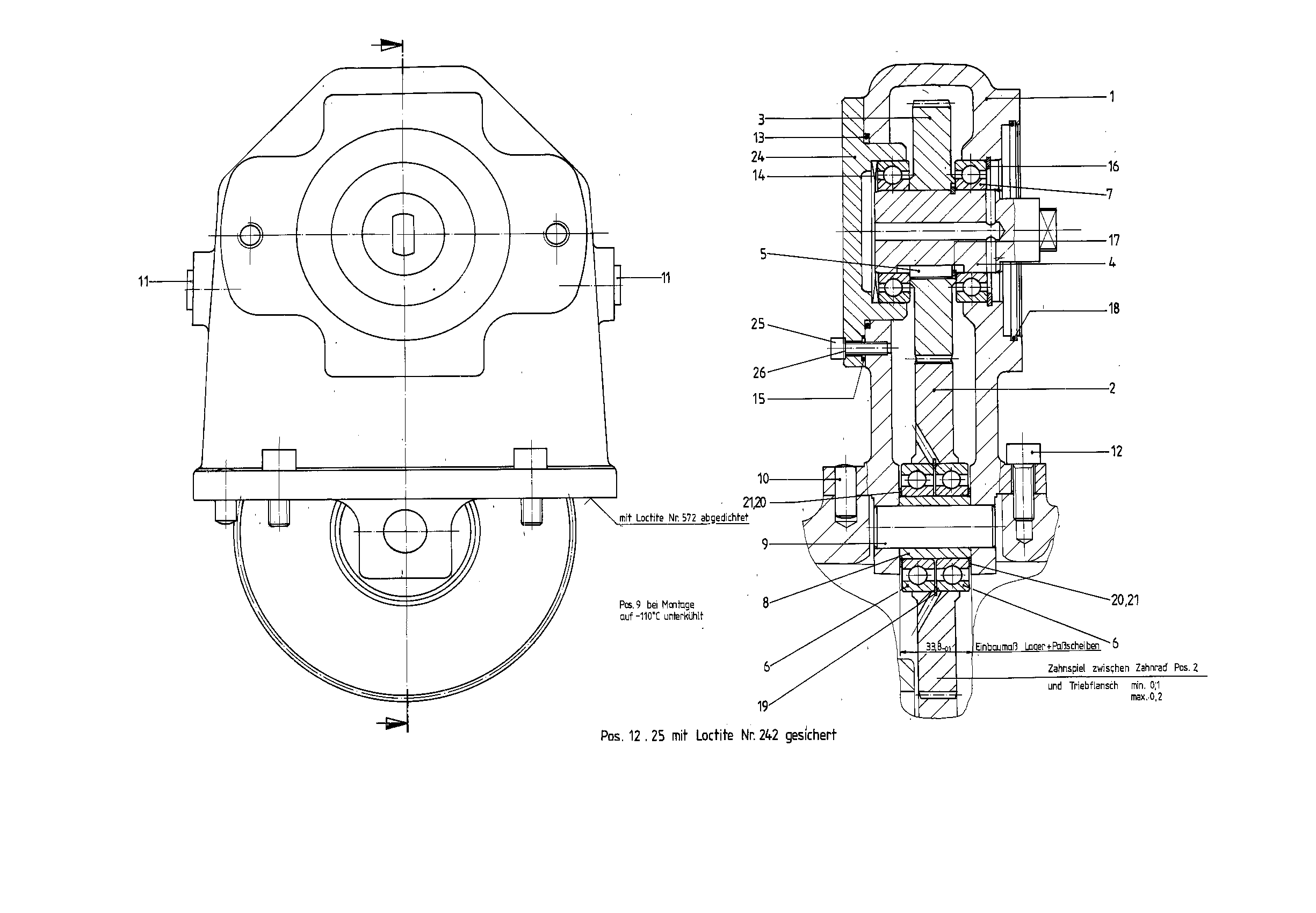

Baugruppe
DRIVER910926292
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910742635 | GEAR HOUSING | 1 | |
| R910742759 | TOOTHED WHEEL | 1 | ||
| 3 | R910603473 | TOOTHED WHEEL | 1 | |
| R910693553 | SHAFT | 1 | ||
| 5 | R910603597 | PARALLEL KEY | 1 | |
| 6 | R910926287 | DEEP-GROOVE BALL BEARING | 2 | |
| R910926288 | DEEP-GROOVE BALL BEARING | 2 | ||
| R910925337 | SLEEVE | 1 | ||
| R910944800 | STRAIGHT PIN | 1 | ||
| R910186341 | STRAIGHT PIN | 2 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| 12 | R910109614 | SOCKET HEAD CAP SCREW | 5 | |
| 13 | R910523925 | O-RINGD | 1 | |
| 14 | R910912502 | RING | 2 | |
| R910203246 | O-RINGD | 3 | ||
| 16 | R910125318 | RETAINING RING | 1 | |
| 17 | R910603538 | SNAP RING | 1 | |
| 18 | R910905441 | O-RINGD | 1 | |
| 19 | R910926309 | SNAP RING | 1 | |
| R910122793 | SHIM RING | 2 | ||
| R910126241 | SHIM RING | 2 | ||
| 24 | R910913393 | BEARING COVER | 1 | |
| R910109304 | SOCKET HEAD CAP SCREW | 3 | ||
| R910107891 | BONDED SEAL RINGD | 3 |
