Baugruppe

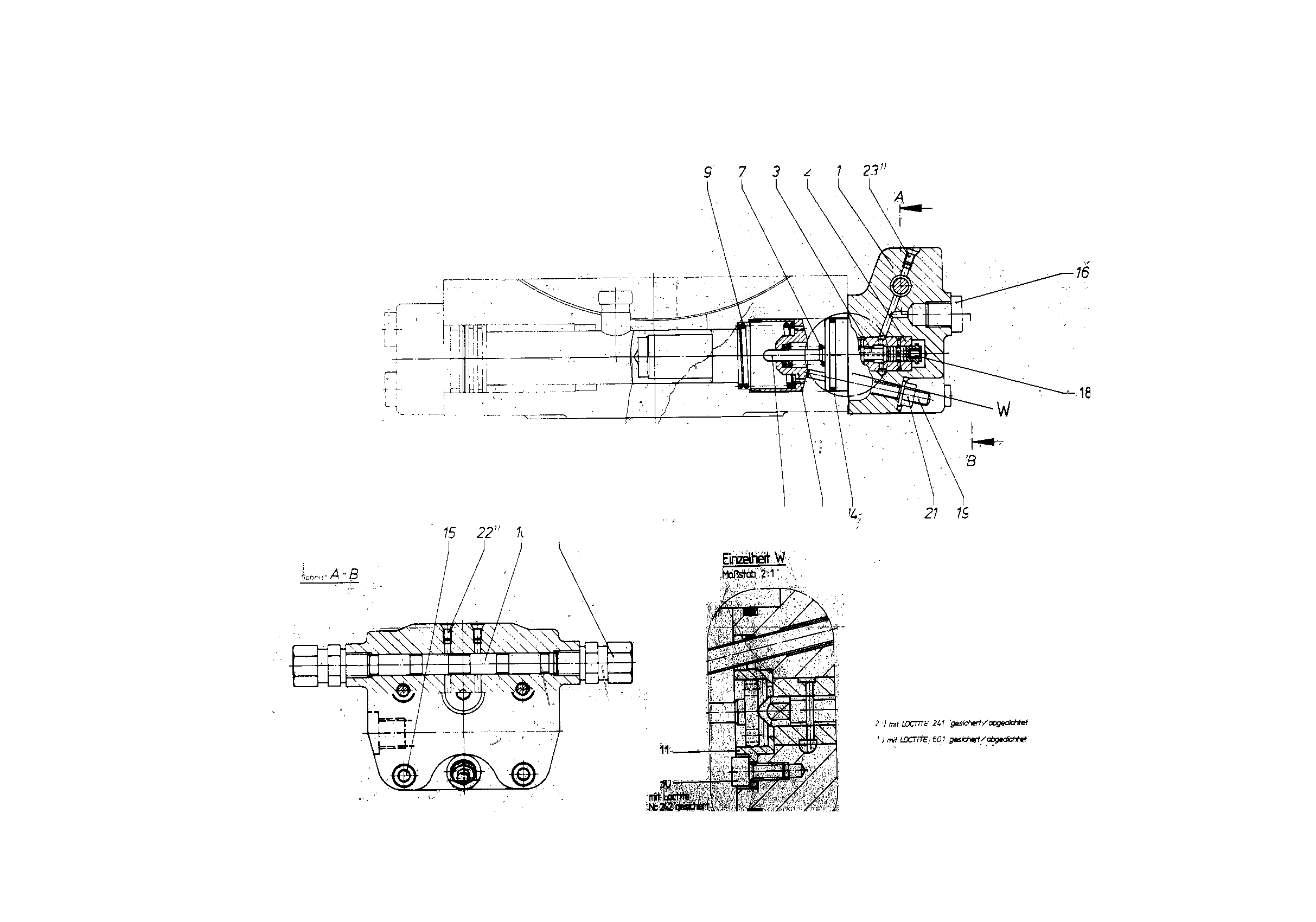

CONTROL PARTR910926367
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910917688 | CONTROL HOUSING | 1 | |
| 2 | R909420570 | CONTROL SLEEVE | 1 | |
| 3 | R910801802 | CONTROL PISTON | 1 | |
| 4 | R910801595 | ADJUSTING BUSHING | 1 | |
| 5 | R909418761 | SPRING BOLT | 1 | |
| 7 | R910801590 | COMPRESSION SPRING | 1 | |
| 9 | R910801627 | COMPRESSION SPRING | 1 | |
| 10 | R910801580 | SLIDE | 1 | |
| 11 | R910924892 | STOP BUSHING | 1 | |
| 12 | R910801870 | THREADED REDUCING STUD | 2 | |
| R910513571 | O-RINGD | 1 | ||
| 15 | R910109525 | SOCKET HEAD CAP SCREW | 4 | |
| R909153371 | SCREW PLUGD | 1 | ||
| R909083488 | SETSCREW | 1 | ||
| 19 | R910801451 | SETSCREW | 1 | |
| 21 | R909152425 | SEALING NUTD | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 6 | |
| 23 | R900078091 | DOUBLE BREAK-OFF PLUG | 1 | |
| 30 | R910119512 | SOCKET HEAD CAP SCREW | 4 |
