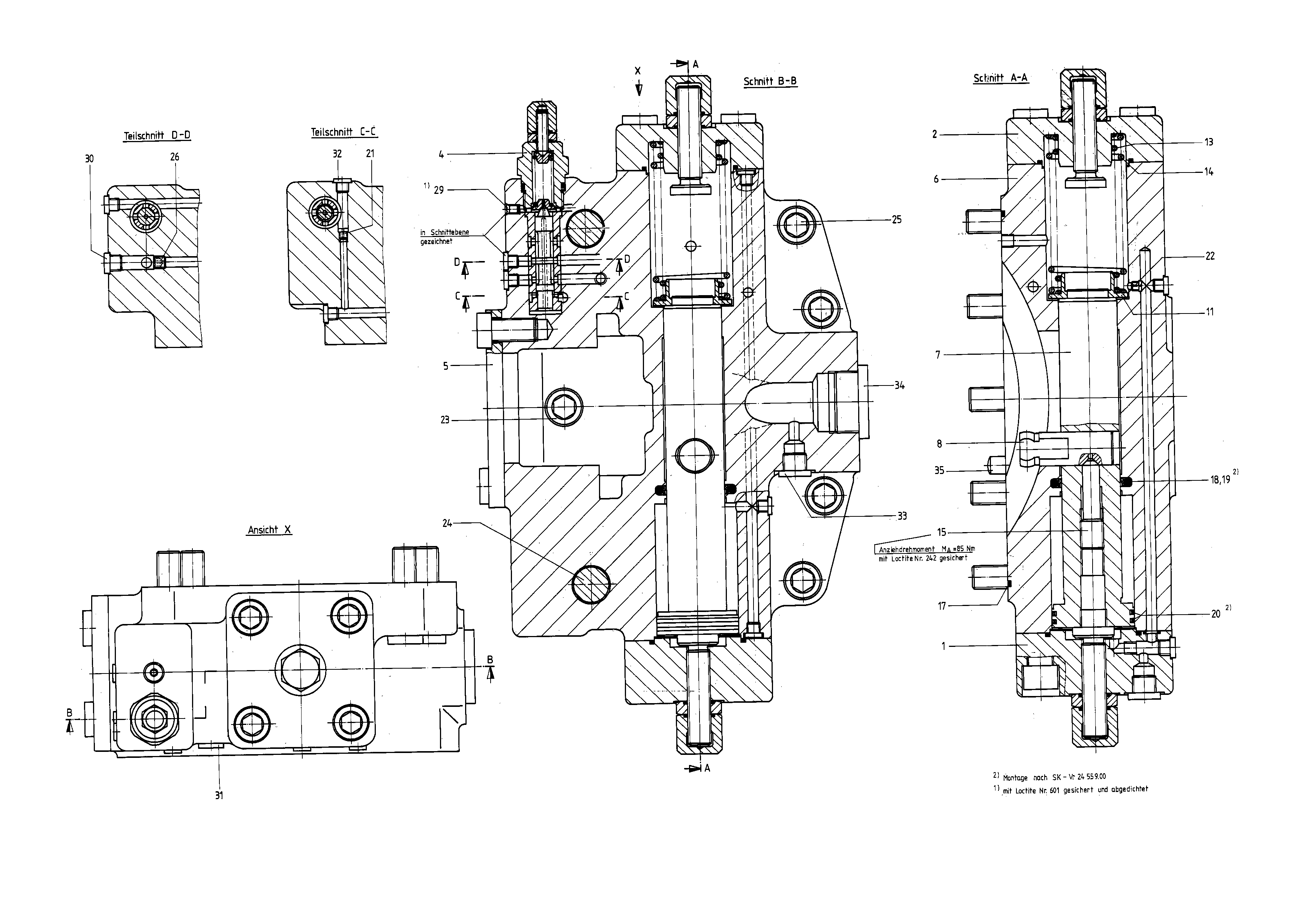

Baugruppe
CONTROLR910926455
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910912089 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910912088 | COVER Stückliste der Baugruppe →L | 1 | ||
| R902533145 | VALVE INSERT | 1 | ||
| R910918561 | BLANK FLANGE Stückliste der Baugruppe →L | 1 | ||
| R910926456 | COVER PLATE | 1 | ||
| R910909481 | POSITIONING PISTON | 1 | ||
| R902413803 | POSITIONING STUD | 1 | ||
| R910909485 | SPRING DISK | 1 | ||
| R910909214 | COMPRESSION SPRING | 1 | ||
| R910909215 | COMPRESSION SPRING | 1 | ||
| R902475687 | SETSCREW | 1 | ||
| R910905253 | O-RINGD | 1 | ||
| R910907799 | ROD SEALD | 1 | ||
| R910514942 | O-RINGD | 1 | ||
| R910907604 | RECTANGULAR RINGD | 2 | ||
| R910836761 | NOZZLE | 1 | ||
| R910836761 | NOZZLE | 1 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 1 | ||
| R910802651 | SOCKET HEAD CAP SCREW | 2 | ||
| R910126411 | SOCKET HEAD CAP SCREW | 4 | ||
| R910571261 | THROTTLE SCREW | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 11 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R910514179 | STRAIGHT PIN | 2 |
